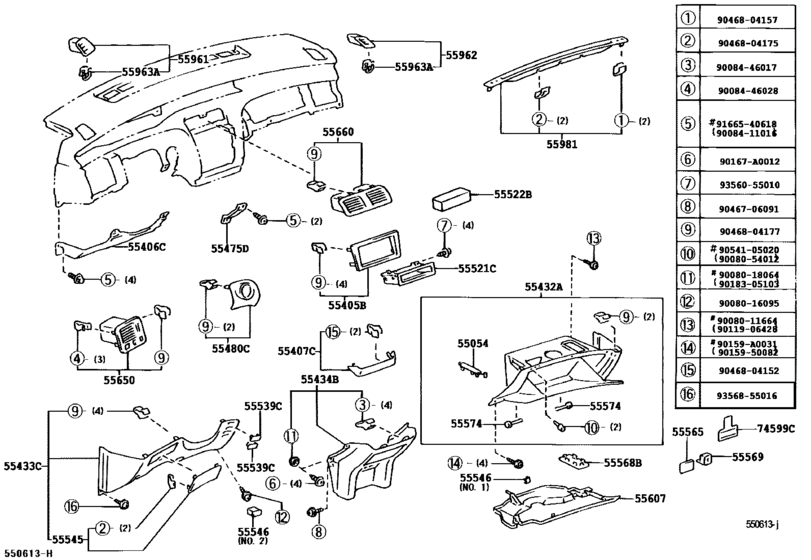

Instrument Panel & Glove Compartment ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-AC010
Stopper Sub-Assy, Glove Compartment Door
[08.1999 - 06.2002] MCX20 |
55054-AC010 |
— | ||
|
55405B
|
55405B
55405-AC060 Panel Sub-Assy, Instrument Cluster Finish, CenterINSTRUMENT CLUSTER FINISH, CENTER [08.1999 - 06.2002] MCX20..4FC..XLS..USA |
55405-AC060 |
US $90.27 |
||
| replacement | |||||
|
55405B
|
55405B
55405-AC050
Panel Sub-Assy, Instrument Cluster Finish, Center
[08.1999 - 06.2002] MCX20..4FC..XLS..USA |
55405-AC050 |
— | ||
|
55406C
|
55406C
55406-07010
Insert Sub-Assy, Instrument Panel, Lower Lh
[08.1999 - 06.2002] MCX20 |
55406-07010 |
— | ||
|
55432A
|
55432A
55303-AC010-A0
Panel, Instrument Panel Finish, Lower Rh
[08.1999 - 04.2002] MCX20 IVORY,TRIM0# |
55303-AC010-A0 |
— | ||
|
55432A
|
55432A
55303-AC010-B0
Panel, Instrument Panel Finish, Lower Rh
[08.1999 - 04.2002] MCX20 STONE,TRIM1# |
55303-AC010-B0 |
— | ||
|
55432A
|
55432A
55303-AC010-E0
Panel, Instrument Panel Finish, Lower Rh
[08.1999 - 04.2002] MCX20 FAWN,TRIM4# |
55303-AC010-E0 |
— | ||
|
55432A
|
55432A
55303-AC011-A0
Panel, Instrument Panel Finish, Lower Rh
[04.2002 - 06.2002] MCX20 IVORY,TRIM0# |
55303-AC011-A0 |
— | ||
|
55432A
|
55432A
55303-AC011-B0
Panel, Instrument Panel Finish, Lower Rh
[04.2002 - 06.2002] MCX20 STONE,TRIM1# |
55303-AC011-B0 |
— | ||
|
55432A
|
55432A
55303-AC011-E0
Panel, Instrument Panel Finish, Lower Rh
[04.2002 - 06.2002] MCX20 FAWN,TRIM4# |
55303-AC011-E0 |
— | ||
|
55433C
|
55433C
55302-AC010-A0
Panel, Instrument Panel Finish, Lower Lh
[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55302-AC010-A0 |
— | ||
|
55433C
|
55433C
55302-AC010-B0
Panel, Instrument Panel Finish, Lower Lh
[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55302-AC010-B0 |
— | ||
|
55433C
|
55433C
55302-AC010-E0
Panel, Instrument Panel Finish, Lower Lh
[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55302-AC010-E0 |
— | ||
|
55475D
|
55475D
55475-07010
Retainer, Instrument Panel Finish Panel, No.6
[08.1999 - 06.2002] MCX20 |
55475-07010 |
— | ||
|
55480C
|
55480C
55480-AC040-A0
Key Bezel
[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55480-AC040-A0 |
— | ||
|
55480C
|
55480C
55480-AC040-B0
Key Bezel
[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55480-AC040-B0 |
— | ||
|
55480C
|
55480C
55480-AC040-E0
Key Bezel
[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55480-AC040-E0 |
— | ||
|
55521C
|
55521C
55520-AA010
Cover, Stereo Opening
[08.1999 - 06.2002] MCX20..4FC..XLS..USA |
55520-AA010 |
— | ||
|
55522B
|
55522B
55522-33010 Seal, Quarter Panel[08.1999 - 06.2002] MCX20..4FC..XLS..USA |
55522-33010 |
US $4.22 |
||
| replacement | |||||
|
55522B
|
55522B
61824-12100 Seal, Quarter Panel[08.1999 - 06.2002] MCX20..4FC..XLS..USA |
61824-12100 |
US $24.75 |
||
|
55539C
|
55539C
55539-20080-A0 Cover, Spare Switch Hole[06.2002 - 01.2005] MCX20 IVORY,TRIM0# |
55539-20080-A0 |
US $5.82 |
||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole (BLACK)[06.2002 - 01.2005] MCX20 IVORY,TRIM0# |
55539-32010-C0 |
from US $3.35 |
||
|
55539C
|
55539C
55539-20080-B4 Cover, Spare Switch HoleSPARE SWITCH HOLE [06.2002 - 01.2005] MCX20 STONE,TRIM1# |
55539-20080-B4 |
US $5.82 |
||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole (BLACK)[06.2002 - 01.2005] MCX20 STONE,TRIM1# |
55539-32010-C0 |
from US $3.35 |
||
|
55539C
|
55539C
55539-20080-E3 Cover, Spare Switch Hole[06.2002 - 01.2005] MCX20 FAWN,TRIM4# |
55539-20080-E3 |
US $5.82 |
||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole (BLACK)[06.2002 - 01.2005] MCX20 FAWN,TRIM4# |
55539-32010-C0 |
from US $3.35 |
||
|
55545
|
55545
55540-AC010-A0
Cover, Fuse Box Opening
[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55540-AC010-A0 |
— | ||
|
55545
|
55545
55540-AC010-B0
Cover, Fuse Box Opening
[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55540-AC010-B0 |
— | ||
|
55545
|
55545
55540-AC010-E0
Cover, Fuse Box Opening
[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55540-AC010-E0 |
— | ||
|
55565
|
55565
55565-22020-A1 Handle, Glove Compartment Door Lock[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55565-22020-A1 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55565-22020-C0 |
— | ||
|
55565
|
55565
55565-22020-B6 Handle, Glove Compartment Door Lock[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55565-22020-B6 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55565-22020-C0 |
— | ||
|
55565
|
55565
55565-22020-E7 Handle, Glove Compartment Door Lock[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55565-22020-E7 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55565-22020-C0 |
— | ||
|
55568B
|
55568B
55568-AC010 Plate, Glove Compartment Door Finish[08.1999 - 06.2002] MCX20 |
55568-AC010 |
US $14.71 |
||
|
55569
|
55569
55569-22030-A1 Cover, Glove Compartment Door Lock[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55569-22030-A1 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55569-22030-C0 |
— | ||
|
55569
|
55569
55569-22030-B6 Cover, Glove Compartment Door Lock[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55569-22030-B6 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55569-22030-C0 |
— | ||
|
55569
|
55569
55569-22030-E7 Cover, Glove Compartment Door Lock[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55569-22030-E7 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55569-22030-C0 |
— | ||
|
55574
|
55574
55574-01010 Shaft, Glove Compartment Door Hinge[08.1999 - 06.2002] MCX20 |
55574-01010 |
US $3.20 |
||
|
55607
|
55607
55607-AC030
Cover Sub-Assy, Instrument Panel Under, No.2
[08.1999 - 06.2002] MCX20 |
55607-AC030 |
— | ||
|
55650
|
55650
55650-AC010-A0
Register Assy, Instrument Panel, No.1
[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
55650-AC010-A0 |
— | ||
|
55650
|
55650
55650-AC010-B0
Register Assy, Instrument Panel, No.1
[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
55650-AC010-B0 |
— | ||
|
55650
|
55650
55650-AC010-E0
Register Assy, Instrument Panel, No.1
[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
55650-AC010-E0 |
— | ||
|
55660
|
55660
55660-AC020 Register Assy, Instrument Panel, No.2[08.1999 - 06.2002] MCX20..XLS |
55660-AC020 |
US $147.06 |
||
|
55961
|
55961
55961-AC030-B0 Nozzle, Side Defroster, No.1SIDE DEFROSTER, NO.1 [08.1999 - 06.2002] MCX20 DK.STONE,TRIM1# |
55961-AC030-B0 |
US $27.37 |
||
|
55961
|
55961
55961-AC030-E0 Nozzle, Side Defroster, No.1[08.1999 - 06.2002] MCX20 SANDAL WOOD,TRIM0#,4# |
55961-AC030-E0 |
US $27.37 |
||
|
55962
|
55962
55962-AC030-B0 Nozzle, Side Defroster, No.2SIDE DEFROSTER, NO.2 [08.1999 - 06.2002] MCX20 DK.STONE,TRIM1# |
55962-AC030-B0 |
US $27.37 |
||
|
55962
|
55962
55962-AC030-E0 Nozzle, Side Defroster, No.2[08.1999 - 06.2002] MCX20 SANDAL WOOD,TRIM0#,4# |
55962-AC030-E0 |
US $27.37 |
||
|
55963A
|
55963A
55963-33020 Retainer, Side Defroster[08.1999 - 05.2000] MCX20 |
55963-33020 |
US $1.75 |
||
|
55963A
|
55963A
90468-04175 Retainer, Side Defroster[05.2000 - 06.2002] MCX20 |
90468-04175 |
US $0.58 |
||
|
55981
|
55981
55981-AC020
Garnish, Defroster Nozzle, No.1
[08.1999 - 06.2002] MCX20..XLS |
55981-AC020 |
— | ||
|
74599C
|
74599C
74599-06010
Label, Driver & Passenger Air Bag Caution
[08.1999 - 06.2002] MCX20..USA |
74599-06010 |
— | ||
|
90159A0031
|
90159A0031
90159-A0031
New Genuine Part
|
90159-A0031 |
— | ||
|
90167A0012
|
90167A0012
90167-A0012
New Genuine Part
|
90167-A0012 |
— | ||
|
9008011664
|
9008011664
90080-11664
New Genuine Part
|
90080-11664 |
— | ||
|
9008016095
|
9008016095
90080-16095
New Genuine Part
|
90080-16095 |
— | ||
|
9008018064
|
9008018064
90080-18064
New Genuine Part
|
90080-18064 |
— | ||
| replacement | |||||
|
9008018064
|
9008018064
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9008054012
|
9008054012
90080-54012
Cushion(For Glove Compartment Door)
|
90080-54012 |
— | ||
|
9008411016
|
9008411016
90084-11016
New Genuine Part
|
90084-11016 |
— | ||
|
9008446017
|
9008446017
90084-46017 Clip(For Roof Console Box) |
90084-46017 |
US $0.35 |
||
|
9008446028
|
9008446028
90084-46028 New Genuine Part |
90084-46028 |
US $1.46 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.28 |
||
|
9015950082
|
9015950082
90159-50082 New Genuine Part |
90159-50082 |
US $2.08 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046706091
|
9046706091
90467-06091 Clip(For Front Floor Carpet) |
90467-06091 |
US $1.44 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.92 |
||
|
9046804175
|
9046804175
90468-04175 Retainer, Side Defroster |
90468-04175 |
US $0.58 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $0.87 |
||
|
9166540618
|
9166540618
91665-40618
New Genuine Part
|
91665-40618 |
— | ||
| replacement | |||||
|
9166540618
|
9166540618
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9356055010
|
9356055010
93560-55010 Screw(For Mat Set Plate) |
93560-55010 |
US $0.96 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
