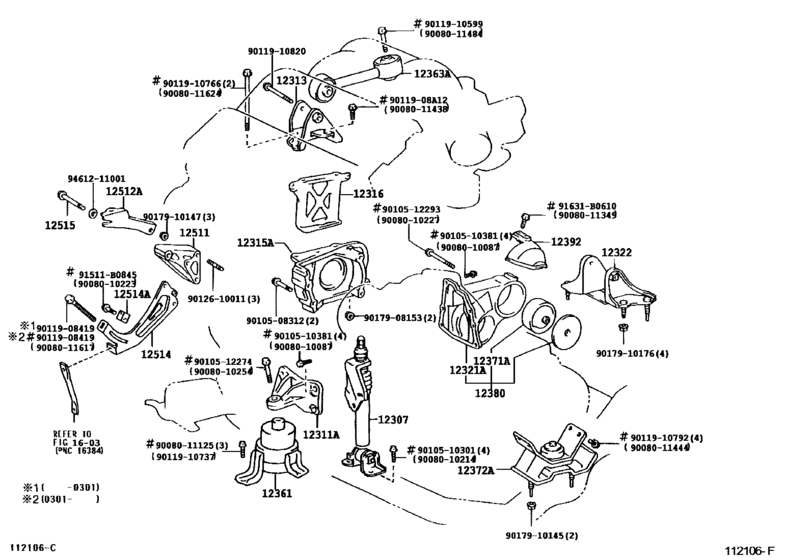

Mounting ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12307
|
12307
12307-20021 Absorber Sub-Assy, Engine Mounting[08.1999 - 06.2002] 1MZFE..MCX20 |
12307-20021 |
from US $126.93 |
||
|
12311A
|
12311A
12311-0A020
Bracket, Engine Mounting, Front(For Transverse Engine)
[08.1999 - 06.2002] 1MZFE..MCX20 |
12311-0A020 |
— | ||
|
12313
|
12313
12313-0A030 Bracket, Engine Mounting Control(For Transverse Engine)[08.1999 - 06.2002] 1MZFE..MCX20 |
12313-0A030 |
US $16.16 |
||
|
12315A
|
12315A
12315-0A010
Bracket, Engine Mounting, Rh(For Transverse Engine)
[08.1999 - 06.2002] 1MZFE..MCX20 |
12315-0A010 |
— | ||
|
12316
|
12316
12316-0A021 Bracket, Engine Mounting, No.2 Rh[08.1999 - 08.2000] 1MZFE..MCX20 |
12316-0A021 |
US $81.54 |
||
| replacement | |||||
|
12316
|
12316
12316-20020 Bracket, Engine Mounting, No.2 Rh[08.1999 - 08.2000] 1MZFE..MCX20 |
12316-20020 |
US $86.31 |
||
|
12316
|
12316
12316-0A022 Bracket, Engine Mounting, No.2 Rh[08.2000 - 06.2002] 1MZFE..MCX20 |
12316-0A022 |
US $81.54 |
||
| replacement | |||||
|
12316
|
12316
12316-20020 Bracket, Engine Mounting, No.2 Rh[08.2000 - 06.2002] 1MZFE..MCX20 |
12316-20020 |
US $86.31 |
||
|
12321A
|
12321A
12321-0A010
Bracket, Engine Mounting, Rear(For Transverse Engine)
[08.1999 - 06.2002] 1MZFE..MCX20 |
12321-0A010 |
— | ||
|
12322
|
12322
12322-0A030
Bracket, Engine Mounting, Rear No.2
[08.1999 - 06.2002] 1MZFE..MCX20 |
12322-0A030 |
— | ||
|
12361
|
12361
12361-0A050 Insulator, Engine Mounting, Front[08.1999 - 06.2002] 1MZFE..MCX20 |
12361-0A050 |
US $195.10 |
||
|
12363A
|
12363A
12363-0A050 Rod, Engine Moving Control[08.1999 - 06.2002] 1MZFE..MCX20 |
12363-0A050 |
from US $69.62 |
||
|
12371A
|
12371A
12371-0A030 Insulator, Engine Mounting, Rear[08.1999 - 06.2002] 1MZFE..MCX20 |
12371-0A030 |
from US $91.73 |
||
|
12372A
|
12372A
12372-0A020
Insulator, Engine Mounting, Lh(For Transverse Engine)
[08.1999 - 06.2002] 1MZFE..MCX20 |
12372-0A020 |
— | ||
|
12380
|
12380
12380-0A040 Insulator Assy, Engine Mounting, Rear[08.1999 - 06.2002] 1MZFE..MCX20 |
12380-0A040 |
US $294.11 |
||
|
12392
|
12392
12392-0A010
Insulator, Engine Mounting Heat, Front Lh
[08.1999 - 06.2002] 1MZFE..MCX20 |
12392-0A010 |
— | ||
|
12511
|
12511
12511-20020 Bracket, Alternator, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
12511-20020 |
US $163.07 |
||
|
12512A
|
12512A
12512-20010 Bracket, Alternator, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
12512-20010 |
US $16.45 |
||
|
12514
|
12514
12514-0A010
Bar, Alternator Belt Adjusting
[08.1999 - 06.2002] 1MZFE..MCX20 |
12514-0A010 |
— | ||
|
12514A
|
12514A
16385-20010 Slider, Fan Belt Adjusting[08.1999 - 06.2002] 1MZFE..MCX20 |
16385-20010 |
US $12.23 |
||
|
12515
|
12515
12515-0A010
Bolt, Alternator Through
[08.1999 - 06.2002] 1MZFE..MCX20 |
12515-0A010 |
— | ||
| replacement | |||||
|
12515
|
12515
12515-20010 Bolt, Alternator Through[08.1999 - 06.2002] 1MZFE..MCX20 |
12515-20010 |
US $7.69 |
||
|
91511B0845
|
91511B0845
91511-B0845 Bolt |
91511-B0845 |
US $3.04 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9011908A12
|
9011908A12
90119-08A12 New Genuine Part |
90119-08A12 |
US $1.28 |
||
|
9008010087
|
9008010087
90080-10087
Bolt(For Drive Shaft Bearring Bracket Setting No.2)
|
90080-10087 |
— | ||
|
9008010214
|
9008010214
90080-10214
New Genuine Part
|
90080-10214 |
— | ||
|
9008010223
|
9008010223
90080-10223 New Genuine Part |
90080-10223 |
US $1.31 |
||
|
9008010227
|
9008010227
90080-10227 New Genuine Part |
90080-10227 |
US $4.08 |
||
|
9008010254
|
9008010254
90080-10254
New Genuine Part
|
90080-10254 |
— | ||
|
9008011125
|
9008011125
90080-11125 New Genuine Part |
90080-11125 |
US $1.31 |
||
|
9008011349
|
9008011349
90080-11349
New Genuine Part
|
90080-11349 |
— | ||
|
9008011438
|
9008011438
90080-11438
New Genuine Part
|
90080-11438 |
— | ||
|
9008011444
|
9008011444
90080-11444
New Genuine Part
|
90080-11444 |
— | ||
|
9008011484
|
9008011484
90080-11484
New Genuine Part
|
90080-11484 |
— | ||
|
9008011617
|
9008011617
90080-11617
New Genuine Part
|
90080-11617 |
— | ||
|
9008011624
|
9008011624
90080-11624
New Genuine Part
|
90080-11624 |
— | ||
|
9010508312
|
9010508312
90105-08312 BOLT WASHER BASED |
90105-08312 |
US $1.40 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510381
|
9010510381
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
90105-10381 |
US $1.60 |
||
|
9010512274
|
9010512274
90105-12274 BOLTWASHER BASED |
90105-12274 |
from US $1.66 |
||
|
9010512293
|
9010512293
90105-12293 Bolt, Hexagon(For Front Disc Brake Caliper) |
90105-12293 |
US $6.84 |
||
| replacement | |||||
|
9010512293
|
9010512293
90105-12331 Bolt, Hexagon(For Front Disc Brake Caliper) |
90105-12331 |
US $8.80 |
||
|
9011908419
|
9011908419
90119-08419 BOLT |
90119-08419 |
US $4.48 |
||
|
9011910599
|
9011910599
90119-10599 BOLT WWASHER |
90119-10599 |
US $3.79 |
||
|
9011910737
|
9011910737
90119-10737
New Genuine Part
|
90119-10737 |
— | ||
|
9011910766
|
9011910766
90119-10766 BOLT WWASHER |
90119-10766 |
from US $4.23 |
||
|
9011910792
|
9011910792
90119-10792 BOLT WWASHER |
90119-10792 |
US $1.60 |
||
|
9011910820
|
9011910820
90119-10820 BOLT WWASHER |
90119-10820 |
from US $1.89 |
||
|
9012610011
|
9012610011
90126-10011 New Genuine Part |
90126-10011 |
US $9.17 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910145
|
9017910145
90179-10145 Nut(For Front Suspension Support) |
90179-10145 |
US $2.62 |
||
|
9017910147
|
9017910147
90179-10147 New Genuine Part |
90179-10147 |
US $2.33 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.40 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
