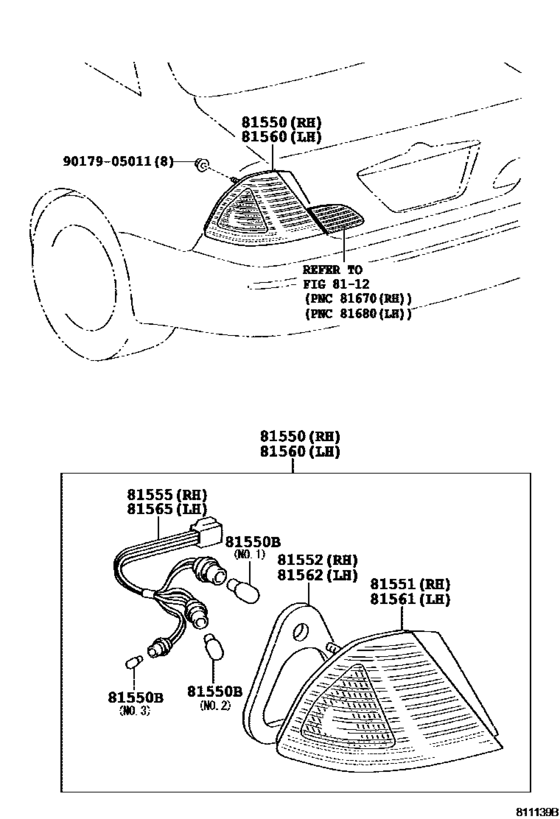

Rear Combination Lamp ([08.1999 - 06.2002] (9908-0206)) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-AC050
Lamp Assy, Rear Combination, Rh
[08.1999 - 06.2002] MCX20 |
81550-AC050 |
— | ||
|
81550
|
81550
81550-AC070
Lamp Assy, Rear Combination, Rh
[06.2002 - 01.2005] MCX20 |
81550-AC070 |
— | ||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[06.2002 - 01.2005] MCX20 12V 16W |
90981-11059 |
from US $3.20 |
||
|
81550B
|
81550B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[08.1999 - 06.2002] MCX20 12V 5W,NO.3 |
90981-12010 |
from US $1.76 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[06.2002 - 01.2005] MCX20 12V 21/5W,NO.1 |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-13050
Bulb, Cornering Lamp
[08.1999 - 06.2002] MCX20 12V 21W,NO.2 |
90981-13050 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[08.1999 - 06.2002] MCX20 12V 21W,NO.2 |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13051
Bulb(For Rear Combination Lamp)
[08.1999 - 06.2002] MCX20 12V 21/5W,NO.1 |
90981-13051 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.1999 - 06.2002] MCX20 12V 21/5W,NO.1 |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[06.2002 - 01.2005] MCX20 12V 21W,AMBER,NO.2 |
90981-15011 |
from US $4.60 |
||
|
81551
|
81551
81551-AC050 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1999 - 06.2002] MCX20 |
81551-AC050 |
US $219.34 |
||
|
81552
|
81552
81552-07030 Gasket, Rear Combination Lamp Lens, Rh[06.2002 - 01.2005] MCX20 |
81552-07030 |
US $13.83 |
||
|
81552
|
81552
81552-AC050
Gasket, Rear Combination Lamp Lens, Rh
[08.1999 - 06.2002] MCX20 |
81552-AC050 |
— | ||
|
81555
|
81555
81555-07030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[06.2002 - 01.2005] MCX20 |
81555-07030 |
— | ||
|
81555
|
81555
81555-AC050
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1999 - 06.2002] MCX20 |
81555-AC050 |
— | ||
|
81560
|
81560
81560-AC050
Lamp Assy, Rear Combination, Lh
[08.1999 - 06.2002] MCX20 |
81560-AC050 |
— | ||
|
81560
|
81560
81560-AC070
Lamp Assy, Rear Combination, Lh
[06.2002 - 01.2005] MCX20 |
81560-AC070 |
— | ||
|
81561
|
81561
81561-AC050
Lens, Rear Combination Lamp, Lh
[08.1999 - 06.2002] MCX20 |
81561-AC050 |
— | ||
|
81562
|
81562
81552-AC050
Gasket, Rear Combination Lamp Lens, Rh
[08.1999 - 06.2002] MCX20 |
81552-AC050 |
— | ||
|
81562
|
81562
81562-07030
Gasket, Rear Combination Lamp Lens, Lh
[06.2002 - 01.2005] MCX20 |
81562-07030 |
— | ||
|
81565
|
81565
81555-07030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[06.2002 - 01.2005] MCX20 |
81555-07030 |
— | ||
|
81565
|
81565
81555-AC050
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1999 - 06.2002] MCX20 |
81555-AC050 |
— | ||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
