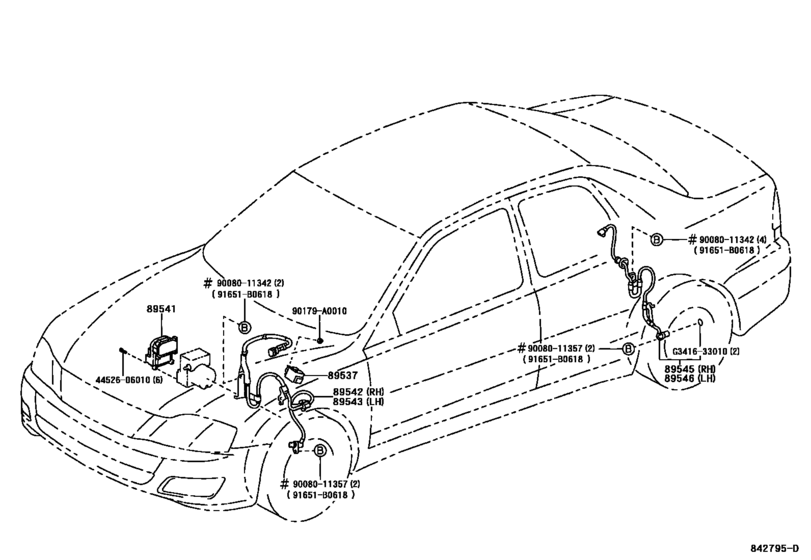

Abs & Vsc ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89537
|
89537
89537-41020
Relay, Active Lamp
[08.1999 - 06.2002] MCX20 |
89537-41020 |
— | ||
|
89541
|
89541
89541-07020
Computer, Skid Control
[08.1999 - 06.2002] MCX20 |
89541-07020 |
— | ||
|
89542
|
89542
89542-07010
Sensor, Speed, Front Rh
[08.1999 - 06.2002] MCX20 |
89542-07010 |
— | ||
|
89543
|
89543
89543-07010
Sensor, Speed, Front Lh
[08.1999 - 06.2002] MCX20 |
89543-07010 |
— | ||
|
89545
|
89545
89545-33020 Sensor, Speed, Rear, Rh[08.1999 - 06.2002] MCX20 |
89545-33020 |
US $292.66 |
||
|
89546
|
89546
89546-33020 Sensor, Speed, Rear, Lh[08.1999 - 06.2002] MCX20 |
89546-33020 |
from US $208.26 |
||
|
90179A0010
|
90179A0010
90179-A0010 Nut, Rear Wiper Link Pivot, No.1 |
90179-A0010 |
US $1.16 |
||
| replacement | |||||
|
90179A0010
|
90179A0010
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
4452606010
|
4452606010
44526-06010
Seat, G Valve
|
44526-06010 |
— | ||
|
9008011342
|
9008011342
90080-11342
New Genuine Part
|
90080-11342 |
— | ||
|
9008011357
|
9008011357
90080-11357
New Genuine Part
|
90080-11357 |
— | ||
|
G341633010
|
G341633010
G3416-33010 New Genuine Part |
G3416-33010 |
US $1.31 |
||
