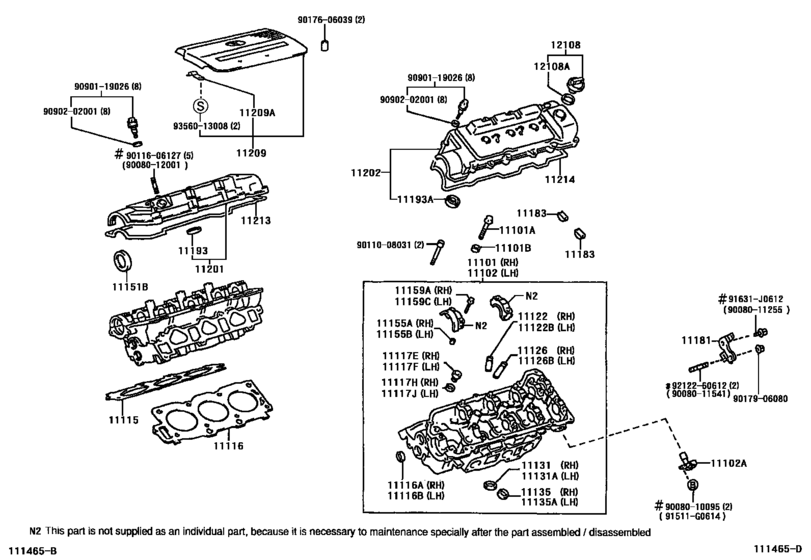

Cylinder Head ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09074
Head Sub-Assy, Cylinder
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
11101-09074 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-09075
Head Sub-Assy, Cylinder
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
11101-09075 |
— | ||
|
11101
|
11101
11101-29409 Head Sub-Assy, Cylinder[10.2001 - 06.2002] 1MZFE..MCX20 (J) |
11101-29409 |
US $1,994.72 |
||
| replacement | |||||
|
11101
|
11101
11101-29410 Head Sub-Assy, CylinderCYLINDER [10.2001 - 06.2002] 1MZFE..MCX20 (J) |
11101-29410 |
US $1,994.72 |
||
|
11101
|
11101
11101-29410 Head Sub-Assy, CylinderCYLINDER [01.2003 - 12.2003] 1MZFE..MCX20 (J) |
11101-29410 |
US $1,994.72 |
||
|
11101
|
11101
11101-29417 Head Sub-Assy, CylinderCYLINDER [08.1999 - 12.1999] 1MZFE..MCX20 |
11101-29417 |
US $1,994.72 |
||
| replacement | |||||
|
11101
|
11101
11101-29418 Head Sub-Assy, CylinderCYLINDER [08.1999 - 12.1999] 1MZFE..MCX20 |
11101-29418 |
US $1,994.72 |
||
|
11101
|
11101
11101-29418 Head Sub-Assy, CylinderCYLINDER [12.1999 - 10.2001] 1MZFE..MCX20 |
11101-29418 |
US $1,994.72 |
||
|
11101A
|
11101A
90910-02117 Bolt(For Cylinder Head Set)[08.1999 - 06.2002] 1MZFE..MCX20 |
90910-02117 |
from US $6.40 |
||
|
11101B
|
11101B
90201-11031 Washer, Plate(For Cylinder Head Set)[08.1999 - 06.2002] 1MZFE..MCX20 |
90201-11031 |
US $4.32 |
||
|
11102
|
11102
11102-09013
Head, Cylinder, Lh
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
11102-09013 |
— | ||
| replacement | |||||
|
11102
|
11102
11102-09014
Head, Cylinder, Lh
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
11102-09014 |
— | ||
|
11102
|
11102
11102-29039 Head, Cylinder, Lh[10.2001 - 06.2002] 1MZFE..MCX20 (J) |
11102-29039 |
US $1,994.72 |
||
| replacement | |||||
|
11102
|
11102
11102-29040 Head, Cylinder, LhCYLINDER, LH [10.2001 - 06.2002] 1MZFE..MCX20 (J) |
11102-29040 |
US $1,994.72 |
||
|
11102
|
11102
11102-29040 Head, Cylinder, LhCYLINDER, LH [01.2003 - 12.2003] 1MZFE..MCX20 (J) |
11102-29040 |
US $1,994.72 |
||
|
11102
|
11102
11102-29047 Head, Cylinder, LhCYLINDER, LH [08.1999 - 12.1999] 1MZFE..MCX20 |
11102-29047 |
US $1,994.72 |
||
| replacement | |||||
|
11102
|
11102
11102-29048 Head, Cylinder, LhCYLINDER, LH [08.1999 - 12.1999] 1MZFE..MCX20 |
11102-29048 |
US $1,994.72 |
||
|
11102
|
11102
11102-29048 Head, Cylinder, LhCYLINDER, LH [12.1999 - 10.2001] 1MZFE..MCX20 |
11102-29048 |
US $1,994.72 |
||
|
11102A
|
11102A
90080-19006
Sensor, Camshaft Position
[08.1999 - 12.1999] 1MZFE..MCX20 (L) |
90080-19006 |
— | ||
|
11102A
|
11102A
90919-05013 Sensor, Camshaft Position[08.1999 - 12.1999] 1MZFE..MCX20 (J) |
90919-05013 |
US $93.18 |
||
|
11115
|
11115
11115-20010 Gasket, Cylinder Head[08.1999 - 01.2000] 1MZFE..MCX20 |
11115-20010 |
from US $49.61 |
||
|
11115
|
11115
11115-20040 Gasket, Cylinder Head[01.2000 - 06.2002] 1MZFE..MCX20 |
11115-20040 |
US $70.47 |
||
| replacement | |||||
|
11115
|
11115
11115-20042 Gasket, Cylinder HeadCYLINDER HEAD [01.2000 - 06.2002] 1MZFE..MCX20 |
11115-20042 |
from US $47.97 |
||
|
11115
|
11115
11115-20041 Gasket, Cylinder HeadCYLINDER HEAD [04.2003 - 08.2004] 1MZFE..MCX20 |
11115-20041 |
US $70.62 |
||
| replacement | |||||
|
11115
|
11115
11115-20042 Gasket, Cylinder HeadCYLINDER HEAD [04.2003 - 08.2004] 1MZFE..MCX20 |
11115-20042 |
from US $47.97 |
||
|
11115
|
11115
11115-20042 Gasket, Cylinder HeadCYLINDER HEAD [08.2004 - 01.2005] 1MZFE..MCX20 |
11115-20042 |
from US $47.97 |
||
|
11116
|
11116
11116-20010 Gasket, Cylinder Head, No.2[08.1999 - 01.2000] 1MZFE..MCX20 |
11116-20010 |
from US $49.63 |
||
|
11116
|
11116
11116-20040 Gasket, Cylinder Head, No.2[01.2000 - 06.2002] 1MZFE..MCX20 |
11116-20040 |
US $70.47 |
||
| replacement | |||||
|
11116
|
11116
11116-20042 Gasket, Cylinder Head, No.2CYLINDER HEAD, NO.2 [01.2000 - 06.2002] 1MZFE..MCX20 |
11116-20042 |
from US $47.70 |
||
|
11116
|
11116
11116-20041 Gasket, Cylinder Head, No.2CYLINDER HEAD, NO.2 [04.2003 - 08.2004] 1MZFE..MCX20 |
11116-20041 |
US $70.62 |
||
| replacement | |||||
|
11116
|
11116
11116-20042 Gasket, Cylinder Head, No.2CYLINDER HEAD, NO.2 [04.2003 - 08.2004] 1MZFE..MCX20 |
11116-20042 |
from US $47.70 |
||
|
11116
|
11116
11116-20042 Gasket, Cylinder Head, No.2CYLINDER HEAD, NO.2 [08.2004 - 01.2005] 1MZFE..MCX20 |
11116-20042 |
from US $47.70 |
||
|
11116A
|
11116A
96411-63000 Plug, Tight[08.1999 - 06.2002] 1MZFE..MCX20 |
96411-63000 |
from US $3.36 |
||
|
11116B
|
11116B
96411-63000 Plug, Tight[08.1999 - 06.2002] 1MZFE..MCX20 |
96411-63000 |
from US $3.36 |
||
|
11117E
|
11117E
90341-24013 Plug, W/head Taper Screw, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
90341-24013 |
US $5.53 |
||
| replacement | |||||
|
11117E
|
11117E
90341-24011 Plug, W/head Taper Screw, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
90341-24011 |
US $3.84 |
||
|
11117F
|
11117F
90341-24013 Plug, W/head Taper Screw, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
90341-24013 |
US $5.53 |
||
| replacement | |||||
|
11117F
|
11117F
90341-24011 Plug, W/head Taper Screw, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
90341-24011 |
US $3.84 |
||
|
11117H
|
11117H
90430-24246 Gasket(For Cylinder Head Screw Plug)[08.1999 - 06.2002] 1MZFE..MCX20 |
90430-24246 |
from US $1.09 |
||
|
11117J
|
11117J
90430-24246 Gasket(For Cylinder Head Screw Plug)[08.1999 - 06.2002] 1MZFE..MCX20 |
90430-24246 |
from US $1.09 |
||
|
11122
|
11122
11122-20020
Bush, Intake Valve Guide
[08.1999 - 06.2002] 1MZFE..MCX20 STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [08.1999 - 06.2002] 1MZFE..MCX20 STD |
11122-22040 |
from US $8.46 |
||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[08.1999 - 06.2002] 1MZFE..MCX20 O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11122B
|
11122B
11122-20020
Bush, Intake Valve Guide
[08.1999 - 06.2002] 1MZFE..MCX20 STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122B
|
11122B
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [08.1999 - 06.2002] 1MZFE..MCX20 STD |
11122-22040 |
from US $8.46 |
||
|
11122B
|
11122B
11123-20020 Bush, Intake Valve Guide[08.1999 - 06.2002] 1MZFE..MCX20 O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[08.1999 - 06.2002] 1MZFE..MCX20 STD |
11126-20020 |
from US $6.81 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[08.1999 - 06.2002] 1MZFE..MCX20 O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11126B
|
11126B
11126-20020 Bush, Exhaust Valve Guide[08.1999 - 06.2002] 1MZFE..MCX20 STD |
11126-20020 |
from US $6.81 |
||
|
11126B
|
11126B
11127-20020 Bush, Exhaust Valve Guide[08.1999 - 06.2002] 1MZFE..MCX20 O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11131
|
11131
11131-62030 Seat, Intake Valve[10.2001 - 06.2002] 1MZFE..MCX20 STD |
11131-62030 |
US $16.45 |
||
|
11131
|
11131
11131-62040 Seat, Intake ValveINTAKE VALVE [08.1999 - 10.2001] 1MZFE..MCX20 STD |
11131-62040 |
US $16.60 |
||
|
11131
|
11131
11131-62050 Seat, Intake Valve[01.2003 - 01.2005] 1MZFE..MCX20 STD |
11131-62050 |
US $13.83 |
||
|
11131
|
11131
11132-62030 Seat, Intake Valve[10.2001 - 06.2002] 1MZFE..MCX20 O/S 0.03 |
11132-62030 |
US $16.45 |
||
|
11131
|
11131
11132-62040 Seat, Intake ValveINTAKE VALVE [08.1999 - 10.2001] 1MZFE..MCX20 O/S 0.03 |
11132-62040 |
US $16.60 |
||
|
11131
|
11131
11132-62050 Seat, Intake Valve[01.2003 - 01.2005] 1MZFE..MCX20 O/S 0.03 |
11132-62050 |
US $13.83 |
||
|
11131A
|
11131A
11131-62030 Seat, Intake Valve[10.2001 - 06.2002] 1MZFE..MCX20 STD |
11131-62030 |
US $16.45 |
||
|
11131A
|
11131A
11131-62040 Seat, Intake ValveINTAKE VALVE [08.1999 - 10.2001] 1MZFE..MCX20 STD |
11131-62040 |
US $16.60 |
||
|
11131A
|
11131A
11131-62050 Seat, Intake Valve[01.2003 - 01.2005] 1MZFE..MCX20 STD |
11131-62050 |
US $13.83 |
||
|
11131A
|
11131A
11132-62030 Seat, Intake Valve[10.2001 - 06.2002] 1MZFE..MCX20 O/S 0.03 |
11132-62030 |
US $16.45 |
||
|
11131A
|
11131A
11132-62040 Seat, Intake ValveINTAKE VALVE [08.1999 - 10.2001] 1MZFE..MCX20 O/S 0.03 |
11132-62040 |
US $16.60 |
||
|
11131A
|
11131A
11132-62050 Seat, Intake Valve[01.2003 - 01.2005] 1MZFE..MCX20 O/S 0.03 |
11132-62050 |
US $13.83 |
||
|
11135
|
11135
11135-20040 Seat, Exhaust Valve[10.2001 - 06.2002] 1MZFE..MCX20 STD |
11135-20040 |
US $13.83 |
||
|
11135
|
11135
11135-62050 Seat, Exhaust ValveEXHAUST VALVE [08.1999 - 10.2001] 1MZFE..MCX20 STD |
11135-62050 |
from US $9.54 |
||
|
11135
|
11135
11136-20040
Seat, Exhaust Valve
[10.2001 - 06.2002] 1MZFE..MCX20 O/S 0.03 |
11136-20040 |
— | ||
|
11135
|
11135
11136-62050 Seat, Exhaust ValveEXHAUST VALVE [08.1999 - 10.2001] 1MZFE..MCX20 O/S 0.03 |
11136-62050 |
US $16.60 |
||
|
11135A
|
11135A
11135-20040 Seat, Exhaust Valve[10.2001 - 06.2002] 1MZFE..MCX20 STD |
11135-20040 |
US $13.83 |
||
|
11135A
|
11135A
11135-62050 Seat, Exhaust ValveEXHAUST VALVE [08.1999 - 10.2001] 1MZFE..MCX20 STD |
11135-62050 |
from US $9.54 |
||
|
11135A
|
11135A
11136-20040
Seat, Exhaust Valve
[10.2001 - 06.2002] 1MZFE..MCX20 O/S 0.03 |
11136-20040 |
— | ||
|
11135A
|
11135A
11136-62050 Seat, Exhaust ValveEXHAUST VALVE [08.1999 - 10.2001] 1MZFE..MCX20 O/S 0.03 |
11136-62050 |
US $16.60 |
||
|
11151B
|
11151B
90080-31035
Seal, Oil(For Camshaft Setting)
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
90080-31035 |
— | ||
|
11151B
|
11151B
90311-38034 Seal, Oil(For Camshaft Setting)[06.2003 -] 1MZFE..MCX20 (J) |
90311-38034 |
from US $5.12 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.1999 - 06.2002] 1MZFE..MCX20 |
90253-10004 |
US $1.92 |
||
|
11155B
|
11155B
90253-10004 Pin, Ring W/head[08.1999 - 06.2002] 1MZFE..MCX20 |
90253-10004 |
US $1.92 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[08.1999 - 06.2002] 1MZFE..MCX20 |
90119-07009 |
from US $0.86 |
||
|
11159C
|
11159C
90119-07009 Bolt(For Camshaft Housing Set)[08.1999 - 06.2002] 1MZFE..MCX20 |
90119-07009 |
from US $0.86 |
||
|
11181
|
11181
11181-0A011 Plate, Cylinder Head, Rear[08.1999 - 06.2002] 1MZFE..MCX20 |
11181-0A011 |
US $5.39 |
||
|
11181
|
11181
11181-20030 Plate, Cylinder Head, Rear[08.2003 -] 1MZFE..MCX20 (J) |
11181-20030 |
US $5.68 |
||
|
11183
|
11183
11183-0A010
Plug, Semicircular
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11183-0A010 |
— | ||
|
11183
|
11183
11183-20010 Plug, Semicircular[06.2003 -] 1MZFE..MCX20 (J) |
11183-20010 |
US $9.44 |
||
|
11193
|
11193
11193-0A010
Gasket, Spark Plug Tube
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11193-0A010 |
— | ||
| replacement | |||||
|
11193
|
11193
11193-70010 Gasket(For Spark Plug Tube)[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11193-70010 |
from US $2.38 |
||
|
11193
|
11193
11193-70010 Gasket(For Spark Plug Tube)[06.2003 - 11.2004] 1MZFE..MCX20 |
11193-70010 |
from US $2.38 |
||
|
11193A
|
11193A
11193-0A010
Gasket, Spark Plug Tube
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11193-0A010 |
— | ||
| replacement | |||||
|
11193A
|
11193A
11193-70010 Gasket(For Spark Plug Tube)[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11193-70010 |
from US $2.38 |
||
|
11193A
|
11193A
11193-70010 Gasket(For Spark Plug Tube)[06.2003 - 01.2005] 1MZFE..MCX20 |
11193-70010 |
from US $2.38 |
||
|
11201
|
11201
11201-0A011
Cover Sub-Assy, Cylinder Head
[08.1999 - 04.2002] 1MZFE..MCX20 |
11201-0A011 |
— | ||
| replacements | |||||
|
11201
|
11201
12204-20040 Valve Sub-Assy, Ventilation[08.1999 - 04.2002] 1MZFE..MCX20 |
12204-20040 |
from US $15.72 |
||
|
11201
|
11201
11201-20090 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [08.1999 - 04.2002] 1MZFE..MCX20 |
11201-20090 |
US $193.65 |
||
|
11201
|
11201
12261-20091 Hose, Ventilation[08.1999 - 04.2002] 1MZFE..MCX20 |
12261-20091 |
from US $9.88 |
||
|
11201
|
11201
90467-14017 Clip Or Clamp(For Ventilation Hose)[08.1999 - 04.2002] 1MZFE..MCX20 |
90467-14017 |
from US $1.35 |
||
|
11201
|
11201
11201-0A030 Cover Sub-Assy, Cylinder Head[04.2002 - 06.2002] 1MZFE..MCX20 (L) |
11201-0A030 |
US $179.09 |
||
| replacements | |||||
|
11201
|
11201
11201-20090 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [04.2002 - 06.2002] 1MZFE..MCX20 (L) |
11201-20090 |
US $193.65 |
||
|
11201
|
11201
12204-20040 Valve Sub-Assy, Ventilation[04.2002 - 06.2002] 1MZFE..MCX20 (L) |
12204-20040 |
from US $15.72 |
||
|
11201
|
11201
12261-20091 Hose, Ventilation[04.2002 - 06.2002] 1MZFE..MCX20 (L) |
12261-20091 |
from US $9.88 |
||
|
11201
|
11201
90467-14017 Clip Or Clamp(For Ventilation Hose)[04.2002 - 06.2002] 1MZFE..MCX20 (L) |
90467-14017 |
from US $1.35 |
||
|
11201
|
11201
11201-20070 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [06.2003 - 11.2004] 1MZFE..MCX20 |
11201-20070 |
US $179.09 |
||
| replacements | |||||
|
11201
|
11201
12261-20091 Hose, Ventilation[06.2003 - 11.2004] 1MZFE..MCX20 |
12261-20091 |
from US $9.88 |
||
|
11201
|
11201
11201-20090 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [06.2003 - 11.2004] 1MZFE..MCX20 |
11201-20090 |
US $193.65 |
||
|
11201
|
11201
11201-20090 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [11.2004 -] 1MZFE..MCX20 |
11201-20090 |
US $193.65 |
||
|
11202
|
11202
11202-0A021 Cover Sub-Assy, Cylinder Head, Lh[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11202-0A021 |
US $179.09 |
||
| replacements | |||||
|
11202
|
11202
11202-20031
Cover Sub-Assy, Cylinder Head, Lh
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
11202-20031 |
— | ||
|
11202
|
11202
12204-20020 Valve Sub-Assy, Ventilation[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
12204-20020 |
from US $21.72 |
||
|
11202
|
11202
11202-20031
Cover Sub-Assy, Cylinder Head, Lh
[06.2003 - 01.2005] 1MZFE..MCX20 (J) |
11202-20031 |
— | ||
|
11209
|
11209
11209-0A020
Cover Sub-Assy, V-Bank
[08.1999 - 06.2002] 1MZFE..MCX20 |
11209-0A020 |
— | ||
|
11209A
|
11209A
17578-20010 Clamp, Pipe[08.1999 - 06.2002] 1MZFE..MCX20 |
17578-20010 |
US $2.18 |
||
|
11213
|
11213
11213-20020 Gasket, Cylinder Head Cover[08.1999 - 06.2002] 1MZFE..MCX20 |
11213-20020 |
from US $18.15 |
||
|
11214
|
11214
11214-20010 Gasket, Cylinder Head Cover, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
11214-20010 |
from US $18.53 |
||
|
12108
|
12108
12180-20030 Cap Sub-Assy, Oil Filler[08.1999 - 06.2002] 1MZFE..MCX20 |
12180-20030 |
from US $15.37 |
||
|
12108A
|
12108A
12195-20020 Gasket(For Oil Filler Cap)[08.1999 - 06.2002] 1MZFE..MCX20 |
12195-20020 |
from US $2.93 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.15 |
||
|
9008010095
|
9008010095
90080-10095
New Genuine Part
|
90080-10095 |
— | ||
|
9008011255
|
9008011255
90080-11255
New Genuine Part
|
90080-11255 |
— | ||
|
9008011541
|
9008011541
90080-11541
New Genuine Part
|
90080-11541 |
— | ||
|
9008012001
|
9008012001
90080-12001 New Genuine Part |
90080-12001 |
US $1.16 |
||
|
9011008031
|
9011008031
90110-08031 BOLT HEXAGON SOCKET |
90110-08031 |
from US $2.33 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9017606039
|
9017606039
90176-06039 NUT |
90176-06039 |
from US $1.23 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
US $1.60 |
||
|
9090119026
|
9090119026
90901-19026 BOLT WWASHER |
90901-19026 |
from US $3.04 |
||
|
9090202001
|
9090202001
90902-02001 WASHER PLATE |
90902-02001 |
from US $2.08 |
||
|
9212260612
|
9212260612
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
92122-60612 |
US $1.22 |
||
|
9356013008
|
9356013008
93560-13008 New Genuine Part |
93560-13008 |
US $2.72 |
||
