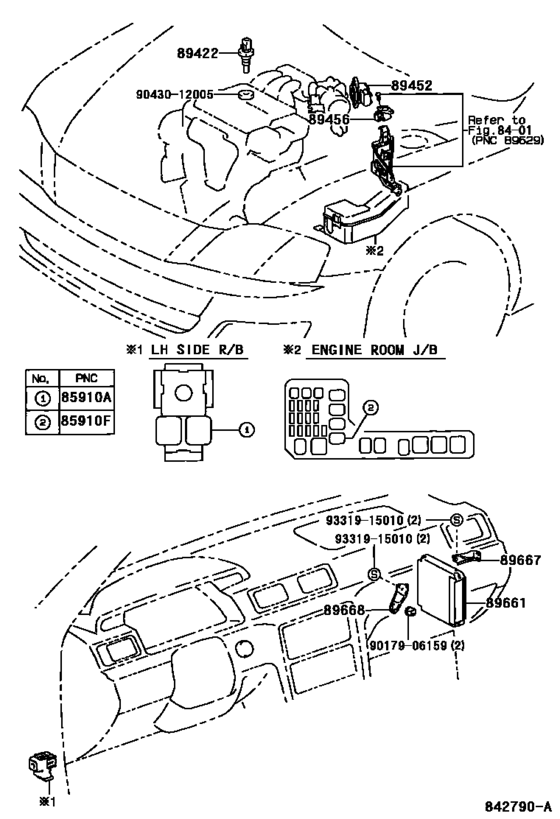

Electronic Fuel Injection System ([08.1999 - 01.2005] (9908-0501)) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90084-98031 Relay, Ignition, No.1[08.1999 - 06.2002] MCX20 PART NUMBER LABEL=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[08.1999 - 06.2002] MCX20 PART NUMBER LABEL=90987-02012 |
90987-02012 |
from US $27.11 |
||
|
85910F
|
85910F
90084-98031 Relay, Ignition, No.1[08.1999 - 06.2002] MCX20 PART NUMBER LABEL=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[08.1999 - 06.2002] MCX20 PART NUMBER LABEL=90987-02012 |
90987-02012 |
from US $27.11 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1999 - 06.2002] MCX20 |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-06020 Sensor, Throttle Position (For E.f.i.)[08.1999 - 06.2002] MCX20 (L) |
89452-06020 |
US $66.98 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[06.2002 - 01.2005] MCX20 |
89452-33030 |
from US $40.89 |
||
|
89456
|
89456
89456-30010 Resistor, VariableVARIABLE [08.1999 - 07.2001] MCX20 |
89456-30010 |
from US $93.18 |
||
|
89661
|
89661
89661-07290
Computer, Engine Control
[08.1999 - 08.2000] MCX20 |
89661-07290 |
— | ||
|
89661
|
89661
89661-07330
Computer, Engine Control
[08.2000 - 07.2001] MCX20 |
89661-07330 |
— | ||
|
89661
|
89661
89661-07360
Computer, Engine Control
[07.2001 - 06.2002] MCX20 |
89661-07360 |
— | ||
|
89661
|
89661
89661-07380
Computer, Engine Control
[06.2002 - 01.2005] MCX20 |
89661-07380 |
— | ||
|
89667
|
89667
89667-07060 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [08.1999 - 06.2002] MCX20 |
89667-07060 |
US $15.91 |
||
|
89668
|
89668
89668-07040
Bracket, Engine Control Computer, No.2
[08.1999 - 06.2002] MCX20 |
89668-07040 |
— | ||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
