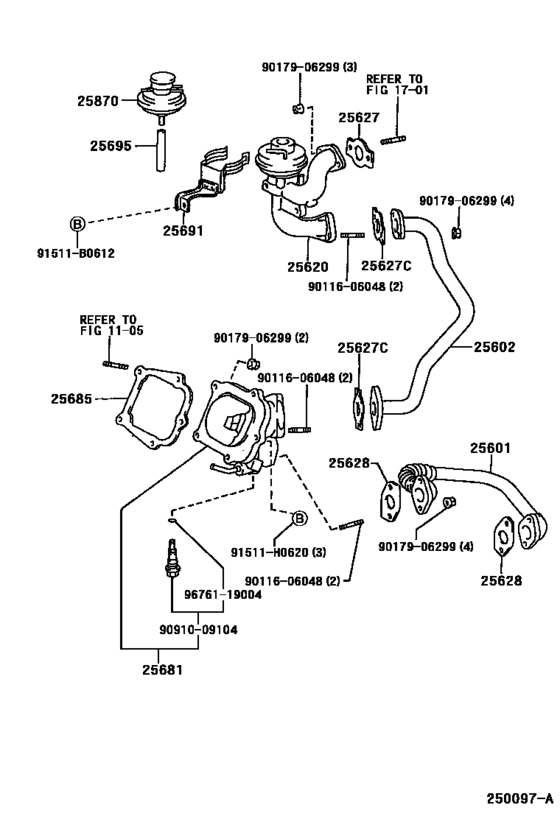

Exhaust Gas Recirculation System ([10.2001 - ] (0110- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-0A020
Pipe Sub-Assy, Egr, No.1
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
25611-0A020 |
— | ||
|
25601
|
25601
25611-20020 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [06.2003 -] 1MZFE..MCX20 |
25611-20020 |
US $90.27 |
||
|
25602
|
25602
25612-0A010
Pipe Sub-Assy, Egr, No.2
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
25612-0A010 |
— | ||
|
25602
|
25602
25612-20010
Pipe Sub-Assy, Egr, No.2
[06.2003 -] 1MZFE..MCX20 |
25612-20010 |
— | ||
|
25620
|
25620
25620-20030 Valve Assy, EgrEGR [10.2001 - 06.2002] 1MZFE..MCX20 |
25620-20030 |
US $262.08 |
||
|
25627
|
25627
25627-0A010
Gasket, Egr Valve
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
25627-0A010 |
— | ||
|
25627
|
25627
25627-20010 Gasket, Egr ValveEGR VALVE [06.2003 -] 1MZFE..MCX20 |
25627-20010 |
US $1.48 |
||
|
25627C
|
25627C
25627-0A010
Gasket, Egr Valve
[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
25627-0A010 |
— | ||
|
25627C
|
25627C
25627-20010 Gasket, Egr ValveEGR VALVE [06.2003 -] 1MZFE..MCX20 |
25627-20010 |
US $1.48 |
||
|
25628
|
25628
25628-0A010 Gasket, Egr Inlet[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
25628-0A010 |
US $5.68 |
||
|
25628
|
25628
25628-20010 Gasket, Egr Inlet[06.2003 -] 1MZFE..MCX20 |
25628-20010 |
from US $6.65 |
||
|
25681
|
25681
25681-20010
Cooler, Egr, No.1
[10.2001 - 06.2002] 1MZFE..MCX20 |
25681-20010 |
— | ||
|
25685
|
25685
25685-0A010 Gasket, E.g.r Cooler[10.2001 - 06.2002] 1MZFE..MCX20 (L) |
25685-0A010 |
US $11.36 |
||
|
25685
|
25685
25685-20010 Gasket, E.g.r Cooler[06.2003 -] 1MZFE..MCX20 |
25685-20010 |
US $19.04 |
||
|
25691
|
25691
25691-20010 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [10.2001 - 06.2002] 1MZFE..MCX20 |
25691-20010 |
US $6.99 |
||
|
25695
|
25695
25695-20010 Hose, Egr Vacuum ModulatorEGR VACUUM MODULATOR [10.2001 - 06.2002] 1MZFE..MCX20 |
25695-20010 |
US $16.89 |
||
|
25870
|
25870
25870-62020
Valve Assy, Egr Vacuum Modulator
[10.2001 - 06.2002] 1MZFE..MCX20 |
25870-62020 |
— | ||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $1.07 |
||
|
91511H0620
|
91511H0620
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.76 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.72 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9091009104
|
9091009104
90910-09104 Plug, Drain Cock(For Cylinder Block Side Cover ) |
90910-09104 |
US $12.23 |
||
|
9676119004
|
9676119004
96761-19004 Ring, O(For Water Inlet Union Drain Cock Plug) |
96761-19004 |
US $2.72 |
