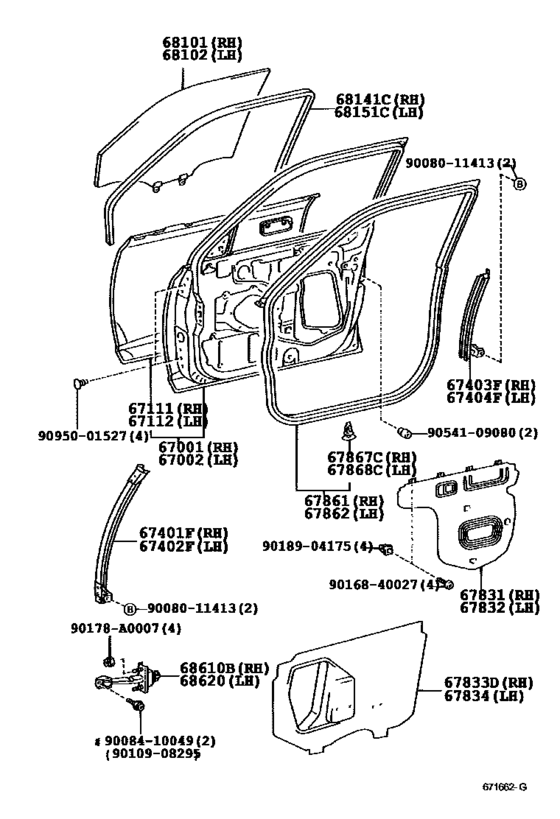

Front Door Panel & Glass ([08.1999 - ] DOOR PANEL (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-AC020 Panel Sub-Assy, Front Door, Rh[08.1999 - 06.2002] MCX20 |
67001-AC020 |
US $960.96 |
||
| replacement | |||||
|
67001
|
67001
67001-AC021 Panel Sub-Assy, Front Door, Rh[08.1999 - 06.2002] MCX20 |
67001-AC021 |
US $960.96 |
||
|
67001
|
67001
67001-AC021 Panel Sub-Assy, Front Door, Rh[05.2004 - 01.2005] MCX20 |
67001-AC021 |
US $960.96 |
||
|
67002
|
67002
67002-AC020 Panel Sub-Assy, Front Door, Lh[08.1999 - 06.2002] MCX20 |
67002-AC020 |
US $960.96 |
||
| replacement | |||||
|
67002
|
67002
67002-AC021 Panel Sub-Assy, Front Door, Lh[08.1999 - 06.2002] MCX20 |
67002-AC021 |
US $960.96 |
||
|
67002
|
67002
67002-AC021 Panel Sub-Assy, Front Door, Lh[05.2004 - 01.2005] MCX20 |
67002-AC021 |
US $960.96 |
||
|
67111
|
67111
67111-AC010 Panel, Front Door, Outer Rh[08.1999 - 06.2002] MCX20 |
67111-AC010 |
US $388.75 |
||
|
67112
|
67112
67112-AC010 Panel, Front Door, Outer Lh[08.1999 - 06.2002] MCX20 |
67112-AC010 |
US $388.75 |
||
|
67401F
|
67401F
67401-AC020 Frame Sub-Assy, Front Door, Front Lower Rh[08.1999 - 06.2002] MCX20 |
67401-AC020 |
US $17.47 |
||
|
67402F
|
67402F
67402-AC020 Frame Sub-Assy, Front Door, Front Lower Lh[08.1999 - 06.2002] MCX20 |
67402-AC020 |
US $17.47 |
||
|
67403F
|
67403F
67403-AC020 Frame Sub-Assy, Front Door, Rear Lower Rh[08.1999 - 06.2002] MCX20 |
67403-AC020 |
US $17.47 |
||
|
67404F
|
67404F
67404-AC020 Frame Sub-Assy, Front Door, Rear Lower Lh[08.1999 - 06.2002] MCX20 |
67404-AC020 |
US $17.47 |
||
|
67831
|
67831
67831-AC010 Cover, Front Door Service Hole, Rh[08.1999 - 06.2002] MCX20 |
67831-AC010 |
US $19.95 |
||
|
67832
|
67832
67832-AC010 Cover, Front Door Service Hole, Lh[08.1999 - 06.2002] MCX20 |
67832-AC010 |
US $19.95 |
||
|
67833D
|
67833D
67833-AC020 Cover, Front Door Service Hole, No.2 Rh[08.1999 - 06.2002] MCX20 |
67833-AC020 |
US $67.85 |
||
|
67834
|
67834
67834-AC010 Cover, Front Door Service Hole, No.2 Lh[08.1999 - 06.2002] MCX20 |
67834-AC010 |
US $67.85 |
||
|
67861
|
67861
67861-AC020 Weatherstrip, Front Door, Rh[08.1999 - 06.2002] MCX20 |
67861-AC020 |
US $99.01 |
||
|
67862
|
67862
67862-AC020 Weatherstrip, Front Door, Lh[08.1999 - 06.2002] MCX20 |
67862-AC020 |
US $99.01 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1999 - 06.2002] MCX20 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1999 - 06.2002] MCX20 |
67867-12150 |
from US $1.60 |
||
|
68101
|
68101
68101-AC040
Glass Sub-Assy, Front Door, Rh
[08.1999 - 06.2002] MCX20 *UVCT,T=4.8,GREEN |
68101-AC040 |
— | ||
|
68102
|
68102
68102-AC040 Glass Sub-Assy, Front Door, Lh[08.1999 - 06.2002] MCX20 *UVCT,T=4.8,GREEN |
68102-AC040 |
US $457.18 |
||
|
68141C
|
68141C
68141-AC020
Run, Front Door Glass, Rh
[08.1999 - 06.2002] MCX20 |
68141-AC020 |
— | ||
|
68151C
|
68151C
68151-AC020 Run, Front Door Glass, Lh[08.1999 - 06.2002] MCX20 |
68151-AC020 |
US $61.59 |
||
|
68610B
|
68610B
68610-AC010 Check Assy, Front Door, Rh[08.1999 - 12.2000] MCX20 |
68610-AC010 |
US $49.94 |
||
| replacement | |||||
|
68610B
|
68610B
68610-AC011 Check Assy, Front Door, Rh[08.1999 - 12.2000] MCX20 |
68610-AC011 |
US $49.80 |
||
|
68610B
|
68610B
68610-AC011 Check Assy, Front Door, Rh[12.2000 - 06.2002] MCX20 |
68610-AC011 |
US $49.80 |
||
|
68620
|
68620
68620-AC010 Check Assy, Front Door, Lh[08.1999 - 12.2000] MCX20 |
68620-AC010 |
US $49.94 |
||
| replacement | |||||
|
68620
|
68620
68620-AC011
Check Assy, Front Door, Lh
[08.1999 - 12.2000] MCX20 |
68620-AC011 |
— | ||
|
68620
|
68620
68620-AC011
Check Assy, Front Door, Lh
[12.2000 - 06.2002] MCX20 |
68620-AC011 |
— | ||
|
90178A0007
|
90178A0007
90178-A0007
New Genuine Part
|
90178-A0007 |
— | ||
|
9008011413
|
9008011413
90080-11413
New Genuine Part
|
90080-11413 |
— | ||
|
9008410049
|
9008410049
90084-10049
New Genuine Part
|
90084-10049 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.82 |
||
|
9016840027
|
9016840027
90168-40027 New Genuine Part |
90168-40027 |
from US $1.28 |
||
|
9018904175
|
9018904175
90189-04175 New Genuine Part |
90189-04175 |
US $2.08 |
||
|
9054109080
|
9054109080
90541-09080 Cushion(For Luggage Compartment Door Panel) |
90541-09080 |
from US $2.05 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
