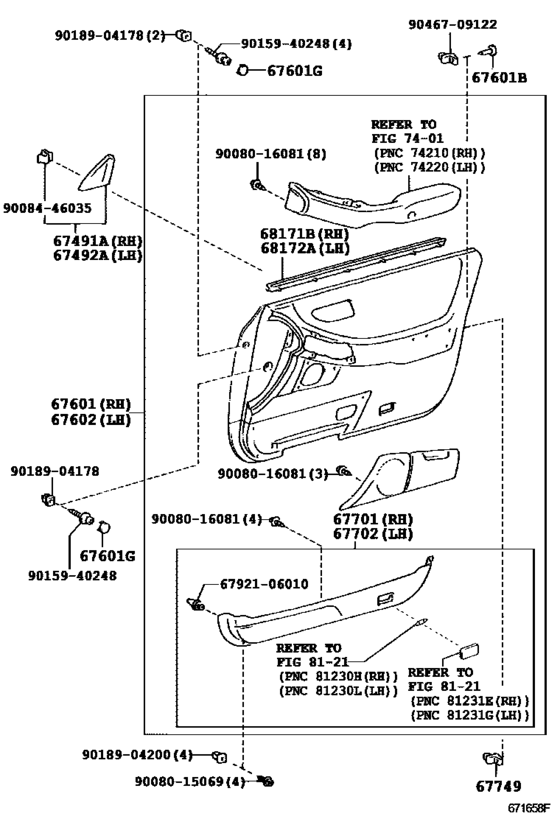

Front Door Panel & Glass ([08.1999 - ] DOOR TRIM (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-AC020
Garnish, Front Door Lower Frame Bracket, Rh
[08.1999 - 04.2000] MCX20 |
67491-AC020 |
— | ||
|
67491A
|
67491A
67491-AC030 Garnish, Front Door Lower Frame Bracket, Rh[04.2000 - 06.2002] MCX20 |
67491-AC030 |
US $17.47 |
||
|
67492A
|
67492A
67492-AC020 Garnish, Front Door Lower Frame Bracket, Lh[08.1999 - 04.2000] MCX20 |
67492-AC020 |
US $15.43 |
||
|
67492A
|
67492A
67492-AC030 Garnish, Front Door Lower Frame Bracket, Lh[04.2000 - 06.2002] MCX20 |
67492-AC030 |
US $17.47 |
||
|
67601
|
67601
67610-AC180-A0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-AC180-A0 |
US $959.50 |
||
| replacement | |||||
|
67601
|
67601
67610-AC901-A1
Board Sub-Assy, Front Door Trim, Rh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-AC901-A1 |
— | ||
|
67601
|
67601
67610-AC180-A1 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-AC180-A1 |
US $959.50 |
||
| replacement | |||||
|
67601
|
67601
67610-AC901-A1
Board Sub-Assy, Front Door Trim, Rh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67610-AC901-A1 |
— | ||
|
67601
|
67601
67610-AC180-B0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-AC180-B0 |
US $959.50 |
||
| replacement | |||||
|
67601
|
67601
67610-AC901-B1
Board Sub-Assy, Front Door Trim, Rh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-AC901-B1 |
— | ||
|
67601
|
67601
67610-AC180-B1 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-AC180-B1 |
US $959.50 |
||
| replacement | |||||
|
67601
|
67601
67610-AC901-B1
Board Sub-Assy, Front Door Trim, Rh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67610-AC901-B1 |
— | ||
|
67601
|
67601
67610-AC180-E0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67610-AC180-E0 |
US $959.50 |
||
| replacement | |||||
|
67601
|
67601
67610-AC901-E1
Board Sub-Assy, Front Door Trim, Rh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67610-AC901-E1 |
— | ||
|
67601
|
67601
67610-AC180-E1 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67610-AC180-E1 |
US $959.50 |
||
| replacement | |||||
|
67601
|
67601
67610-AC901-E1
Board Sub-Assy, Front Door Trim, Rh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67610-AC901-E1 |
— | ||
|
67601
|
67601
67610-AC190-A0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-AC190-A0 |
US $1,630.72 |
||
| replacement | |||||
|
67601
|
67601
67610-AC902-A2 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-AC902-A2 |
US $1,528.80 |
||
|
67601
|
67601
67610-AC190-A3 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-AC190-A3 |
US $1,630.72 |
||
| replacement | |||||
|
67601
|
67601
67610-AC902-A2 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67610-AC902-A2 |
US $1,528.80 |
||
|
67601
|
67601
67610-AC190-B0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-AC190-B0 |
US $1,630.72 |
||
| replacement | |||||
|
67601
|
67601
67610-AC902-B2
Board Sub-Assy, Front Door Trim, Rh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-AC902-B2 |
— | ||
|
67601
|
67601
67610-AC190-B2 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-AC190-B2 |
US $1,630.72 |
||
| replacement | |||||
|
67601
|
67601
67610-AC902-B2
Board Sub-Assy, Front Door Trim, Rh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67610-AC902-B2 |
— | ||
|
67601
|
67601
67610-AC190-E0 Board Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67610-AC190-E0 |
US $1,630.72 |
||
| replacement | |||||
|
67601
|
67601
67610-AC902-E2
Board Sub-Assy, Front Door Trim, Rh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67610-AC902-E2 |
— | ||
|
67601
|
67601
67610-AC190-E2 Board Sub-Assy, Front Door Trim, Rh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67610-AC190-E2 |
US $1,630.72 |
||
| replacement | |||||
|
67601
|
67601
67610-AC902-E2
Board Sub-Assy, Front Door Trim, Rh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67610-AC902-E2 |
— | ||
|
67601B
|
67601B
90467-07066-A0 Clip(For Panel, Instrument Cluster Finish)[08.1999 - 06.2002] MCX20 IVORY,TRIM0# |
90467-07066-A0 |
US $1.92 |
||
|
67601B
|
67601B
90467-07066-E8 Clip(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 FAWN,TRIM4# |
90467-07066-E8 |
US $1.60 |
||
|
67601B
|
67601B
90467-07066-P4 Clip(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 STONE,TRIM1# |
90467-07066-P4 |
from US $1.42 |
||
|
67601G
|
67601G
90950-01746-A0 Plug, Hole(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 IVORY,TRIM0#,LOWER |
90950-01746-A0 |
US $2.62 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 IVORY,TRIM0#,LOWER |
90950-01746-22 |
from US $2.72 |
||
|
67601G
|
67601G
90950-01746-B3 Plug, Hole(For Front Door Trim Board)HOLE(FOR FRONT DOOR TRIM BOARD) [08.1999 - 06.2002] MCX20 DK.STONE,TRIM1#,UPPER |
90950-01746-B3 |
US $2.62 |
||
|
67601G
|
67601G
90950-01746-B4 Plug, Hole(For Front Door Trim Board)HOLE(FOR FRONT DOOR TRIM BOARD) [08.1999 - 06.2002] MCX20 STONE,TRIM1#,LOWER |
90950-01746-B4 |
US $2.62 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 STONE,TRIM1#,LOWER |
90950-01746-22 |
from US $2.72 |
||
|
67601G
|
67601G
90950-01746-E5
Plug, Hole(For Front Door Trim Board)
[08.1999 - 06.2002] MCX20 SANDAL WOOD,TRIM0#,4#,UPPER |
90950-01746-E5 |
— | ||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 SANDAL WOOD,TRIM0#,4#,UPPER |
90950-01746-22 |
from US $2.72 |
||
|
67601G
|
67601G
90950-01746-E6 Plug, Hole(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 FAWN,TRIM4#,LOWER |
90950-01746-E6 |
US $2.62 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[08.1999 - 06.2002] MCX20 FAWN,TRIM4#,LOWER |
90950-01746-22 |
from US $2.72 |
||
|
67602
|
67602
67620-AC190-A0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-AC190-A0 |
US $959.50 |
||
| replacement | |||||
|
67602
|
67602
67620-AC900-A2
Board Sub-Assy, Front Door Trim, Lh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-AC900-A2 |
— | ||
|
67602
|
67602
67620-AC190-A1 Board Sub-Assy, Front Door Trim, Lh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-AC190-A1 |
US $959.50 |
||
| replacement | |||||
|
67602
|
67602
67620-AC900-A2
Board Sub-Assy, Front Door Trim, Lh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
67620-AC900-A2 |
— | ||
|
67602
|
67602
67620-AC190-B0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-AC190-B0 |
US $959.50 |
||
| replacement | |||||
|
67602
|
67602
67620-AC900-B2
Board Sub-Assy, Front Door Trim, Lh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-AC900-B2 |
— | ||
|
67602
|
67602
67620-AC190-B1 Board Sub-Assy, Front Door Trim, Lh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-AC190-B1 |
US $959.50 |
||
| replacement | |||||
|
67602
|
67602
67620-AC900-B2
Board Sub-Assy, Front Door Trim, Lh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
67620-AC900-B2 |
— | ||
|
67602
|
67602
67620-AC190-E0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67620-AC190-E0 |
US $959.50 |
||
| replacement | |||||
|
67602
|
67602
67620-AC900-E2
Board Sub-Assy, Front Door Trim, Lh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67620-AC900-E2 |
— | ||
|
67602
|
67602
67620-AC190-E1 Board Sub-Assy, Front Door Trim, Lh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67620-AC190-E1 |
US $959.50 |
||
| replacement | |||||
|
67602
|
67602
67620-AC900-E2
Board Sub-Assy, Front Door Trim, Lh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
67620-AC900-E2 |
— | ||
|
67602
|
67602
67620-AC200-A0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-AC200-A0 |
US $1,630.72 |
||
| replacement | |||||
|
67602
|
67602
67620-AC902-A2
Board Sub-Assy, Front Door Trim, Lh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-AC902-A2 |
— | ||
|
67602
|
67602
67620-AC200-A3 Board Sub-Assy, Front Door Trim, Lh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-AC200-A3 |
US $1,630.72 |
||
| replacement | |||||
|
67602
|
67602
67620-AC902-A2
Board Sub-Assy, Front Door Trim, Lh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
67620-AC902-A2 |
— | ||
|
67602
|
67602
67620-AC200-B0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-AC200-B0 |
US $1,630.72 |
||
| replacement | |||||
|
67602
|
67602
67620-AC902-B2
Board Sub-Assy, Front Door Trim, Lh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-AC902-B2 |
— | ||
|
67602
|
67602
67620-AC200-B2 Board Sub-Assy, Front Door Trim, Lh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-AC200-B2 |
US $1,630.72 |
||
| replacement | |||||
|
67602
|
67602
67620-AC902-B2
Board Sub-Assy, Front Door Trim, Lh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
67620-AC902-B2 |
— | ||
|
67602
|
67602
67620-AC200-E0 Board Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67620-AC200-E0 |
US $1,630.72 |
||
| replacement | |||||
|
67602
|
67602
67620-AC902-E2
Board Sub-Assy, Front Door Trim, Lh
[08.1999 - 06.2002] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67620-AC902-E2 |
— | ||
|
67602
|
67602
67620-AC200-E2 Board Sub-Assy, Front Door Trim, Lh[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67620-AC200-E2 |
US $1,630.72 |
||
| replacement | |||||
|
67602
|
67602
67620-AC902-E2
Board Sub-Assy, Front Door Trim, Lh
[06.2002 - 01.2005] MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
67620-AC902-E2 |
— | ||
|
67701
|
67701
67701-AC020-A0 Cover Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS IVORY,TRIM0# |
67701-AC020-A0 |
US $174.72 |
||
|
67701
|
67701
67701-AC020-B0 Cover Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1999 - 06.2002] MCX20..XLS STONE,TRIM1# |
67701-AC020-B0 |
US $174.72 |
||
|
67701
|
67701
67701-AC020-E0 Cover Sub-Assy, Front Door Trim, Rh[08.1999 - 06.2002] MCX20..XLS FAWN,TRIM4# |
67701-AC020-E0 |
US $174.72 |
||
|
67702
|
67702
67702-AC020-A0 Cover Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS IVORY,TRIM0# |
67702-AC020-A0 |
US $174.72 |
||
|
67702
|
67702
67702-AC020-B0 Cover Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1999 - 06.2002] MCX20..XLS STONE,TRIM1# |
67702-AC020-B0 |
US $174.72 |
||
|
67702
|
67702
67702-AC020-E0 Cover Sub-Assy, Front Door Trim, Lh[08.1999 - 06.2002] MCX20..XLS FAWN,TRIM4# |
67702-AC020-E0 |
US $174.72 |
||
|
67749
|
67749
67749-AC010 Clip, Door Trim Moulding[08.1999 - 06.2002] MCX20 |
67749-AC010 |
US $9.46 |
||
|
68171B
|
68171B
68171-AC010 Weatherstrip, Front Door Glass, Inner Rh[08.1999 - 06.2002] MCX20 |
68171-AC010 |
US $41.64 |
||
|
68172A
|
68172A
68171-AC010 Weatherstrip, Front Door Glass, Inner Rh[08.1999 - 06.2002] MCX20 |
68171-AC010 |
US $41.64 |
||
|
6792106010
|
6792106010
67921-06010
Retainer, Cowl Side Trim
|
67921-06010 |
— | ||
|
9008015069
|
9008015069
90080-15069
New Genuine Part
|
90080-15069 |
— | ||
| replacement | |||||
|
9008015069
|
9008015069
90159-A0064 New Genuine Part |
90159-A0064 |
US $1.12 |
||
|
9008016081
|
9008016081
90080-16081 New Genuine Part |
90080-16081 |
US $1.02 |
||
|
9008446035
|
9008446035
90084-46035 New Genuine Part |
90084-46035 |
US $1.16 |
||
|
9015940248
|
9015940248
90159-40248 New Genuine Part |
90159-40248 |
US $1.75 |
||
|
9018904178
|
9018904178
90189-04178 New Genuine Part |
90189-04178 |
from US $2.08 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.80 |
||
|
9046709122
|
9046709122
90467-09122 Clip(For Front Door Trim Board) |
90467-09122 |
US $1.40 |
||
