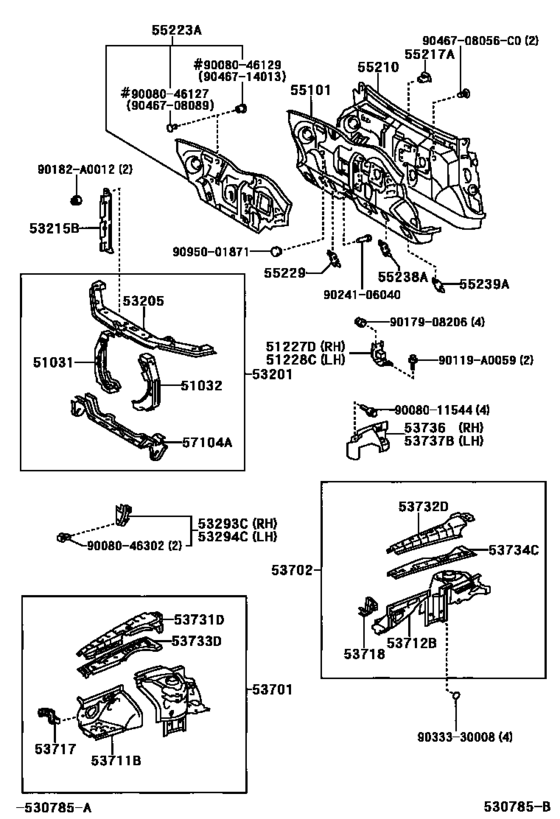

Front Fender Apron & Dash Panel ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51031
|
51031
51031-07020 Gusset Sub-Assy, Front Crossmember, Rh[08.1999 - 06.2002] MCX20 |
51031-07020 |
US $82.99 |
||
|
51032
|
51032
51032-07020 Gusset Sub-Assy, Front Crossmember, Lh[08.1999 - 06.2002] MCX20 |
51032-07020 |
US $82.99 |
||
|
51227D
|
51227D
51227-33020 Weight, Front Suspension Member Damper, Rh[08.1999 - 06.2002] MCX20 |
51227-33020 |
US $116.48 |
||
|
51228C
|
51228C
51228-33010 Plate, Front Suspension Member[08.1999 - 06.2002] MCX20 |
51228-33010 |
US $104.83 |
||
|
53201
|
53201
53201-07902 Support Sub-Assy, Radiator[08.1999 - 06.2002] MCX20 |
53201-07902 |
from US $594.05 |
||
|
53205
|
53205
53205-07030 Support Sub-Assy, Radiator, Upper[08.1999 - 06.2002] MCX20 |
53205-07030 |
US $291.20 |
||
|
53215B
|
53215B
53215-07020 Support, Hood Lock[08.1999 - 06.2002] MCX20 |
53215-07020 |
US $29.12 |
||
|
53293C
|
53293C
53293-07010 Deflector, Radiator Side, Rh[08.1999 - 06.2002] MCX20 |
53293-07010 |
US $18.35 |
||
|
53294C
|
53294C
53294-07010 Deflector, Radiator Side, Lh[08.1999 - 06.2002] MCX20 |
53294-07010 |
US $16.45 |
||
|
53701
|
53701
53701-07010 Apron Sub-Assy, Front Fender, Rh[08.1999 - 06.2002] MCX20 |
53701-07010 |
from US $521.25 |
||
|
53702
|
53702
53702-07010 Apron Sub-Assy, Front Fender, Lh[08.1999 - 06.2002] MCX20 |
53702-07010 |
US $521.25 |
||
|
53711B
|
53711B
53711-07010 Apron, Front Fender, Front Rh[08.1999 - 06.2002] MCX20 |
53711-07010 |
US $82.99 |
||
|
53712B
|
53712B
53712-07010 Apron, Front Fender, Front Lh[08.1999 - 06.2002] MCX20 |
53712-07010 |
US $82.99 |
||
|
53717
|
53717
53717-07010 Plate, Fender Apron, Rh[08.1999 - 06.2002] MCX20 |
53717-07010 |
US $11.21 |
||
|
53718
|
53718
53718-07010 Plate, Fender Apron, Lh[08.1999 - 06.2002] MCX20 |
53718-07010 |
from US $12.08 |
||
|
53731D
|
53731D
53731-07010 Member, Front Apron To Cowl Side, Upper Rh[08.1999 - 06.2002] MCX20 |
53731-07010 |
US $90.27 |
||
|
53732D
|
53732D
53732-07010 Member, Front Apron To Cowl Side, Upper Lh[08.1999 - 06.2002] MCX20 |
53732-07010 |
US $90.27 |
||
|
53733D
|
53733D
53733-07010 Member, Front Apron To Cowl Side, Lower Front Rh[08.1999 - 06.2002] MCX20 |
53733-07010 |
US $43.53 |
||
|
53734C
|
53734C
53734-07010 Member, Front Apron To Cowl Side, Lower Front Lh[08.1999 - 06.2002] MCX20 |
53734-07010 |
US $43.53 |
||
|
53736
|
53736
53736-08010 Seal, Front Fender Apron, Rh[08.1999 - 06.2002] MCX20 |
53736-08010 |
US $45.14 |
||
|
53737B
|
53737B
53737-08010 Seal, Front Fender Apron, Lh[08.1999 - 06.2002] MCX20 |
53737-08010 |
US $45.14 |
||
|
55101
|
55101
55101-07060
Panel Sub-Assy, Dash
[08.1999 - 06.2002] MCX20 |
55101-07060 |
— | ||
|
55210
|
55210
55210-07010
Insulator Assy, Dash Panel
[08.1999 - 05.2002] MCX20 |
55210-07010 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-07011
Insulator Assy, Dash Panel
[08.1999 - 05.2002] MCX20 |
55210-07011 |
— | ||
|
55210
|
55210
55210-07011
Insulator Assy, Dash Panel
[05.2002 - 06.2002] MCX20 |
55210-07011 |
— | ||
|
55217A
|
55217A
55217-07010 Retainer, Dash Panel Silencer[08.1999 - 06.2002] MCX20 |
55217-07010 |
US $2.91 |
||
|
55223A
|
55223A
55223-07010
Insulator, Dash Panel, Outer
[08.1999 - 06.2002] MCX20 |
55223-07010 |
— | ||
|
55229
|
55229
55229-33010 Plate, Dash Panel Insulator, No.4[08.1999 - 06.2002] MCX20 |
55229-33010 |
US $10.48 |
||
|
55238A
|
55238A
55238-33010 Plate, Dash Panel Insulator, No.2[08.1999 - 06.2002] MCX20 |
55238-33010 |
US $11.07 |
||
|
55239A
|
55239A
55239-33010 Plate, Dash Panel Insulator, No.3[08.1999 - 06.2002] MCX20 |
55239-33010 |
US $8.30 |
||
| replacement | |||||
|
55239A
|
55239A
55239-33020 Plate, Dash Panel Insulator, No.3[08.1999 - 06.2002] MCX20 |
55239-33020 |
US $4.80 |
||
|
57104A
|
57104A
57104-07010
Member Sub-Assy, Front Cross
[08.1999 - 06.2002] MCX20 |
57104-07010 |
— | ||
|
90119A0059
|
90119A0059
90119-A0059
BOLT WWASHER
|
90119-A0059 |
— | ||
| replacement | |||||
|
90119A0059
|
90119A0059
90119-08516 BOLT |
90119-08516 |
from US $0.82 |
||
|
90182A0012
|
90182A0012
90182-A0012 NUT WWASHER |
90182-A0012 |
US $1.46 |
||
|
9008011544
|
9008011544
90080-11544
New Genuine Part
|
90080-11544 |
— | ||
|
9008046127
|
9008046127
90080-46127 New Genuine Part |
90080-46127 |
US $0.73 |
||
|
9008046129
|
9008046129
90080-46129
New Genuine Part
|
90080-46129 |
— | ||
|
9008046302
|
9008046302
90080-46302 New Genuine Part |
90080-46302 |
US $1.75 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.86 |
||
|
9024106040
|
9024106040
90241-06040 New Genuine Part |
90241-06040 |
US $1.16 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046708056C0
|
9046708056C0
90467-08056-C0 Clip |
90467-08056-C0 |
from US $0.82 |
||
|
9046708089
|
9046708089
90467-08089 New Genuine Part |
90467-08089 |
US $1.89 |
||
|
9046714013
|
9046714013
90467-14013 New Genuine Part |
90467-14013 |
US $2.56 |
||
|
9095001871
|
9095001871
90950-01871 PLUG |
90950-01871 |
from US $1.60 |
||
