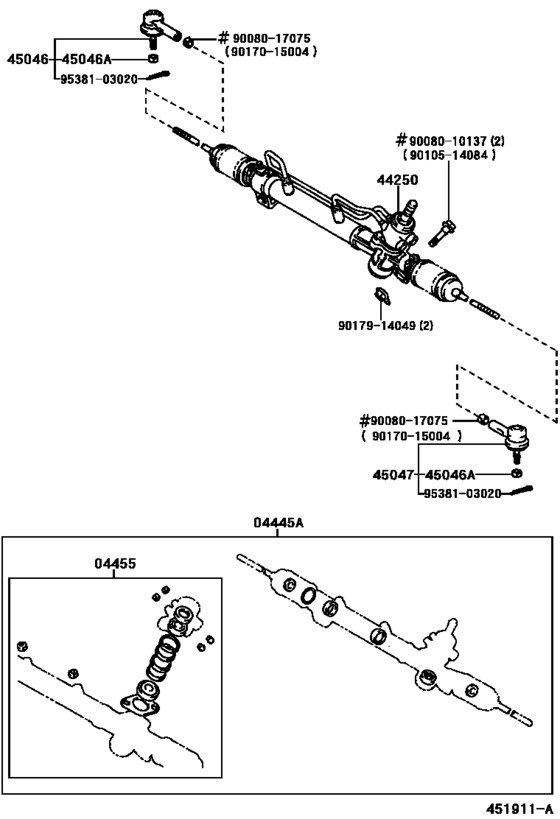

Front Steering Gear & Link ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-07020 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1999 - 06.2002] MCX20 |
04445-07020 |
US $82.99 |
||
| replacement | |||||
|
04445A
|
04445A
04445-07040 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1999 - 06.2002] MCX20 |
04445-07040 |
US $82.99 |
||
|
04445A
|
04445A
04445-07040 Gasket Kit, Power Steering Gear(For Rack & Pinion)[06.2002 - 01.2005] MCX20 |
04445-07040 |
US $82.99 |
||
|
04455
|
04455
04455-07010 Gasket Kit, Power Steering Control Valve Overhole[08.1999 - 06.2002] MCX20 |
04455-07010 |
US $26.21 |
||
|
44250
|
44250
44250-07071
Gear Assy, Power Steering(For Rack & Pinion)
[08.1999 - 06.2002] MCX20 |
44250-07071 |
— | ||
| replacement | |||||
|
44250
|
44250
44250-07072
Gear Assy, Power Steering(For Rack & Pinion)
[08.1999 - 06.2002] MCX20 |
44250-07072 |
— | ||
|
44250
|
44250
44250-07072
Gear Assy, Power Steering(For Rack & Pinion)
[07.2003 -] MCX20 |
44250-07072 |
— | ||
|
45046
|
45046
45046-09020
End Sub-Assy, Tie Rod, Rh
[08.1999 - 06.2002] MCX20 |
45046-09020 |
— | ||
|
45046
|
45046
45046-29255 End Sub-Assy, Tie Rod[10.2002 -] MCX20 (J) |
45046-29255 |
from US $44.48 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1999 - 06.2002] MCX20 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-09020
End Sub-Assy, Tie Rod, Rh
[08.1999 - 06.2002] MCX20 |
45046-09020 |
— | ||
|
45047
|
45047
45046-29255 End Sub-Assy, Tie Rod[10.2002 -] MCX20 (J) |
45046-29255 |
from US $44.48 |
||
|
9008010137
|
9008010137
90080-10137
Bolt(For Front Suspension Lower Arm)
|
90080-10137 |
— | ||
|
9008017075
|
9008017075
90080-17075 New Genuine Part |
90080-17075 |
US $2.33 |
||
|
9010514084
|
9010514084
90105-14084 Bolt(For Front Suspension Lower Arm) |
90105-14084 |
US $6.60 |
||
|
9017015004
|
9017015004
90170-15004 Nut, Rack End Lock |
90170-15004 |
US $2.56 |
||
|
9017914049
|
9017914049
90179-14049 New Genuine Part |
90179-14049 |
US $2.91 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
