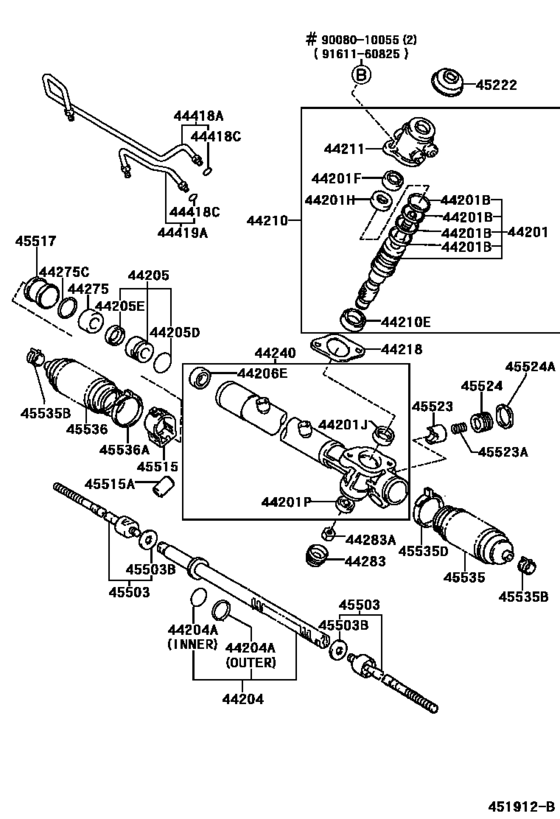

Front Steering Gear & Link ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-33171 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1999 - 06.2002] MCX20 |
44201-33171 |
US $294.11 |
||
|
44201
|
44201
44201-33172 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [07.2003 -] MCX20 |
44201-33172 |
US $294.11 |
||
|
44201B
|
44201B
90560-33003 Spacer(For Power Steering Control Valve)[08.1999 - 06.2002] MCX20 |
90560-33003 |
from US $1.40 |
||
|
44201F
|
44201F
90080-31016
Seal, Oil(For Power Steering Control Valve)
[08.1999 - 06.2002] MCX20 |
90080-31016 |
— | ||
|
44201H
|
44201H
90080-36031
Bearing(For Power Steering Control Valve Upper)
[08.1999 - 06.2002] MCX20 |
90080-36031 |
— | ||
|
44201J
|
44201J
90080-36044
Bearing(For Power Steering Control Valve Center)
[08.1999 - 06.2002] MCX20 |
90080-36044 |
— | ||
|
44201P
|
44201P
90363-12013 Bearing(For Power Steering Control Valve Lower)[08.1999 - 06.2002] MCX20 |
90363-12013 |
from US $8.39 |
||
|
44204
|
44204
44204-07010
Rack Sub-Assy, Power Steering
[08.1999 - 06.2002] MCX20 |
44204-07010 |
— | ||
|
44204
|
44204
44204-07011
Rack Sub-Assy, Power Steering
[07.2003 -] MCX20 |
44204-07011 |
— | ||
|
44204A
|
44204A
90080-30022
Ring(For Rack Steering Piston)
[08.1999 - 06.2002] MCX20 INNER |
90080-30022 |
— | ||
|
44204A
|
44204A
90080-56013
Ring(For Rack Steering Piston)
[08.1999 - 06.2002] MCX20 OUTER |
90080-56013 |
— | ||
|
44205
|
44205
44205-07010 Stopper Sub-Assy, Cylinder End[08.1999 - 06.2002] MCX20 |
44205-07010 |
US $82.99 |
||
|
44205D
|
44205D
90080-30025
Ring, O(For Power Steering Rack Bush)
[08.1999 - 06.2002] MCX20 |
90080-30025 |
— | ||
|
44205E
|
44205E
90080-31010
Seal, Oil(For Power Steering Rack Bush)
[08.1999 - 06.2002] MCX20 |
90080-31010 |
— | ||
|
44206E
|
44206E
90080-31038
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[08.1999 - 06.2002] MCX20 |
90080-31038 |
— | ||
|
44210
|
44210
44210-07081
Valve Assy, Power Steering Control
[08.1999 - 06.2002] MCX20 |
44210-07081 |
— | ||
|
44210
|
44210
44210-07082
Valve Assy, Power Steering Control
[07.2003 -] MCX20 |
44210-07082 |
— | ||
|
44210E
|
44210E
90080-31015
Seal, Oil(For Power Steering Control Valve)
[08.1999 - 06.2002] MCX20 |
90080-31015 |
— | ||
|
44211
|
44211
44211-07020
Housing, Control Valve
[08.1999 - 06.2002] MCX20 |
44211-07020 |
— | ||
|
44218
|
44218
44218-06010
Gasket, Valve Housing
[08.1999 - 06.2002] MCX20 |
44218-06010 |
— | ||
|
44240
|
44240
44240-06030
Housing Assy, Power Steering Rack
[08.1999 - 06.2002] MCX20 |
44240-06030 |
— | ||
|
44275
|
44275
44275-06020 Stopper, Cylinder End[08.1999 - 06.2002] MCX20 |
44275-06020 |
US $24.32 |
||
|
44275C
|
44275C
90080-58122 Wire(For Cylinder End Stopper)[08.1999 - 06.2002] MCX20 |
90080-58122 |
US $3.89 |
||
|
44283
|
44283
44283-06010
Cap, Rack Housing
[08.1999 - 06.2002] MCX20 |
44283-06010 |
— | ||
| replacement | |||||
|
44283
|
44283
44283-08010
Cap, Rack Housing
[08.1999 - 06.2002] MCX20 |
44283-08010 |
— | ||
|
44283
|
44283
44283-08010
Cap, Rack Housing
[07.2003 -] MCX20 |
44283-08010 |
— | ||
|
44283A
|
44283A
90080-17078 Nut(For Rack Housing Cap)[08.1999 - 06.2002] MCX20 |
90080-17078 |
US $0.73 |
||
|
44418A
|
44418A
44418-07010
Tube, Steering Right Turn Pressure
[08.1999 - 06.2002] MCX20 |
44418-07010 |
— | ||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[08.1999 - 06.2002] MCX20 |
90080-30023 |
US $6.41 |
||
|
44419A
|
44419A
44419-07010
Tube, Steering Left Turn Pressure
[08.1999 - 06.2002] MCX20 |
44419-07010 |
— | ||
|
45222
|
45222
45222-06010
Cover, Steering Gear Dust
[08.1999 - 09.2000] MCX20 |
45222-06010 |
— | ||
|
45222
|
45222
45222-0C010 Cover, Steering Gear Dust[09.2000 - 06.2002] MCX20 |
45222-0C010 |
US $4.37 |
||
|
45503
|
45503
45503-09030 End Sub-Assy, Steering Rack[08.1999 - 02.2000] MCX20 |
45503-09030 |
US $109.20 |
||
| replacement | |||||
|
45503
|
45503
45503-09041
End Sub-Assy, Steering Rack
[08.1999 - 02.2000] MCX20 |
45503-09041 |
— | ||
|
45503
|
45503
45503-39135 End Sub-Assy, Steering Rack[02.2000 - 06.2002] MCX20 |
45503-39135 |
from US $112.48 |
||
|
45503B
|
45503B
90080-21008 Washer, Claw(For Steering Rack End)[08.1999 - 02.2000] MCX20 |
90080-21008 |
US $1.60 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[02.2000 - 06.2002] MCX20 OD=37 |
90214-14002 |
from US $1.33 |
||
|
45515
|
45515
45515-06011 Bracket, Steering Rack Housing, No.2[08.1999 - 06.2002] MCX20 |
45515-06011 |
US $13.10 |
||
|
45515A
|
45515A
90080-38062 Collar, Steering Rack Housing Bracket[08.1999 - 06.2002] MCX20 |
90080-38062 |
US $2.62 |
||
|
45517
|
45517
45517-06030 Grommet, Steering Rack Housing, No.2[08.1999 - 06.2002] MCX20 |
45517-06030 |
US $12 |
||
|
45523
|
45523
45504-06010 Guide, Rack(For Steering Gear)[08.1999 - 06.2002] MCX20 |
45504-06010 |
US $81.54 |
||
|
45523A
|
45523A
90080-50159
Spring(For Steering Gear Rack Guide)
[08.1999 - 06.2002] MCX20 |
90080-50159 |
— | ||
|
45524
|
45524
45524-06010
Cap, Steering Rack Guide Spring
[08.1999 - 06.2002] MCX20 |
45524-06010 |
— | ||
|
45524A
|
45524A
44142-06010
Nut(For Steering Rack Guide Spring Cap)
[08.1999 - 06.2002] MCX20 |
44142-06010 |
— | ||
|
45535
|
45535
45535-06020
Boot, Steering Rack, No.1
[08.1999 - 09.2001] MCX20 |
45535-06020 |
— | ||
|
45535
|
45535
45535-07010 Boot, Steering Rack, No.1[09.2001 - 06.2002] MCX20 |
45535-07010 |
US $11.01 |
||
|
45535B
|
45535B
90080-46153
Clip(For Steering Rack Boot)
[08.1999 - 06.2002] MCX20 |
90080-46153 |
— | ||
|
45535D
|
45535D
90080-46152
Clamp(For Steering Rack Boot No.1)
[08.1999 - 06.2002] MCX20 |
90080-46152 |
— | ||
| replacement | |||||
|
45535D
|
45535D
90460-58006 Clamp(For Steering Rack Boot No.1)[08.1999 - 06.2002] MCX20 |
90460-58006 |
US $5.92 |
||
|
45536
|
45536
45535-06020
Boot, Steering Rack, No.1
[08.1999 - 09.2001] MCX20 |
45535-06020 |
— | ||
|
45536
|
45536
45535-07010 Boot, Steering Rack, No.1[09.2001 - 06.2002] MCX20 |
45535-07010 |
US $11.01 |
||
|
45536A
|
45536A
90080-46152
Clamp(For Steering Rack Boot No.1)
[08.1999 - 06.2002] MCX20 |
90080-46152 |
— | ||
| replacement | |||||
|
45536A
|
45536A
90460-58006 Clamp(For Steering Rack Boot No.1)[08.1999 - 06.2002] MCX20 |
90460-58006 |
US $5.92 |
||
|
9008010055
|
9008010055
90080-10055 New Genuine Part |
90080-10055 |
US $1.60 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
