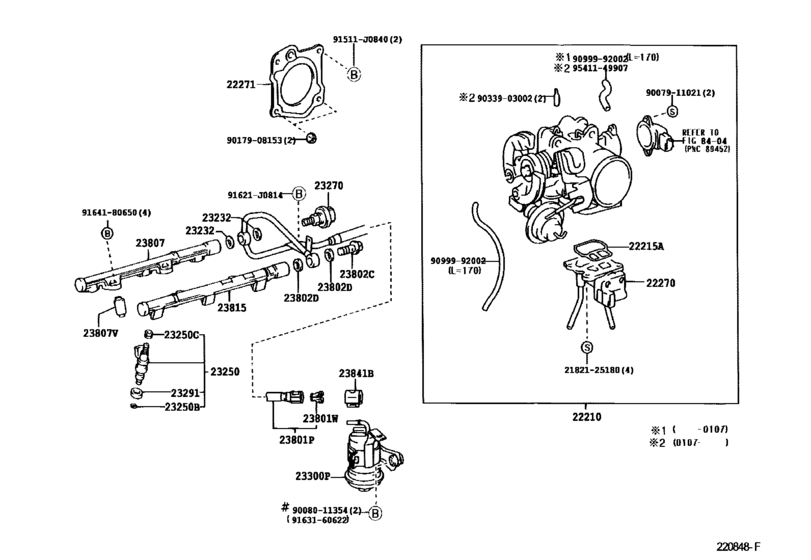

Fuel Injection System ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-0A130
Body Assy, Throttle
[08.1999 - 07.2001] 1MZFE..MCX20 |
22210-0A130 |
— | ||
|
22210
|
22210
22210-20070 Body Assy, ThrottleTHROTTLE [07.2001 - 06.2002] 1MZFE..MCX20 |
22210-20070 |
US $1,221.58 |
||
|
22215A
|
22215A
22215-0A010
Gasket, Idle Speed Control Valve
[08.1999 - 07.2001] 1MZFE..MCX20 (L) |
22215-0A010 |
— | ||
|
22215A
|
22215A
22215-20010 Gasket, Idle Speed Control Valve[08.1999 - 07.2001] 1MZFE..MCX20 (J) |
22215-20010 |
from US $4 |
||
|
22270
|
22270
22270-0A031
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1999 - 07.2001] 1MZFE..MCX20 (L) |
22270-0A031 |
— | ||
|
22270
|
22270
22270-20020
Valve Assy, Idle Speed Control(For Thlottle Body)
[07.2001 - 06.2002] 1MZFE..MCX20 |
22270-20020 |
— | ||
|
22270
|
22270
22270-20031 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1999 - 07.2001] 1MZFE..MCX20 (J) |
22270-20031 |
US $601.33 |
||
|
22271
|
22271
22271-0A010
Gasket, Throttle Body
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
22271-0A010 |
— | ||
|
22271
|
22271
22271-20010 Gasket, Throttle Body[06.2003 -] 1MZFE..MCX20 |
22271-20010 |
from US $5.95 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.1999 - 06.2002] 1MZFE..MCX20 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-11070 Injector Assy, Fuel[08.1999 - 10.2001] 1MZFE..MCX20 |
23209-11070 |
US $276.64 |
||
|
23250
|
23250
23209-20010 Injector Assy, Fuel[10.2001 - 06.2002] 1MZFE..MCX20 |
23209-20010 |
US $273.73 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.1999 - 10.2001] 1MZFE..MCX20 |
90301-07024 |
from US $2.91 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1999 - 06.2002] 1MZFE..MCX20 |
90480-13005 |
from US $2.50 |
||
|
23270
|
23270
23270-62010
Damper Assy, Fuel Pressure Pulsation
[08.1999 - 06.2002] 1MZFE..MCX20 |
23270-62010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[08.1999 - 06.2002] 1MZFE..MCX20 |
23207-20011 |
from US $60.14 |
||
|
23270
|
23270
23270-62011 Damper Assy, Fuel Pressure Pulsation[10.2004 - 01.2005] 1MZFE..MCX20 |
23270-62011 |
US $71.64 |
||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[10.2004 - 01.2005] 1MZFE..MCX20 |
23207-20011 |
from US $60.14 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1999 - 10.2001] 1MZFE..MCX20 |
23291-41010 |
from US $2.77 |
||
|
23291
|
23291
23291-62010 Insulator, Injector Vibration[10.2001 - 06.2002] 1MZFE..MCX20 |
23291-62010 |
from US $3.18 |
||
|
23300P
|
23300P
23300-20120 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1999 - 06.2002] 1MZFE..MCX20 |
23300-20120 |
from US $60.96 |
||
|
23801P
|
23801P
23801-20090 Pipe Sub-Assy, Fuel, No.1FUEL, NO.1 [08.1999 - 06.2002] 1MZFE..MCX20 |
23801-20090 |
US $99.01 |
||
|
23801W
|
23801W
90923-07010 Clip, Fuel Tube Connector[08.1999 - 06.2002] 1MZFE..MCX20 |
90923-07010 |
from US $2.83 |
||
|
23802C
|
23802C
90401-12015 Bolt, Union(For Fuel Pipe No.2)[08.1999 - 06.2002] 1MZFE..MCX20 |
90401-12015 |
US $5.07 |
||
|
23802D
|
23802D
90430-12026 Gasket[08.1999 - 06.2002] 1MZFE..MCX20 |
90430-12026 |
from US $0.94 |
||
|
23807
|
23807
23814-20020 Pipe Sub-Assy, Fuel Delivery[08.1999 - 06.2002] 1MZFE..MCX20 |
23814-20020 |
US $103.38 |
||
| replacement | |||||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[08.1999 - 06.2002] 1MZFE..MCX20 |
23814-20021 |
US $85.90 |
||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[01.2004 - 01.2005] 1MZFE..MCX20 |
23814-20021 |
US $85.90 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[08.1999 - 06.2002] 1MZFE..MCX20 |
90561-08020 |
from US $3.20 |
||
|
23815
|
23815
23815-20020
Pipe, Fuel Delivery, No.2
[08.1999 - 06.2002] 1MZFE..MCX20 |
23815-20020 |
— | ||
| replacement | |||||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
23815-20021 |
US $101.34 |
||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[01.2004 - 01.2005] 1MZFE..MCX20 |
23815-20021 |
US $101.34 |
||
|
23841B
|
23841B
23841-20020 Clamp, Fuel Pipe, No.1(For Efi)[08.1999 - 06.2002] 1MZFE..MCX20 |
23841-20020 |
US $2.80 |
||
|
91511J0840
|
91511J0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9008011354
|
9008011354
90080-11354 New Genuine Part |
90080-11354 |
US $0.52 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
|
9541149907
|
9541149907
95411-49907 New Genuine Part |
95411-49907 |
US $6.12 |
||
