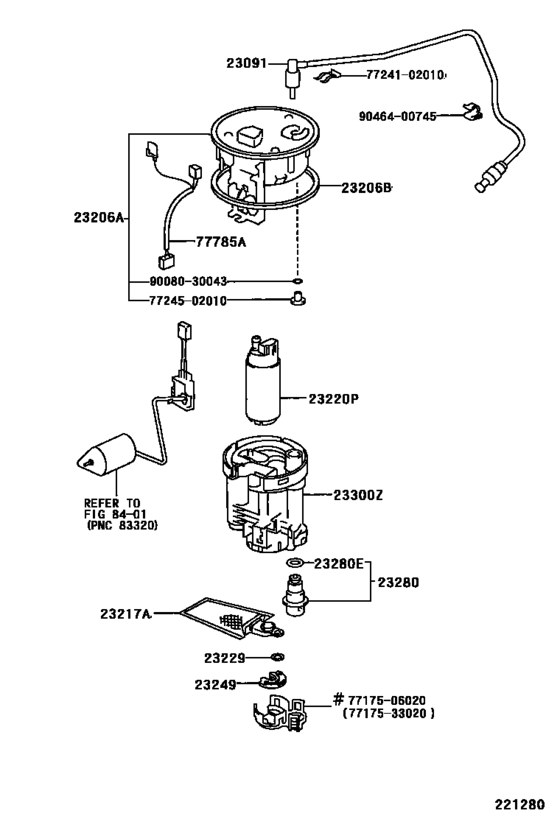

Fuel Injection System ([06.2002 - ] (0206- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
77209-06020
Tube Sub-Assy, Fuel Pump
[06.2002 -] 1MZFE..MCX20 |
77209-06020 |
— | ||
|
23091
|
23091
77209-33010 Tube Sub-Assy, Fuel Pump[08.1999 - 06.2002] 1MZFE..MCX20 |
77209-33010 |
US $55.62 |
||
|
23206A
|
23206A
77024-06020
Bracket, Fuel Pump
[06.2002 -] 1MZFE..MCX20 |
77024-06020 |
— | ||
|
23206A
|
23206A
77024-33010 Plate Sub-Assy, Fuel Suction[08.1999 - 06.2002] 1MZFE..MCX20 |
77024-33010 |
from US $63.69 |
||
|
23206B
|
23206B
77169-02020 Gasket, Fuel Pump Bracket[06.2002 -] 1MZFE..MCX20 (L) |
77169-02020 |
US $8.30 |
||
|
23206B
|
23206B
77169-33010 Gasket, Fuel Pump Bracket[08.1999 - 06.2002] 1MZFE..MCX20 |
77169-33010 |
US $10.08 |
||
|
23206B
|
23206B
77169-33020 Gasket, Fuel Pump Bracket[06.2002 -] 1MZFE..MCX20 (J) |
77169-33020 |
from US $7.04 |
||
|
23217A
|
23217A
23217-0C010 Filter, Fuel Pump[06.2002 - 01.2005] 1MZFE..MCX20 |
23217-0C010 |
from US $12.32 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[08.1999 - 06.2002] 1MZFE..MCX20 |
23217-74021 |
from US $10.22 |
||
|
23220P
|
23220P
23221-0A030 Pump, Fuel[06.2002 - 01.2005] 1MZFE..MCX20 |
23221-0A030 |
US $500.86 |
||
|
23220P
|
23220P
23221-15040 Pump Assy, Fuel[08.1999 - 06.2002] 1MZFE..MCX20 |
23221-15040 |
US $525.91 |
||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[06.2002 - 01.2005] 1MZFE..MCX20 |
23219-03010 |
US $2.55 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1999 - 06.2002] 1MZFE..MCX20 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1999 - 06.2002] 1MZFE..MCX20 |
23219-03010 |
US $2.55 |
||
|
23249
|
23249
23249-0A020
Rubber, Cushion(For Fuel Pump)
[06.2002 - 01.2005] 1MZFE..MCX20 |
23249-0A020 |
— | ||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.1999 - 06.2002] 1MZFE..MCX20 |
23249-74610 |
from US $8.56 |
||
|
23280
|
23280
23280-22010 Regulator Assy, Fuel Pressure[06.2002 - 01.2005] 1MZFE..MCX20 |
23280-22010 |
from US $58.54 |
||
|
23280
|
23280
23280-74190 Regulator Assy, Fuel Pressure[08.1999 - 06.2002] 1MZFE..MCX20 |
23280-74190 |
US $127.55 |
||
|
23280E
|
23280E
90301-07020 Ring, O(For Fuel Pressure Regulator)[08.1999 - 06.2002] 1MZFE..MCX20 |
90301-07020 |
from US $2.69 |
||
|
23300Z
|
23300Z
23300-0A020
Filter Assy, Fuel
[06.2002 - 01.2005] 1MZFE..MCX20 |
23300-0A020 |
— | ||
|
23300Z
|
23300Z
23300-74280 Filter, Fuel(For Fuel Tank)[08.1999 - 06.2002] 1MZFE..MCX20 |
23300-74280 |
US $59.06 |
||
|
77785A
|
77785A
77785-06020 Harness, Fuel Pump[06.2002 -] MCX20 |
77785-06020 |
US $11.36 |
||
|
77785A
|
77785A
77785-33020 Harness, Fuel Pump[08.1999 - 06.2002] MCX20 |
77785-33020 |
US $7.72 |
||
|
7717506020
|
7717506020
77175-06020
Support, Fuel Suction, No.2
|
77175-06020 |
— | ||
|
7717533020
|
7717533020
77175-33020 Support, Fuel Suction, No.2 |
77175-33020 |
US $11.94 |
||
|
7724102010
|
7724102010
77241-02010 Clip, Tube Joint |
77241-02010 |
US $1.02 |
||
|
7724502010
|
7724502010
77245-02010 Cap, Fuel Suction |
77245-02010 |
US $8.59 |
||
|
9008030043
|
9008030043
90080-30043 New Genuine Part |
90080-30043 |
US $3.68 |
||
|
9046400745
|
9046400745
90464-00745 Clamp, Fuel Tube, No.4 |
90464-00745 |
US $3.20 |
||
