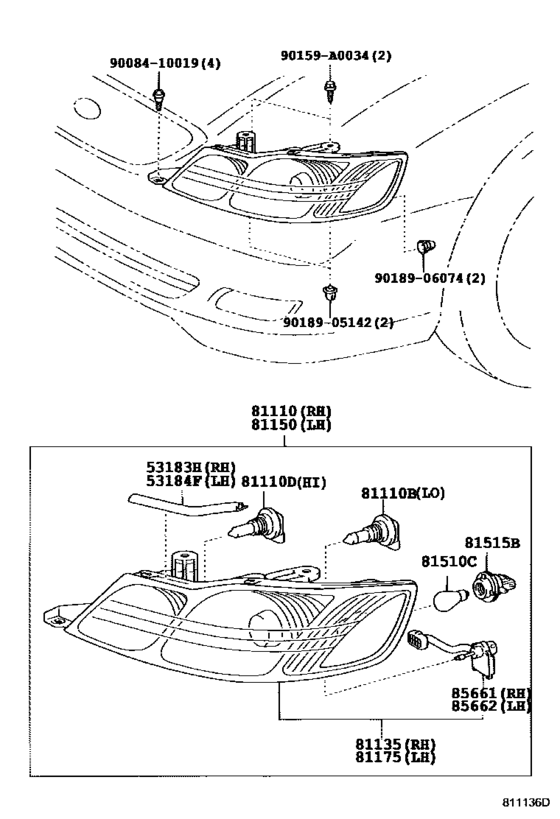

Headlamp ([08.1999 - 01.2005] (9908-0501)) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183H
|
53183H
53183-AC020 Seal, Headlamp Cover, Rh[08.1999 - 07.2001] MCX20 |
53183-AC020 |
from US $7.68 |
||
|
53184F
|
53184F
53184-AC020 Seal, Headlamp Cover, Lh[08.1999 - 07.2001] MCX20 |
53184-AC020 |
US $10.19 |
||
|
81110
|
81110
81110-07070
Headlamp Assy, Rh
[08.2003 - 01.2005] MCX20 |
81110-07070 |
— | ||
|
81110
|
81110
81110-AC040
Headlamp Assy, Rh
[08.1999 - 07.2001] MCX20 |
81110-AC040 |
— | ||
|
81110B
|
81110B
90080-81040
Bulb(For Headlamp, No.1)
[08.1999 - 07.2001] MCX20 12V 51W |
90080-81040 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13047 Bulb (HB4)[08.1999 - 07.2001] MCX20 12V 51W |
90981-13047 |
from US $17.76 |
||
|
81110B
|
81110B
90981-13047 Bulb (HB4)[06.2002 -] MCX20 12V 51W,HALOGEN |
90981-13047 |
from US $17.76 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[08.1999 - 07.2001] MCX20 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.1999 - 07.2001] MCX20 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81135
|
81135
81130-07070
Unit Assy, Headlamp, Rh
[08.2003 - 01.2005] MCX20 |
81130-07070 |
— | ||
|
81135
|
81135
81130-AC040 Unit Assy, Headlamp, RhHEADLAMP, RH [08.1999 - 07.2001] MCX20 |
81130-AC040 |
US $460.10 |
||
|
81150
|
81150
81150-07070
Headlamp Assy, Lh
[08.2003 - 01.2005] MCX20 |
81150-07070 |
— | ||
|
81150
|
81150
81150-AC040
Headlamp Assy, Lh
[08.1999 - 07.2001] MCX20 |
81150-AC040 |
— | ||
|
81175
|
81175
81170-07070
Unit Assy, Headlamp, Lh
[08.2003 - 01.2005] MCX20 |
81170-07070 |
— | ||
|
81175
|
81175
81170-AC040 Unit Assy, Headlamp, LhHEADLAMP, LH [08.1999 - 07.2001] MCX20 |
81170-AC040 |
US $460.10 |
||
|
81510C
|
81510C
90084-98048 Bulb (For Front Turn Signal Lamp)[08.1999 - 07.2001] MCX20 12V 27/8W |
90084-98048 |
from US $4.60 |
||
|
81515B
|
81515B
90075-99106 Socket And Wire, Clearance Lamp[08.1999 - 07.2001] MCX20 |
90075-99106 |
from US $7.04 |
||
|
85661
|
85661
85661-41020
Motor, Headlamp Leveling, Rh
[08.2003 - 01.2005] MCX20 |
85661-41020 |
— | ||
|
85662
|
85662
85661-41020
Motor, Headlamp Leveling, Rh
[08.2003 - 01.2005] MCX20 |
85661-41020 |
— | ||
|
90159A0034
|
90159A0034
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9008410019
|
9008410019
90084-10019 New Genuine Part |
90084-10019 |
US $1.75 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
|
9018906074
|
9018906074
90189-06074 GROMMET |
90189-06074 |
from US $2.24 |
||
