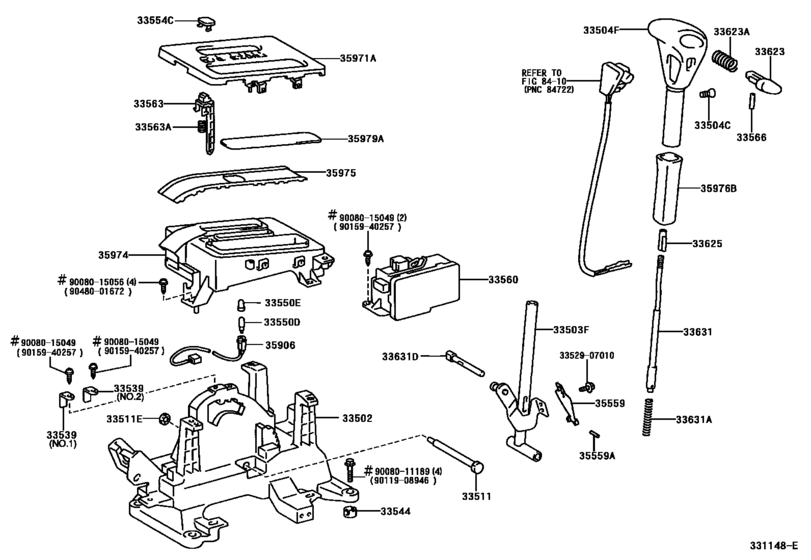

Shift Lever & Retainer ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33521-07030
Plate Sub-Assy, Shift Lever
[08.1999 - 06.2002] MCX20 |
33521-07030 |
— | ||
|
33503F
|
33503F
33503-07030
Lever Sub-Assy, Shift(For Floor Shift)
[08.1999 - 06.2002] MCX20 |
33503-07030 |
— | ||
|
33504C
|
33504C
90080-15048 Screw (For Shift Lever Knob Setting)[08.1999 - 06.2002] MCX20 (L) |
90080-15048 |
US $1.46 |
||
|
33504C
|
33504C
90159-40238 Screw (For Shift Lever Knob Setting)[08.1999 - 06.2002] MCX20 (J) |
90159-40238 |
US $0.84 |
||
|
33504F
|
33504F
33542-07021-A1 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1999 - 06.2002] MCX20..XLS LEATHER,IVORY,TRIM0# |
33542-07021-A1 |
US $72.80 |
||
|
33504F
|
33504F
33542-07021-B1 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1999 - 06.2002] MCX20..XLS LEATHER,STONE,TRIM1# |
33542-07021-B1 |
US $72.80 |
||
|
33504F
|
33504F
33542-07021-E7 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1999 - 06.2002] MCX20..XLS LEATHER,FAWN,TRIM4# |
33542-07021-E7 |
US $72.80 |
||
|
33511
|
33511
33511-32070 Shaft, Control (For Floor Shift)[08.1999 - 06.2002] MCX20 |
33511-32070 |
US $7.43 |
||
|
33511E
|
33511E
90080-52085 Ring, Snap (For Floor Shift Control Shaft)[08.1999 - 06.2002] MCX20 |
90080-52085 |
US $1.60 |
||
|
33539
|
33539
33539-07010 Cushion, Shift Lever Anti-Rattle[08.1999 - 06.2002] MCX20 NO.1 |
33539-07010 |
US $4.08 |
||
|
33539
|
33539
33539-07020
Cushion, Shift Lever Anti-Rattle
[08.1999 - 06.2002] MCX20 NO.2 |
33539-07020 |
— | ||
|
33544
|
33544
33544-06010 Insert, Shift Lever, No.1[08.1999 - 06.2002] MCX20 |
33544-06010 |
US $0.99 |
||
|
33550D
|
33550D
90981-11040 Bulb, Position Indicator Lamp[08.1999 - 06.2002] MCX20 12V 2W |
90981-11040 |
from US $2.18 |
||
|
33550E
|
33550E
35956-07010 Cap, Position Indicator Lamp[08.1999 - 06.2002] MCX20 |
35956-07010 |
US $3.06 |
||
|
33554C
|
33554C
33554-07030
Cover, Shift Lock Release Button
[08.1999 - 06.2002] MCX20 |
33554-07030 |
— | ||
|
33560
|
33560
33560-02010
Unit Assy, Shift Lock Control
[08.1999 - 06.2002] MCX20 |
33560-02010 |
— | ||
|
33563
|
33563
33563-07030
Button, Shift Lock Release
[08.1999 - 06.2002] MCX20 |
33563-07030 |
— | ||
|
33563A
|
33563A
90080-50088 Spring, Compression (For Shift Lock Release Button)[08.1999 - 06.2002] MCX20 |
90080-50088 |
US $2.62 |
||
|
33566
|
33566
90256-02005 Pin, Shift Lever Stop[08.1999 - 06.2002] MCX20 |
90256-02005 |
US $0.87 |
||
|
33623
|
33623
33623-07030-A2
Button, Shift Lever Knob
[08.1999 - 07.2001] MCX20 IVORY,TRIM0# |
33623-07030-A2 |
— | ||
|
33623
|
33623
33623-07030-B2
Button, Shift Lever Knob
[08.1999 - 07.2001] MCX20 STONE,TRIM1# |
33623-07030-B2 |
— | ||
|
33623
|
33623
33623-07030-E2
Button, Shift Lever Knob
[08.1999 - 07.2001] MCX20 FAWN,TRIM4# |
33623-07030-E2 |
— | ||
|
33623
|
33623
33623-07050
Button, Shift Lever Knob
[07.2001 - 06.2002] MCX20 |
33623-07050 |
— | ||
|
33623A
|
33623A
90080-50087
Spring, Compression (For Shift Lever Knob Button)
[08.1999 - 06.2002] MCX20 |
90080-50087 |
— | ||
|
33625
|
33625
33625-07010 Sleeve, Shift Lever Knob[08.1999 - 06.2002] MCX20 |
33625-07010 |
US $3.06 |
||
|
33631
|
33631
33631-07020 Rod, Detent[08.1999 - 06.2002] MCX20 |
33631-07020 |
US $27.37 |
||
|
33631A
|
33631A
90080-50192
Spring, Compression (For Detent Rod)
[08.1999 - 06.2002] MCX20 |
90080-50192 |
— | ||
|
33631D
|
33631D
90256-04008 Pin, Shift Lever Stop[08.1999 - 06.2002] MCX20 |
90256-04008 |
US $4.22 |
||
|
35559
|
35559
35559-12040 Spring, Manual Detent[08.1999 - 01.2000] MCX20 |
35559-12040 |
US $5.68 |
||
|
35559
|
35559
35559-33030 Spring, Manual Detent[01.2000 - 06.2002] MCX20 |
35559-33030 |
US $5.68 |
||
|
35559A
|
35559A
90249-02005 Pin, Shift Lever (For Floor Shift)[01.2000 - 06.2002] MCX20 |
90249-02005 |
US $2.04 |
||
|
35906
|
35906
35906-07040 Wire Sub-Assy, Indicator LampINDICATOR LAMP [08.1999 - 06.2002] MCX20 |
35906-07040 |
US $15.58 |
||
|
35971A
|
35971A
35971-07030
Housing, Position Indicator, Upper
[08.1999 - 06.2002] MCX20 |
35971-07030 |
— | ||
|
35974
|
35974
35974-07030
Housing, Position Indicator, Lower
[08.1999 - 06.2002] MCX20 |
35974-07030 |
— | ||
|
35975
|
35975
35975-07020 Cover, Slide (For Position Indicator)[08.1999 - 06.2002] MCX20 |
35975-07020 |
US $5.10 |
||
|
35976B
|
35976B
35976-07030-A2 Cover, Shift Lever Knob (For Floor Shift)[08.1999 - 07.2001] MCX20 IVORY,TRIM0# |
35976-07030-A2 |
US $47.61 |
||
|
35976B
|
35976B
35976-07030-B2 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [08.1999 - 07.2001] MCX20 STONE,TRIM1# |
35976-07030-B2 |
US $47.61 |
||
|
35976B
|
35976B
35976-07030-E2 Cover, Shift Lever Knob (For Floor Shift)SHIFT LEVER KNOB (FOR FLOOR SHIFT) [08.1999 - 07.2001] MCX20 FAWN,TRIM4# |
35976-07030-E2 |
US $47.61 |
||
|
35976B
|
35976B
35976-07040 Cover, Shift Lever Knob (For Floor Shift)[07.2001 - 06.2002] MCX20 |
35976-07040 |
US $47.76 |
||
|
35979A
|
35979A
35979-07011
Sheet, Position Indicator Housing
[08.1999 - 06.2002] MCX20 |
35979-07011 |
— | ||
|
3352907010
|
3352907010
33529-07010 Bolt, Shift Lever (for Control Shaft) |
33529-07010 |
US $1.60 |
||
|
9008011189
|
9008011189
90080-11189
New Genuine Part
|
90080-11189 |
— | ||
|
9008015049
|
9008015049
90080-15049 New Genuine Part |
90080-15049 |
US $1.16 |
||
|
9008015056
|
9008015056
90080-15056
New Genuine Part
|
90080-15056 |
— | ||
|
9011908946
|
9011908946
90119-08946
New Genuine Part
|
90119-08946 |
— | ||
| replacement | |||||
|
9011908946
|
9011908946
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
|
9015940257
|
9015940257
90159-40257 New Genuine Part |
90159-40257 |
US $1.46 |
||
|
9048001672
|
9048001672
90480-01672 Grommet, No.2 (For Transmission Control Cable) |
90480-01672 |
US $7.28 |
||
