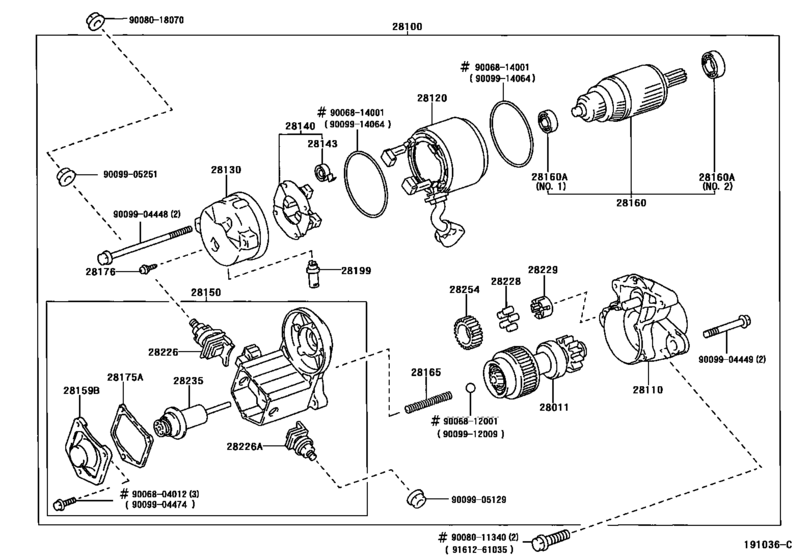

Starter ([08.1999 - ] 12V 1.4KW (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[08.1999 - 06.2002] 1MZFE..MCX20 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-03100 Starter Assy[07.2001 - 06.2002] 1MZFE..MCX20 12V 1.4KW |
28100-03100 |
US $981.34 |
||
|
28100
|
28100
28100-03110
Starter Assy
[08.1999 - 07.2001] 1MZFE..MCX20 12V 1.2KW |
28100-03110 |
— | ||
|
28110
|
28110
28110-03100
Housing Assy, Starter Drive
[08.1999 - 06.2002] 1MZFE..MCX20 |
28110-03100 |
— | ||
|
28120
|
28120
28120-01030 Yoke Assy, Starter[07.2001 - 06.2002] 1MZFE..MCX20 |
28120-01030 |
US $151.42 |
||
|
28120
|
28120
28120-0W030
Yoke Assy, Starter
[08.1999 - 07.2001] 1MZFE..MCX20 |
28120-0W030 |
— | ||
|
28130
|
28130
28130-03100
Frame Assy, Starter Commutator End
[07.2001 - 06.2002] 1MZFE..MCX20 |
28130-03100 |
— | ||
|
28130
|
28130
28130-03110
Frame Assy, Starter Commutator End
[08.1999 - 07.2001] 1MZFE..MCX20 |
28130-03110 |
— | ||
|
28140
|
28140
28140-03010 Holder Assy, Starter Brush[07.2001 - 06.2002] 1MZFE..MCX20 |
28140-03010 |
US $19.07 |
||
|
28140
|
28140
28140-03020
Holder Assy, Starter Brush
[08.1999 - 07.2001] 1MZFE..MCX20 |
28140-03020 |
— | ||
|
28143
|
28143
28143-76060
Spring, Starter Brush
[08.1999 - 07.2001] 1MZFE..MCX20 |
28143-76060 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[07.2001 - 06.2002] 1MZFE..MCX20 |
90099-17112 |
— | ||
|
28150
|
28150
28150-03100
Switch Assy, Magnet Starter
[08.1999 - 06.2002] 1MZFE..MCX20 |
28150-03100 |
— | ||
|
28159B
|
28159B
28159-07010
Cover, Starter Protector
[08.1999 - 06.2002] 1MZFE..MCX20 |
28159-07010 |
— | ||
|
28160
|
28160
28160-01020
Armature Assy, Starter
[07.2001 - 06.2002] 1MZFE..MCX20 |
28160-01020 |
— | ||
|
28160
|
28160
28160-0W020 Armature Assy, StarterSTARTER [08.1999 - 07.2001] 1MZFE..MCX20 |
28160-0W020 |
US $269.36 |
||
|
28160A
|
28160A
90068-10003
Bearing, Starter Armature
[08.1999 - 06.2002] 1MZFE..MCX20 NO.1 |
90068-10003 |
— | ||
|
28160A
|
28160A
90068-10004
Bearing, Starter Armature
[08.1999 - 06.2002] 1MZFE..MCX20 NO.2 |
90068-10004 |
— | ||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[08.1999 - 06.2002] 1MZFE..MCX20 |
28165-74070 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[08.1999 - 06.2002] 1MZFE..MCX20 |
28175-55050 |
US $1.92 |
||
|
28176
|
28176
90068-00007 Screw, Starter[08.1999 - 06.2002] 1MZFE..MCX20 |
90068-00007 |
US $0.73 |
||
|
28199
|
28199
28199-74110 Cover, Starter End Frame[08.1999 - 06.2002] 1MZFE..MCX20 |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[08.1999 - 11.1999] 1MZFE..MCX20 |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[08.1999 - 11.1999] 1MZFE..MCX20 |
28226-64370 |
from US $6.90 |
||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[11.1999 - 07.2001] 1MZFE..MCX20 |
28226-64370 |
from US $6.90 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[08.1999 - 06.2002] 1MZFE..MCX20 |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.1999 - 06.2002] 1MZFE..MCX20 |
28228-26040 |
— | ||
|
28229
|
28229
28229-01020
Retainer, Starter Idle Gear
[08.1999 - 06.2002] 1MZFE..MCX20 |
28229-01020 |
— | ||
|
28235
|
28235
28235-03080
Plunger, Magnet Switch
[08.1999 - 06.2002] 1MZFE..MCX20 |
28235-03080 |
— | ||
|
28254
|
28254
28254-03010 Gear, Starter Idle[08.1999 - 06.2002] 1MZFE..MCX20 |
28254-03010 |
US $12.23 |
||
|
9006804012
|
9006804012
90068-04012 New Genuine Part |
90068-04012 |
US $0.73 |
||
|
9006812001
|
9006812001
90068-12001 New Genuine Part |
90068-12001 |
US $1.16 |
||
|
9006814001
|
9006814001
90068-14001 Ring, O(For Starter Yoke) |
90068-14001 |
US $6.12 |
||
|
9008011340
|
9008011340
90080-11340
New Genuine Part
|
90080-11340 |
— | ||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
US $1.60 |
||
