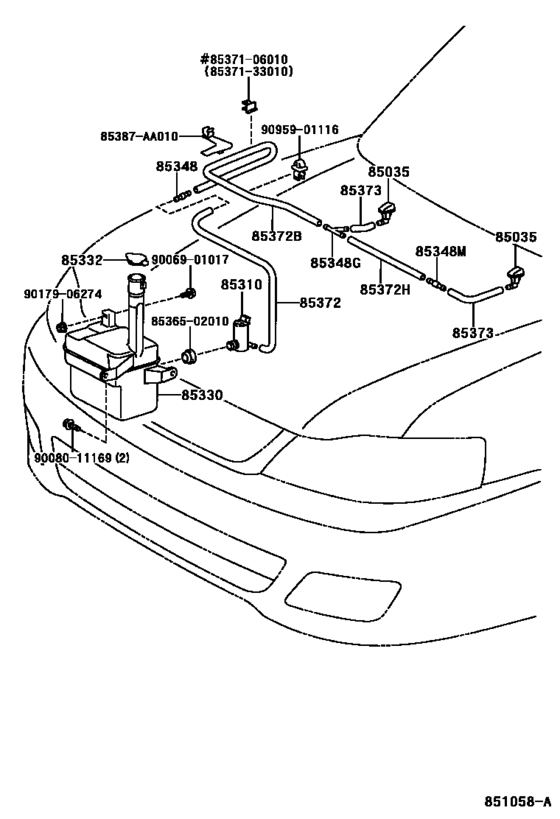

Windshield Washer ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85385-41060-A0
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 SU. WHITE PM,051 |
85385-41060-A0 |
— | ||
|
85035
|
85035
85385-41060-B0
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 SILVER ME,1C8 |
85385-41060-B0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-41090-B0
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 SILVER ME,1C8 |
85385-41090-B0 |
— | ||
|
85035
|
85035
85385-41060-C0
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 BLACK,202 |
85385-41060-C0 |
— | ||
|
85035
|
85035
85385-41060-D1
Nozzle Sub-Assy, Washer
[06.2002 - 01.2005] MCX20 DK.RED MC.,3Q7 |
85385-41060-D1 |
— | ||
|
85035
|
85035
85385-41060-E0
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 BEIGE M.M,4Q2 |
85385-41060-E0 |
— | ||
|
85035
|
85035
85385-41060-G1
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 GREEN MC,6R1 |
85385-41060-G1 |
— | ||
|
85035
|
85035
85385-41060-G2
Nozzle Sub-Assy, Washer
[06.2002 - 01.2005] MCX20 DK. GREEN MC.,6S7 |
85385-41060-G2 |
— | ||
|
85035
|
85035
85385-41100
Nozzle Sub-Assy, Washer
[08.1999 - 06.2002] MCX20 |
85385-41100 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-44010 Nozzle Sub-Assy, Washer[08.1999 - 06.2002] MCX20 |
85381-44010 |
from US $11.27 |
||
|
85310
|
85310
85330-06030
Motor And Pump Assy, Windshield Washer
[08.1999 - 06.2002] MCX20 |
85330-06030 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-06031 Motor And Pump Assy, Windshield Washer[08.1999 - 06.2002] MCX20 |
85330-06031 |
US $116.38 |
||
|
85330
|
85330
85315-07030 Jar Assy, Windshield Washer[08.1999 - 06.2002] MCX20 |
85315-07030 |
US $120.85 |
||
|
85332
|
85332
85316-06020 Cap, Windshield Washer Jar[08.1999 - 05.2000] MCX20 |
85316-06020 |
US $4.80 |
||
| replacement | |||||
|
85332
|
85332
85316-06021 Cap, Windshield Washer Jar[08.1999 - 05.2000] MCX20 |
85316-06021 |
from US $4.95 |
||
|
85332
|
85332
85316-06021 Cap, Windshield Washer Jar[05.2000 - 06.2002] MCX20 |
85316-06021 |
from US $4.95 |
||
|
85348
|
85348
85375-AA010 Joint, Windshield Washer Hose, No.1[08.1999 - 06.2002] MCX20 |
85375-AA010 |
US $1.31 |
||
| replacement | |||||
|
85348
|
85348
85334-22470 Joint, Windshield Washer Hose, No.1[08.1999 - 06.2002] MCX20 |
85334-22470 |
from US $0.84 |
||
|
85348G
|
85348G
85378-AA010 Joint, Windshield Washer Hose, No.2[08.1999 - 06.2002] MCX20 |
85378-AA010 |
US $3.79 |
||
| replacement | |||||
|
85348G
|
85348G
85378-0E010
Joint, Windshield Washer Hose, No.2
[08.1999 - 06.2002] MCX20 |
85378-0E010 |
— | ||
|
85348M
|
85348M
85375-06020 Joint, Windshield Washer Hose, No.3[08.1999 - 06.2002] MCX20 |
85375-06020 |
US $2.62 |
||
| replacement | |||||
|
85348M
|
85348M
85375-0E010
Valve Sub-Assy, Washer No.2
[08.1999 - 06.2002] MCX20 |
85375-0E010 |
— | ||
|
85372
|
85372
85374-07020 Hose, Windshield Washer (From Joint To Joint), No.1[08.1999 - 06.2002] MCX20 L=50 |
85374-07020 |
US $22.42 |
||
|
85372B
|
85372B
85374-07030 Hose, Windshield Washer (From Joint To Joint), No.2[08.1999 - 06.2002] MCX20 L=2150 |
85374-07030 |
US $27.08 |
||
|
85372H
|
85372H
85374-07040 Hose, Windshield Washer (From Joint To Joint), No.3[08.1999 - 06.2002] MCX20 L=530 |
85374-07040 |
US $12.08 |
||
| replacement | |||||
|
85372H
|
85372H
85374-AE041
Hose, Windshield Washer (From Joint To Joint), No.3
[08.1999 - 06.2002] MCX20 L=530 |
85374-AE041 |
— | ||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1999 - 06.2002] MCX20 *H,L=130 |
90099-33080 |
US $9.43 |
||
|
85387AA010
|
85387AA010
85387-AA010
Clamp No.1 (For Windseield Washer)
|
85387-AA010 |
— | ||
| replacement | |||||
|
85387AA010
|
85387AA010
85387-22410 Clamp No.1 (For Windseield Washer) |
85387-22410 |
from US $3.14 |
||
|
8536502010
|
8536502010
85365-02010 Bush, Windshield Washer Jar |
85365-02010 |
US $9.76 |
||
|
8537106010
|
8537106010
85371-06010
Clamp, Washer, No.2
|
85371-06010 |
— | ||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
from US $1.33 |
||
|
9006901017
|
9006901017
90069-01017 New Genuine Part |
90069-01017 |
US $1.60 |
||
|
9008011169
|
9008011169
90080-11169 BOLT WWASHER |
90080-11169 |
US $0.83 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9095901116
|
9095901116
90959-01116 BRACKET |
90959-01116 |
from US $0.96 |
||
