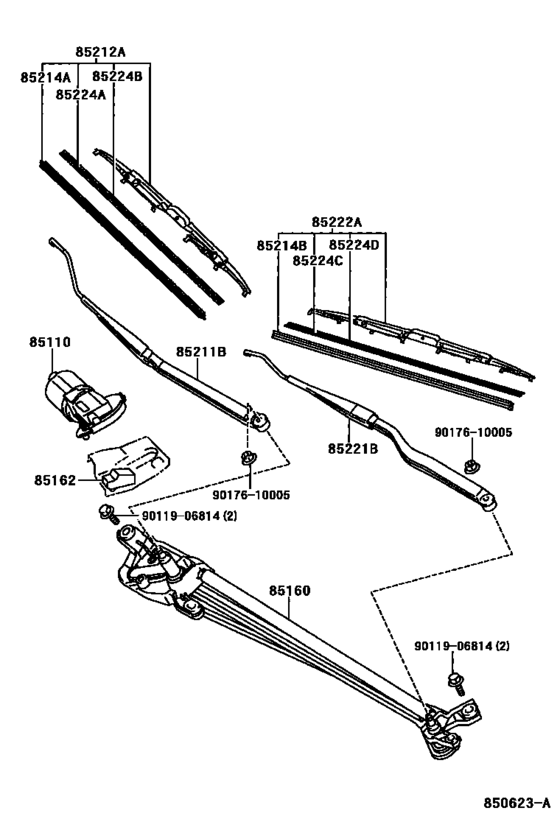

Windshield Wiper ([08.1999 - 06.2002] (9908-0206)) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-07030
Motor Assy, Windshield Wiper
[08.1999 - 06.2002] MCX20 |
85110-07030 |
— | ||
|
85160
|
85160
85150-07030
Link Assy, Windshield Wiper
[08.1999 - 06.2002] MCX20 |
85150-07030 |
— | ||
|
85162
|
85162
85162-41010 Pivot, Windshield Wiper Link, No.2WINDSHIELD WIPER LINK, NO.2 [08.1999 - 06.2002] MCX20 |
85162-41010 |
US $5.24 |
||
|
85211B
|
85211B
85211-07030 Arm, Front Wiper, RhFR WIPER, RH [08.1999 - 06.2002] MCX20 |
85211-07030 |
US $80.08 |
||
|
85212A
|
85212A
85212-07050 Blade, Fr Wiper, Rh[08.1999 - 02.2000] MCX20 |
85212-07050 |
US $33.20 |
||
| replacement | |||||
|
85212A
|
85212A
85212-07060 Blade, Fr Wiper, Rh[08.1999 - 02.2000] MCX20 |
85212-07060 |
US $28.83 |
||
|
85212A
|
85212A
85212-07060 Blade, Fr Wiper, Rh[02.2000 - 06.2002] MCX20 |
85212-07060 |
US $28.83 |
||
|
85214A
|
85214A
85214-07030 Rubber, Wiper, Rh[02.2000 - 06.2002] MCX20 |
85214-07030 |
US $12.08 |
||
|
85214A
|
85214A
85214-07060
Rubber, Wiper, Rh
[08.1999 - 02.2000] MCX20 |
85214-07060 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-07030 Rubber, Wiper, Rh[08.1999 - 02.2000] MCX20 |
85214-07030 |
US $12.08 |
||
|
85214B
|
85214B
85214-07040 Rubber, Wiper, Rh[02.2000 - 06.2002] MCX20 |
85214-07040 |
US $13.69 |
||
|
85214B
|
85214B
85214-07070
Rubber, Wiper, Lh
[08.1999 - 02.2000] MCX20 |
85214-07070 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-07040 Rubber, Wiper, Rh[08.1999 - 02.2000] MCX20 |
85214-07040 |
US $13.69 |
||
|
85221B
|
85221B
85221-07030
Arm, Front Wiper, Lh
[08.1999 - 06.2002] MCX20 |
85221-07030 |
— | ||
|
85222A
|
85222A
85222-07050 Blade, Fr Wiper, Lh[08.1999 - 02.2000] MCX20 |
85222-07050 |
US $62.03 |
||
| replacement | |||||
|
85222A
|
85222A
85222-07060 Blade, Fr Wiper, Lh[08.1999 - 02.2000] MCX20 |
85222-07060 |
US $53.87 |
||
|
85222A
|
85222A
85222-07060 Blade, Fr Wiper, Lh[02.2000 - 06.2002] MCX20 |
85222-07060 |
US $53.87 |
||
|
85224A
|
85224A
85224-07030
Plate, Wiper Rubber Backing, No.1
[02.2000 - 06.2002] MCX20 |
85224-07030 |
— | ||
|
85224A
|
85224A
85224-08030
Plate, Wiper Rubber Backing, No.1
[08.1999 - 02.2000] MCX20 |
85224-08030 |
— | ||
|
85224B
|
85224B
85224-07030
Plate, Wiper Rubber Backing, No.1
[02.2000 - 06.2002] MCX20 |
85224-07030 |
— | ||
|
85224B
|
85224B
85224-08030
Plate, Wiper Rubber Backing, No.1
[08.1999 - 02.2000] MCX20 |
85224-08030 |
— | ||
|
85224C
|
85224C
85224-07040 Plate, Wiper Rubber Backing, No.1[02.2000 - 06.2002] MCX20 |
85224-07040 |
US $6.41 |
||
|
85224C
|
85224C
85224-08020
Plate, Wiper Rubber Backing, No.3
[08.1999 - 02.2000] MCX20 |
85224-08020 |
— | ||
|
85224D
|
85224D
85224-07040 Plate, Wiper Rubber Backing, No.1[02.2000 - 06.2002] MCX20 |
85224-07040 |
US $6.41 |
||
|
85224D
|
85224D
85224-08020
Plate, Wiper Rubber Backing, No.3
[08.1999 - 02.2000] MCX20 |
85224-08020 |
— | ||
|
9011906814
|
9011906814
90119-06814 BOLT WWASHER |
90119-06814 |
US $1.89 |
||
|
9017610005
|
9017610005
90176-10005 Nut (For Front Wiper Arm Setting) |
90176-10005 |
from US $1.05 |
||
