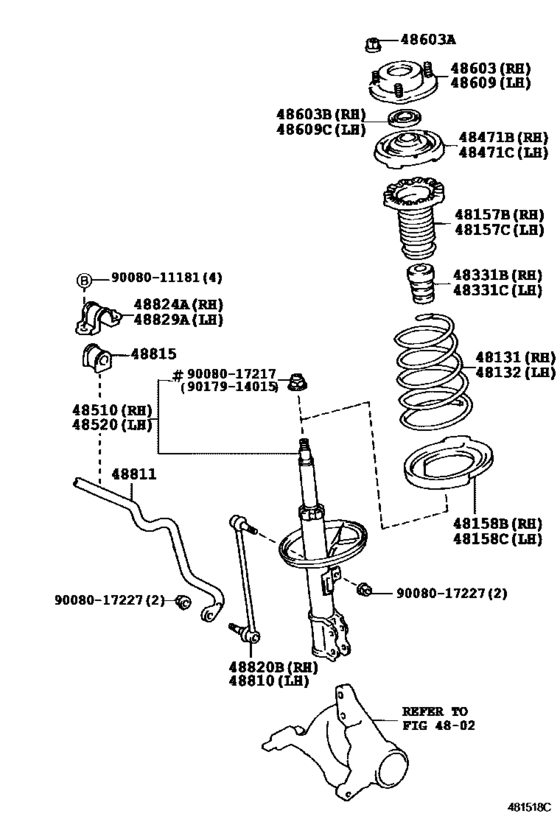

Front Spring & Shock Absorber ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-AC020
Spring, Front Coil, Rh
[08.1999 - 04.2000] MCX20 L=374.5 |
48131-AC020 |
— | ||
|
48131
|
48131
48131-AC030
Spring, Front Coil, Rh
[04.2000 - 06.2002] MCX20 |
48131-AC030 |
— | ||
|
48131
|
48131
48131-AC040
Spring, Front Coil, Rh
[06.2003 - 04.2004] MCX20 |
48131-AC040 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-AC041
Spring, Front Coil, Rh
[06.2003 - 04.2004] MCX20 |
48131-AC041 |
— | ||
|
48131
|
48131
48131-AC041
Spring, Front Coil, Rh
[05.2004 - 01.2005] MCX20 |
48131-AC041 |
— | ||
|
48132
|
48132
48131-AC020
Spring, Front Coil, Rh
[08.1999 - 04.2000] MCX20 L=374.5 |
48131-AC020 |
— | ||
|
48132
|
48132
48131-AC030
Spring, Front Coil, Rh
[04.2000 - 06.2002] MCX20 |
48131-AC030 |
— | ||
|
48132
|
48132
48131-AC040
Spring, Front Coil, Rh
[06.2003 - 04.2004] MCX20 |
48131-AC040 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-AC041
Spring, Front Coil, Rh
[06.2003 - 04.2004] MCX20 |
48131-AC041 |
— | ||
|
48132
|
48132
48131-AC041
Spring, Front Coil, Rh
[05.2004 - 01.2005] MCX20 |
48131-AC041 |
— | ||
|
48157B
|
48157B
48157-07010
Insulator, Front Coil Spring, Upper Rh
[08.1999 - 06.2002] MCX20 |
48157-07010 |
— | ||
|
48157B
|
48157B
48157-07011
Insulator, Front Coil Spring, Upper Rh
[07.2003 - 01.2005] MCX20 |
48157-07011 |
— | ||
| replacement | |||||
|
48157B
|
48157B
48157-07012
Insulator, Front Coil Spring, Upper Rh
[07.2003 - 01.2005] MCX20 |
48157-07012 |
— | ||
|
48157C
|
48157C
48157-07010
Insulator, Front Coil Spring, Upper Rh
[08.1999 - 06.2002] MCX20 |
48157-07010 |
— | ||
|
48157C
|
48157C
48157-07011
Insulator, Front Coil Spring, Upper Rh
[07.2003 -] MCX20 |
48157-07011 |
— | ||
| replacement | |||||
|
48157C
|
48157C
48157-07012
Insulator, Front Coil Spring, Upper Rh
[07.2003 -] MCX20 |
48157-07012 |
— | ||
|
48158B
|
48158B
48158-07010 Insulator, Front Coil Spring, Lower Rh[08.1999 - 06.2002] MCX20 |
48158-07010 |
US $19.22 |
||
|
48158B
|
48158B
48158-33031 Insulator, Front Coil Spring, Lower[06.2003 - 01.2005] MCX20 (J) |
48158-33031 |
from US $20.16 |
||
|
48158B
|
48158B
48158-AA030
Insulator, Front Coil Spring, Lower Rh
[06.2003 - 01.2005] MCX20 (L) |
48158-AA030 |
— | ||
| replacement | |||||
|
48158B
|
48158B
48158-33031 Insulator, Front Coil Spring, Lower[06.2003 - 01.2005] MCX20 (L) |
48158-33031 |
from US $20.16 |
||
|
48158C
|
48158C
48158-07010 Insulator, Front Coil Spring, Lower Rh[08.1999 - 06.2002] MCX20 |
48158-07010 |
US $19.22 |
||
|
48158C
|
48158C
48158-33031 Insulator, Front Coil Spring, Lower[06.2003 - 01.2005] MCX20 (J) |
48158-33031 |
from US $20.16 |
||
|
48158C
|
48158C
48158-AA030
Insulator, Front Coil Spring, Lower Rh
[06.2003 - 01.2005] MCX20 (L) |
48158-AA030 |
— | ||
| replacement | |||||
|
48158C
|
48158C
48158-33031 Insulator, Front Coil Spring, Lower[06.2003 - 01.2005] MCX20 (L) |
48158-33031 |
from US $20.16 |
||
|
48331B
|
48331B
48331-06011
Bumper, Front Spring, Rh
[08.1999 - 06.2002] MCX20 |
48331-06011 |
— | ||
|
48331C
|
48331C
48331-06011
Bumper, Front Spring, Rh
[08.1999 - 06.2002] MCX20 |
48331-06011 |
— | ||
|
48471B
|
48471B
48471-06030
Seat, Front Coil Spring, Upper Rh
[12.2001 - 06.2002] MCX20 |
48471-06030 |
— | ||
| replacements | |||||
|
48471B
|
48471B
48471-0E011
Seat, Front Coil Spring, Upper Rh
[12.2001 - 06.2002] MCX20 |
48471-0E011 |
— | ||
|
48471B
|
48471B
48471-AA010
Seat, Front Coil Spring, Upper Rh
[12.2001 - 06.2002] MCX20 |
48471-AA010 |
— | ||
|
48471B
|
48471B
48471-41010 Seat, Front Coil Spring, Upper[08.1999 - 12.2001] MCX20 |
48471-41010 |
from US $27.83 |
||
|
48471B
|
48471B
48471-AA010
Seat, Front Coil Spring, Upper Rh
[04.2004 - 01.2005] MCX20 |
48471-AA010 |
— | ||
|
48471C
|
48471C
48471-06030
Seat, Front Coil Spring, Upper Rh
[12.2001 - 06.2002] MCX20 |
48471-06030 |
— | ||
| replacements | |||||
|
48471C
|
48471C
48471-0E011
Seat, Front Coil Spring, Upper Rh
[12.2001 - 06.2002] MCX20 |
48471-0E011 |
— | ||
|
48471C
|
48471C
48471-AA010
Seat, Front Coil Spring, Upper Rh
[12.2001 - 06.2002] MCX20 |
48471-AA010 |
— | ||
|
48471C
|
48471C
48471-41010 Seat, Front Coil Spring, Upper[08.1999 - 12.2001] MCX20 |
48471-41010 |
from US $27.83 |
||
|
48471C
|
48471C
48471-AA010
Seat, Front Coil Spring, Upper Rh
[04.2004 - 01.2005] MCX20 |
48471-AA010 |
— | ||
|
48510
|
48510
48510-A9100
Absorber Assy, Shock, Front Rh
[08.1999 - 06.2002] MCX20 MARK 48510-AC020 |
48510-A9100 |
— | ||
|
48510
|
48510
48510-A9410
Absorber Assy, Shock, Front Rh
[06.2003 - 01.2005] MCX20 MARK 48510-AC030 |
48510-A9410 |
— | ||
|
48520
|
48520
48520-A9080
Absorber Assy, Shock, Front Lh
[08.1999 - 06.2002] MCX20 MARK 48520-AC020 |
48520-A9080 |
— | ||
|
48520
|
48520
48520-A9270
Absorber Assy, Shock, Front Lh
[06.2003 - 01.2005] MCX20 MARK 48520-AC030 |
48520-A9270 |
— | ||
|
48603
|
48603
48603-06011 Support Sub-Assy, Front Suspension, Rh[08.1999 - 06.2002] MCX20 |
48603-06011 |
US $41.50 |
||
|
48603A
|
48603A
90080-17225
Nut(For Front Suspension Support)
[06.2003 -] MCX20 |
90080-17225 |
— | ||
|
48603A
|
48603A
90178-10008 Nut (For Rear Axle Bearing Case Rh)[08.1999 - 07.2001] MCX20 |
90178-10008 |
US $1.60 |
||
|
48603A
|
48603A
90178-10018 Nut(For Front Suspension Support)[07.2001 - 06.2002] MCX20 |
90178-10018 |
US $2.72 |
||
|
48603B
|
48603B
90080-36070
Bearing(For Front Suspension Support Rh)
[08.1999 - 06.2002] MCX20 (L) |
90080-36070 |
— | ||
| replacement | |||||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[08.1999 - 06.2002] MCX20 (L) |
90903-63014 |
from US $32.07 |
||
|
48603B
|
48603B
90903-63002
Bearing(For Front Suspension Support)
[08.1999 - 06.2002] MCX20 (J) |
90903-63002 |
— | ||
| replacement | |||||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[08.1999 - 06.2002] MCX20 (J) |
90903-63014 |
from US $32.07 |
||
|
48609
|
48609
48609-06061 Support Sub-Assy, Front Suspension, Lh[08.1999 - 06.2002] MCX20 |
48609-06061 |
US $41.50 |
||
|
48609C
|
48609C
90080-36070
Bearing(For Front Suspension Support Rh)
[08.1999 - 06.2002] MCX20 (L) |
90080-36070 |
— | ||
| replacement | |||||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[08.1999 - 06.2002] MCX20 (L) |
90903-63014 |
from US $32.07 |
||
|
48609C
|
48609C
90903-63002
Bearing(For Front Suspension Support)
[08.1999 - 06.2002] MCX20 (J) |
90903-63002 |
— | ||
| replacement | |||||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[08.1999 - 06.2002] MCX20 (J) |
90903-63014 |
from US $32.07 |
||
|
48810
|
48810
48810-06030 Link Assy, Front Stabilizer, Lh[08.1999 - 06.2002] MCX20 |
48810-06030 |
US $116.28 |
||
|
48811
|
48811
48811-AC020 Bar, Stabilizer, Front[08.1999 - 06.2002] MCX20 |
48811-AC020 |
US $131.04 |
||
|
48815
|
48815
48815-06050
Bush, Front Stabilizer Bar, No.1
[08.1999 - 06.2002] MCX20 |
48815-06050 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-33050 Bush, Front Stabilizer Bar, No.1[08.1999 - 06.2002] MCX20 |
48815-33050 |
from US $8.59 |
||
|
48820B
|
48820B
48820-06030 Link Assy, Front Stabilizer[08.1999 - 06.2002] MCX20 |
48820-06030 |
US $86.89 |
||
|
48824A
|
48824A
48824-07010 Bracket, Stabilizer, Front[08.1999 - 06.2002] MCX20 |
48824-07010 |
US $13.54 |
||
| replacement | |||||
|
48824A
|
48824A
48824-33020 Bracket, Stabilizer, Front[08.1999 - 06.2002] MCX20 |
48824-33020 |
from US $4.51 |
||
|
48829A
|
48829A
48824-07010 Bracket, Stabilizer, Front[08.1999 - 06.2002] MCX20 |
48824-07010 |
US $13.54 |
||
| replacement | |||||
|
48829A
|
48829A
48824-33020 Bracket, Stabilizer, Front[08.1999 - 06.2002] MCX20 |
48824-33020 |
from US $4.51 |
||
|
9008011181
|
9008011181
90080-11181
New Genuine Part
|
90080-11181 |
— | ||
|
9008017217
|
9008017217
90080-17217
Nut(For Front Support To Front Shock Absorber Rh)
|
90080-17217 |
— | ||
|
9008017227
|
9008017227
90080-17227
Nut(For Rear Stabilizer Link)
|
90080-17227 |
— | ||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.93 |
||
