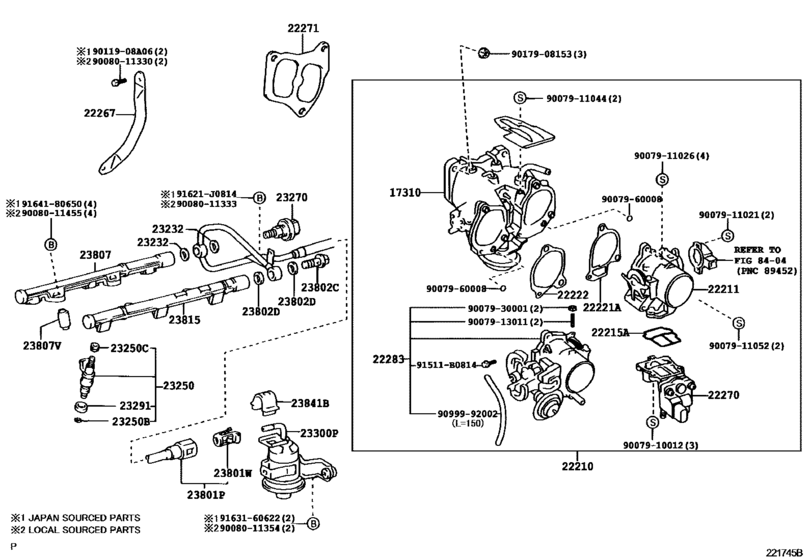

Fuel Injection System ([05.2004 - ] (0405- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17310
|
17310
17310-0A010
Valve Assy, Intake Air Control, No.1
[08.1999 - 06.2002] 1MZFE..MCX20 |
17310-0A010 |
— | ||
|
17310
|
17310
17310-20091
Valve Assy, Intake Air Control, No.1
[05.2004 - 01.2005] 1MZFE..MCX20 |
17310-20091 |
— | ||
|
22210
|
22210
22210-0A110
Body Assy, Throttle
[08.1999 - 06.2002] 1MZFE..MCX20 |
22210-0A110 |
— | ||
|
22210
|
22210
22210-20190
Body Assy, Throttle
[05.2004 -] 1MZFE..MCX20 |
22210-20190 |
— | ||
|
22211
|
22211
22211-0A110 Body, Throttle[08.1999 - 06.2002] 1MZFE..MCX20 |
22211-0A110 |
US $684.32 |
||
|
22211
|
22211
22211-20190 Body, Throttle[05.2004 - 01.2005] 1MZFE..MCX20 |
22211-20190 |
US $684.32 |
||
|
22215A
|
22215A
22215-0A010
Gasket, Idle Speed Control Valve
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
22215-0A010 |
— | ||
|
22215A
|
22215A
22215-20010 Gasket, Idle Speed Control Valve[08.1999 - 06.2002] 1MZFE..MCX20 (J) |
22215-20010 |
from US $3.86 |
||
|
22215A
|
22215A
22215-7A680 Gasket, Throttle Body Cover[05.2004 - 01.2005] 1MZFE..MCX20 |
22215-7A680 |
from US $3.45 |
||
|
22221A
|
22221A
22221-0A110 Gasket, Intake Air Control Valve, No.1[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
22221-0A110 |
US $5.97 |
||
|
22221A
|
22221A
22221-20132 Gasket, Intake Air Control Valve, No.1[08.1999 - 06.2002] 1MZFE..MCX20 (J) |
22221-20132 |
from US $6.77 |
||
|
22222
|
22222
22222-0A110 Gasket, Intake Air Control Valve, No.2[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
22222-0A110 |
US $5.97 |
||
|
22222
|
22222
22222-20132 Gasket, Intake Air Control Valve, No.2[08.1999 - 06.2002] 1MZFE..MCX20 (J) |
22222-20132 |
from US $7.23 |
||
|
22267
|
22267
22267-0A010 Bracket, Throttle Body[08.1999 - 06.2002] 1MZFE..MCX20 |
22267-0A010 |
US $33.63 |
||
|
22270
|
22270
22270-0A060 Valve Assy, Idle Speed Control(For Thlottle Body)[08.2000 - 06.2002] 1MZFE..MCX20 (L) |
22270-0A060 |
US $599.87 |
||
|
22270
|
22270
22270-20060 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1999 - 08.2000] 1MZFE..MCX20 |
22270-20060 |
US $378.56 |
||
|
22270
|
22270
22270-20070 Valve Assy, Idle Speed Control(For Thlottle Body)[05.2004 - 01.2005] 1MZFE..MCX20 |
22270-20070 |
US $601.33 |
||
|
22271
|
22271
22271-0A020 Gasket, Throttle Body[08.1999 - 06.2002] 1MZFE..MCX20 |
22271-0A020 |
US $5.82 |
||
|
22283
|
22283
22283-0A110 Body, Throttle, No.2THROTTLE, NO.2 [08.1999 - 06.2002] 1MZFE..MCX20 |
22283-0A110 |
US $240.24 |
||
|
22283
|
22283
22283-20190
Body, Throttle, No.2
[05.2004 - 01.2005] 1MZFE..MCX20 |
22283-20190 |
— | ||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.1999 - 06.2002] 1MZFE..MCX20 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-0A010
Injector Assy, Fuel
[08.1999 - 06.2002] 1MZFE..MCX20 (L) |
23209-0A010 |
— | ||
|
23250
|
23250
23209-20020 Injector Assy, Fuel[08.1999 - 06.2002] 1MZFE..MCX20 (J) |
23209-20020 |
US $252.96 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.1999 - 06.2002] 1MZFE..MCX20 |
90301-07024 |
from US $2.91 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1999 - 06.2002] 1MZFE..MCX20 |
90480-13005 |
from US $2.50 |
||
|
23270
|
23270
23270-62010
Damper Assy, Fuel Pressure Pulsation
[08.1999 - 06.2002] 1MZFE..MCX20 |
23270-62010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[08.1999 - 06.2002] 1MZFE..MCX20 |
23207-20011 |
from US $63.12 |
||
|
23270
|
23270
23270-62011 Damper Assy, Fuel Pressure Pulsation[10.2004 - 01.2005] 1MZFE..MCX20 |
23270-62011 |
US $71.64 |
||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[10.2004 - 01.2005] 1MZFE..MCX20 |
23207-20011 |
from US $63.12 |
||
|
23291
|
23291
23291-20010 Insulator, Injector Vibration[08.1999 - 06.2002] 1MZFE..MCX20 |
23291-20010 |
from US $2.62 |
||
|
23300P
|
23300P
23300-20100 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1999 - 08.2000] 1MZFE..MCX20 |
23300-20100 |
from US $63.75 |
||
|
23300P
|
23300P
23300-20101 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.2000 - 06.2002] 1MZFE..MCX20 |
23300-20101 |
from US $63.53 |
||
|
23801P
|
23801P
23801-20070
Pipe Sub-Assy, Fuel, No.1
[08.1999 - 08.2000] 1MZFE..MCX20 |
23801-20070 |
— | ||
|
23801P
|
23801P
23801-20130 Pipe Sub-Assy, Fuel, No.1FUEL, NO.1 [08.2000 - 06.2002] 1MZFE..MCX20 |
23801-20130 |
US $99.01 |
||
|
23801W
|
23801W
90923-07010 Clip, Fuel Tube Connector[08.1999 - 06.2002] 1MZFE..MCX20 |
90923-07010 |
from US $2.83 |
||
|
23802C
|
23802C
90401-12015 Bolt, Union(For Fuel Pipe No.2)[08.1999 - 06.2002] 1MZFE..MCX20 |
90401-12015 |
US $5.07 |
||
|
23802D
|
23802D
90430-12026 Gasket[08.1999 - 06.2002] 1MZFE..MCX20 |
90430-12026 |
from US $0.94 |
||
|
23807
|
23807
23814-20020 Pipe Sub-Assy, Fuel Delivery[08.1999 - 06.2002] 1MZFE..MCX20 |
23814-20020 |
US $103.38 |
||
| replacement | |||||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[08.1999 - 06.2002] 1MZFE..MCX20 |
23814-20021 |
US $85.90 |
||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[01.2004 - 01.2005] 1MZFE..MCX20 |
23814-20021 |
US $85.90 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[08.1999 - 06.2002] 1MZFE..MCX20 |
90561-08020 |
from US $3.20 |
||
|
23815
|
23815
23815-20020
Pipe, Fuel Delivery, No.2
[08.1999 - 06.2002] 1MZFE..MCX20 |
23815-20020 |
— | ||
| replacement | |||||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
23815-20021 |
US $101.34 |
||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[01.2004 - 01.2005] 1MZFE..MCX20 |
23815-20021 |
US $101.34 |
||
|
23841B
|
23841B
23841-20020 Clamp, Fuel Pipe, No.1(For Efi)[08.1999 - 06.2002] 1MZFE..MCX20 |
23841-20020 |
US $2.80 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
9011908A06
|
9011908A06
90119-08A06 BOLT WWASHER |
90119-08A06 |
US $2.08 |
||
|
9007910012
|
9007910012
90079-10012 SCREW |
90079-10012 |
US $1.76 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9007911026
|
9007911026
90079-11026 New Genuine Part |
90079-11026 |
US $1.60 |
||
|
9007911044
|
9007911044
90079-11044
New Genuine Part
|
90079-11044 |
— | ||
|
9007911052
|
9007911052
90079-11052 New Genuine Part |
90079-11052 |
US $1.60 |
||
|
9007913011
|
9007913011
90079-13011 New Genuine Part |
90079-13011 |
US $1.92 |
||
|
9007930001
|
9007930001
90079-30001 Nut |
90079-30001 |
US $2.08 |
||
|
9007960008
|
9007960008
90079-60008 RING O |
90079-60008 |
US $3.84 |
||
|
9008011330
|
9008011330
90080-11330
New Genuine Part
|
90080-11330 |
— | ||
|
9008011333
|
9008011333
90080-11333
New Genuine Part
|
90080-11333 |
— | ||
|
9008011354
|
9008011354
90080-11354 New Genuine Part |
90080-11354 |
US $0.52 |
||
|
9008011455
|
9008011455
90080-11455 New Genuine Part |
90080-11455 |
US $1.02 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
