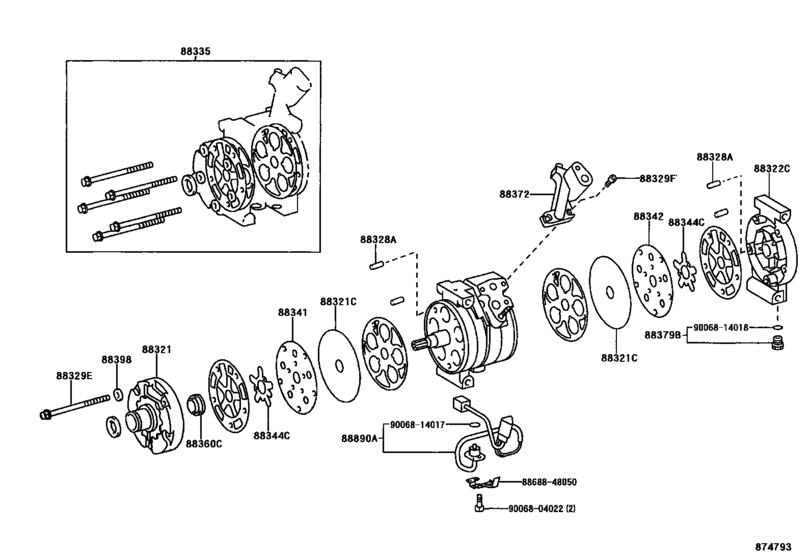

Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-06070
Head, Cooler Compressor Cylinder
[05.2001 - 06.2002] MCX20 |
88321-06070 |
— | ||
|
88321
|
88321
88321-48010
Head, Cooler Compressor Cylinder
[08.1999 - 05.2001] MCX20 |
88321-48010 |
— | ||
|
88321C
|
88321C
88343-07010 Reed, Suction ValveSUCTION VALVE [08.1999 - 12.2000] MCX20 |
88343-07010 |
US $94.64 |
||
|
88321C
|
88321C
88343-0C040
Reed, Suction Valve
[12.2000 - 06.2002] MCX20 |
88343-0C040 |
— | ||
|
88322C
|
88322C
88322-06070
Head, Cooler Compressor Cylinder
[05.2001 - 06.2002] MCX20 |
88322-06070 |
— | ||
|
88322C
|
88322C
88322-32060
Head, Cylinder, Rear
[08.1999 - 05.2001] MCX20 |
88322-32060 |
— | ||
|
88328A
|
88328A
90068-08001
Pin, Compressor
[08.1999 - 12.2000] MCX20 |
90068-08001 |
— | ||
|
88328A
|
88328A
90068-08002
Pin, Compressor
[12.2000 - 06.2002] MCX20 |
90068-08002 |
— | ||
|
88329E
|
88329E
88329-07010 Bolt, Compressor, No.1COMPRESSOR, NO.1 [08.1999 - 12.2000] MCX20 |
88329-07010 |
US $6.70 |
||
|
88329E
|
88329E
88329-0C010
Bolt, Compressor, No.1
[12.2000 - 06.2002] MCX20 |
88329-0C010 |
— | ||
|
88329F
|
88329F
88329-16030
Bolt, Through
[08.1999 - 06.2002] MCX20 |
88329-16030 |
— | ||
|
88335
|
88335
88335-48070
Gasket Kit, Overhaul
[08.1999 - 06.2002] MCX20 |
88335-48070 |
— | ||
|
88341
|
88341
88341-07010 Plate, Front ValveFRONT VALVE [08.1999 - 12.2000] MCX20 |
88341-07010 |
US $54.89 |
||
|
88341
|
88341
88341-0C010
Plate, Front Valve
[12.2000 - 06.2002] MCX20 |
88341-0C010 |
— | ||
|
88342
|
88342
88342-07010 Plate, Compressor Valve, RrCOMPRESSOR VALVE, RR [08.1999 - 12.2000] MCX20 |
88342-07010 |
US $54.89 |
||
|
88342
|
88342
88342-0C010
Plate, Compressor Valve, Rr
[12.2000 - 06.2002] MCX20 |
88342-0C010 |
— | ||
|
88344C
|
88344C
88344-07010 Reed, Discharge ValveDISCHARGE VALVE [08.1999 - 12.2000] MCX20 |
88344-07010 |
US $12.38 |
||
|
88344C
|
88344C
88344-0C030
Reed, Discharge Valve
[12.2000 - 05.2001] MCX20 |
88344-0C030 |
— | ||
|
88344C
|
88344C
88344-32010
Reed, Discharge Valve
[05.2001 - 06.2002] MCX20 |
88344-32010 |
— | ||
|
88360C
|
88360C
88360-32010
Seal Assy, Shaft
[08.1999 - 06.2002] MCX20 |
88360-32010 |
— | ||
|
88372
|
88372
88372-48010
Valve, Discharge
[08.1999 - 06.2002] MCX20 |
88372-48010 |
— | ||
|
88379B
|
88379B
88379-32010
Valve, Pressure Relief
[08.1999 - 06.2002] MCX20 |
88379-32010 |
— | ||
|
88398
|
88398
88398-0C010
Packing, Compressor
[05.2001 - 06.2002] MCX20 |
88398-0C010 |
— | ||
|
88398
|
88398
88398-32010
Packing, Compressor
[08.1999 - 05.2001] MCX20 |
88398-32010 |
— | ||
|
88890A
|
88890A
88336-07020 Pick Up, AssyASSY [08.1999 - 05.2001] MCX20 |
88336-07020 |
US $131.04 |
||
|
88890A
|
88890A
88336-07060
Pick Up, Assy
[05.2001 - 06.2002] MCX20 |
88336-07060 |
— | ||
|
8868848050
|
8868848050
88688-48050
Bracket, Cooler
|
88688-48050 |
— | ||
|
9006804022
|
9006804022
90068-04022
New Genuine Part
|
90068-04022 |
— | ||
|
9006814017
|
9006814017
90068-14017 New Genuine Part |
90068-14017 |
US $4.95 |
||
|
9006814018
|
9006814018
90068-14018 New Genuine Part |
90068-14018 |
US $3.93 |
