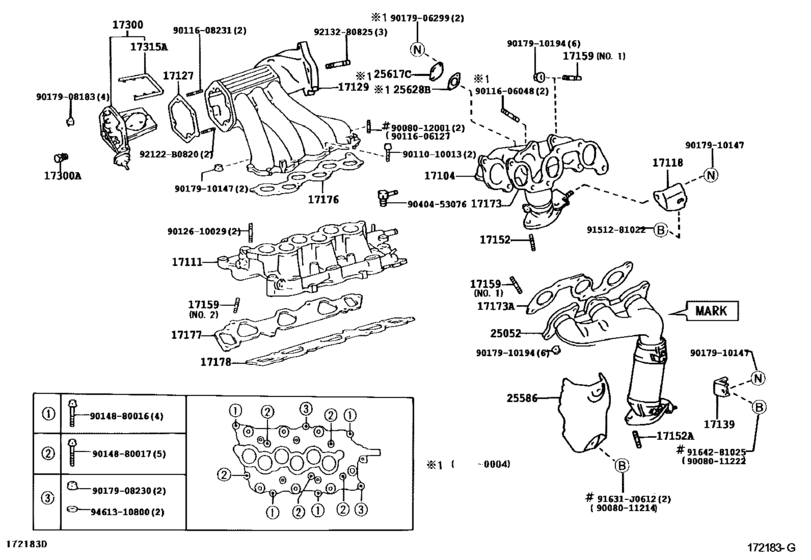

Manifold ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17104-20010 Manifold Sub-Assy, Exhaust, Rh[08.1999 - 04.2000] 1MZFE..MCX20 |
17104-20010 |
US $426.61 |
||
|
17104
|
17104
17104-20030 Manifold Sub-Assy, Exhaust, Rh[04.2000 - 06.2002] 1MZFE..MCX20 |
17104-20030 |
US $414.09 |
||
|
17111
|
17111
17101-0A030
Manifold, Intake
[07.2000 - 06.2002] 1MZFE..MCX20 (L) |
17101-0A030 |
— | ||
| replacement | |||||
|
17111
|
17111
17101-20031 Manifold, Intake[07.2000 - 06.2002] 1MZFE..MCX20 (L) |
17101-20031 |
US $436.80 |
||
|
17111
|
17111
17101-20030 Manifold, Intake[08.1999 - 07.2000] 1MZFE..MCX20 (J) |
17101-20030 |
US $436.80 |
||
| replacement | |||||
|
17111
|
17111
17101-20031 Manifold, Intake[08.1999 - 07.2000] 1MZFE..MCX20 (J) |
17101-20031 |
US $436.80 |
||
|
17111
|
17111
17101-20031 Manifold, Intake[07.2000 - 06.2002] 1MZFE..MCX20 (J) |
17101-20031 |
US $436.80 |
||
|
17118
|
17118
17118-20020 Stay, Manifold[08.1999 - 06.2002] 1MZFE..MCX20 |
17118-20020 |
US $11.21 |
||
|
17127
|
17127
17127-0A010 Gasket, Surge Tank Cover[08.1999 - 06.2002] 1MZFE..MCX20 |
17127-0A010 |
US $9.03 |
||
|
17129
|
17129
17109-0A040 Tank, Intake Air Surge[07.2000 - 06.2002] 1MZFE..MCX20 (L) |
17109-0A040 |
US $608.61 |
||
| replacement | |||||
|
17129
|
17129
17109-20081 Tank, Intake Air Surge[07.2000 - 06.2002] 1MZFE..MCX20 (L) |
17109-20081 |
US $608.61 |
||
|
17129
|
17129
17109-20070 Tank, Intake Air Surge[08.1999 - 07.2000] 1MZFE..MCX20 (J) |
17109-20070 |
US $607.15 |
||
| replacement | |||||
|
17129
|
17129
17109-20081 Tank, Intake Air Surge[08.1999 - 07.2000] 1MZFE..MCX20 (J) |
17109-20081 |
US $608.61 |
||
|
17129
|
17129
17109-20071 Tank, Intake Air Surge[07.2000 - 06.2002] 1MZFE..MCX20 (J) |
17109-20071 |
US $608.61 |
||
| replacement | |||||
|
17129
|
17129
17109-20081 Tank, Intake Air Surge[07.2000 - 06.2002] 1MZFE..MCX20 (J) |
17109-20081 |
US $608.61 |
||
|
17129
|
17129
17109-20081 Tank, Intake Air Surge[06.2002 - 01.2005] 1MZFE..MCX20 (J) |
17109-20081 |
US $608.61 |
||
|
17139
|
17139
17139-20020 Stay, Manifold, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
17139-20020 |
US $11.07 |
||
|
17152
|
17152
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1999 - 06.2002] 1MZFE..MCX20 |
90116-10149 |
from US $2.11 |
||
|
17152A
|
17152A
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1999 - 06.2002] 1MZFE..MCX20 |
90116-10149 |
from US $2.11 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [08.1999 - 07.2001] 1MZFE..MCX20 NO.1 |
90116-10169 |
from US $1.44 |
||
|
17159
|
17159
90126-08013 Bolt, Stud(For Manifold To Cylinder Head)[08.1999 - 06.2002] 1MZFE..MCX20 NO.2 |
90126-08013 |
from US $3.39 |
||
|
17159
|
17159
90126-10030 Bolt, Stud(For Manifold To Cylinder Head)[07.2001 - 06.2002] 1MZFE..MCX20 NO.1 |
90126-10030 |
from US $2.57 |
||
|
17173
|
17173
17173-0A010 Gasket, Exhaust Manifold To Head[08.1999 - 06.2002] 1MZFE..MCX20 |
17173-0A010 |
US $29.27 |
||
|
17173A
|
17173A
17173-0A010 Gasket, Exhaust Manifold To Head[08.1999 - 06.2002] 1MZFE..MCX20 |
17173-0A010 |
US $29.27 |
||
|
17176
|
17176
17176-62030 Gasket, Air Surge Tank To Intake Manifold[08.1999 - 06.2002] 1MZFE..MCX20 |
17176-62030 |
from US $8.85 |
||
|
17177
|
17177
17177-20020 Gasket, Intake Manifold To Head, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
17177-20020 |
from US $27.59 |
||
|
17178
|
17178
17178-20020 Gasket, Intake Manifold To Head, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
17178-20020 |
from US $27.22 |
||
|
17300
|
17300
17300-20020 Valve Assy, Intake Air Control[08.1999 - 06.2002] 1MZFE..MCX20 |
17300-20020 |
US $416.42 |
||
|
17300A
|
17300A
90345-51006 Plug, W/head Taper Screw, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
90345-51006 |
from US $0.96 |
||
|
17315A
|
17315A
17315-62020 Gasket, Intake Air Control Valve[08.1999 - 06.2002] 1MZFE..MCX20 |
17315-62020 |
from US $4.33 |
||
|
25052
|
25052
25052-20080 Converter Sub-Assy, Exhaust Manifold, No.2[08.1999 - 06.2002] 1MZFE..MCX20 MARK 20080 |
25052-20080 |
US $749.84 |
||
| replacement | |||||
|
25052
|
25052
25052-20090 Converter Sub-Assy, Exhaust Manifold, No.2[08.1999 - 06.2002] 1MZFE..MCX20 MARK 20080 |
25052-20090 |
US $749.84 |
||
|
25052
|
25052
25052-20090 Converter Sub-Assy, Exhaust Manifold, No.2[06.2002 - 11.2004] 1MZFE..MCX20 MARK 20080 |
25052-20090 |
US $749.84 |
||
|
25586
|
25586
25586-20010 Insulator, Manifold Converter, No.1[08.1999 - 06.2002] 1MZFE..MCX20 |
25586-20010 |
US $29.99 |
||
|
25617C
|
25617C
25617-20010 Plate, Egr Hole Cover[08.1999 - 04.2000] 1MZFE..MCX20 |
25617-20010 |
US $7.57 |
||
|
25628B
|
25628B
25628-0A010 Gasket, Egr Inlet[08.1999 - 04.2000] 1MZFE..MCX20 |
25628-0A010 |
US $5.68 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
9008011214
|
9008011214
90080-11214 New Genuine Part |
90080-11214 |
US $1.46 |
||
|
9008011222
|
9008011222
90080-11222
New Genuine Part
|
90080-11222 |
— | ||
|
9008012001
|
9008012001
90080-12001 New Genuine Part |
90080-12001 |
US $1.16 |
||
|
9011010013
|
9011010013
90110-10013 BOLT HEXAGON SOCKET |
90110-10013 |
US $2.62 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.72 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011608231
|
9011608231
90116-08231 New Genuine Part |
90116-08231 |
US $3.20 |
||
|
9012610029
|
9012610029
90126-10029 New Genuine Part |
90126-10029 |
US $2.18 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.15 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.08 |
||
|
9017910147
|
9017910147
90179-10147 New Genuine Part |
90179-10147 |
US $2.33 |
||
|
9017910194
|
9017910194
90179-10194 NUT |
90179-10194 |
US $5.76 |
||
|
9040453076
|
9040453076
90404-53076 New Genuine Part |
90404-53076 |
US $6.55 |
||
|
9151281022
|
9151281022
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9213280825
|
9213280825
92132-80825 New Genuine Part |
92132-80825 |
US $2.04 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
