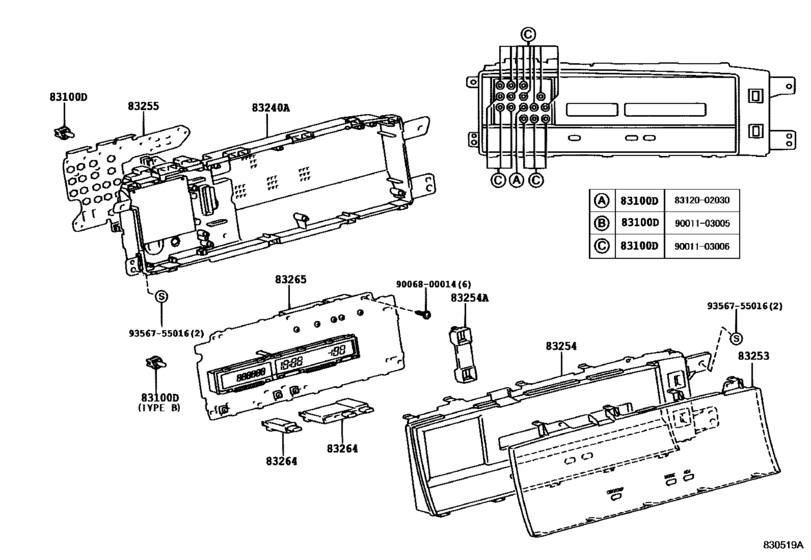

Meter ([08.1999 - 06.2002] ACCESSORY METER (9908-0206)XL) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100D
|
83100D
83120-02030 Bulb, Combination Meter, No.2COMBINATION METER, NO.1 [08.1999 - 06.2002] MCX20 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
83120-02030 |
US $11.21 |
||
|
83100D
|
83100D
90011-03006 Bulb, Combination Meter, No.2COMBINATION METER, NO.2 [08.1999 - 06.2002] MCX20 14V 0.83W,TYPE C:REFER TO ILLUSTRATION |
90011-03006 |
US $5.24 |
||
|
83100D
|
83100D
90011-03008 Bulb, Combination Meter, No.2[06.2002 - 01.2005] MCX20..XL..CND 14V 3.0W; MCX20..XLS..USA 14V 3.0W; MCX20..XL..USA;MCX20..XLS..CND 14V 3.0W |
90011-03008 |
US $5.53 |
||
|
83240A
|
83240A
83240-07010
Case Assy, Center Display
[08.1999 - 06.2002] MCX20..XL..USA |
83240-07010 |
— | ||
|
83240A
|
83240A
83240-07170
Case Assy, Center Display
[06.2002 - 01.2005] MCX20..XL..USA |
83240-07170 |
— | ||
|
83253
|
83253
83253-07010
Glass, Center Display
[08.1999 - 05.2000] MCX20..XL..CND; MCX20..XL..USA W(VSC) |
83253-07010 |
— | ||
|
83253
|
83253
83253-07011
Glass, Center Display
[05.2000 - 06.2002] MCX20..XL |
83253-07011 |
— | ||
|
83254
|
83254
83254-07010
Plate, Center Display Window
[08.1999 - 06.2002] MCX20..XL..USA |
83254-07010 |
— | ||
|
83254
|
83254
83254-07170
Plate, Center Display Window
[06.2002 - 01.2005] MCX20..XL |
83254-07170 |
— | ||
|
83254A
|
83254A
83254-07020
Plate, Center Display Decoration
[08.1999 - 06.2002] MCX20 |
83254-07020 |
— | ||
|
83255
|
83255
83255-07010
Plate Center Display Circuit
[08.1999 - 06.2002] MCX20..XL |
83255-07010 |
— | ||
|
83255
|
83255
83255-07170
Plate Center Display Circuit
[06.2002 - 01.2005] MCX20..XL |
83255-07170 |
— | ||
|
83264
|
83264
83264-07010
Knob, Center Display
[08.1999 - 06.2002] MCX20..XL ODO/TRIP; MCX20..XLS DISPLAY |
83264-07010 |
— | ||
|
83264
|
83264
83264-07020
Knob, Center Display
[08.1999 - 06.2002] MCX20..XL MODE,ADJ |
83264-07020 |
— | ||
|
83265
|
83265
83265-07010
Computer, Center Display
[08.1999 - 06.2002] MCX20..XL..USA |
83265-07010 |
— | ||
|
83265
|
83265
83809-07070
Computer, Center Display
[06.2002 - 01.2005] MCX20..XL..USA |
83809-07070 |
— | ||
|
9006800014
|
9006800014
90068-00014 New Genuine Part |
90068-00014 |
US $1.46 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
