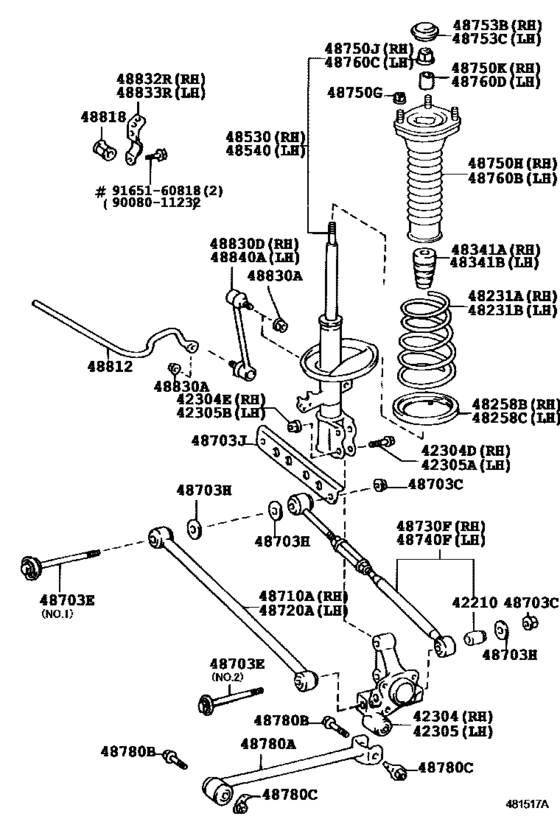

Rear Spring & Shock Absorber ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42210
|
42210
42210-20010 Bush, Rear Suspension Arm, No.1[08.1999 - 06.2002] MCX20 |
42210-20010 |
US $39.67 |
||
|
42304
|
42304
42304-06020
Carrier Sub-Assy, Rear Axle, Rh
[08.1999 - 06.2002] MCX20 |
42304-06020 |
— | ||
|
42304D
|
42304D
90080-10398
Bolt (For Rear Axle Carrier Rh)
[06.2003 -] MCX20 |
90080-10398 |
— | ||
|
42304D
|
42304D
90105-15001 Bolt (For Rear Axle Carrier)[08.1999 - 07.2001] MCX20 |
90105-15001 |
US $6.56 |
||
|
42304D
|
42304D
90901-05001 Bolt (For Rear Axle Carrier Rh)[07.2001 - 06.2002] MCX20 |
90901-05001 |
from US $6.24 |
||
|
42304E
|
42304E
90178-15001 Nut (For Rear Axle Carrier Rh)[07.2001 - 06.2002] MCX20 |
90178-15001 |
US $3.67 |
||
|
42304E
|
42304E
90178-A0028
Nut (For Rear Axle Carrier Rh)
[06.2003 -] MCX20 |
90178-A0028 |
— | ||
|
42304E
|
42304E
90179-15001 Nut (For Rear Axle Carrier)[08.1999 - 07.2001] MCX20 |
90179-15001 |
from US $3.14 |
||
|
42305
|
42305
42305-06020
Carrier Sub-Assy, Rear Axle, Lh
[08.1999 - 06.2002] MCX20 |
42305-06020 |
— | ||
|
42305A
|
42305A
90080-10398
Bolt (For Rear Axle Carrier Rh)
[06.2003 -] MCX20 |
90080-10398 |
— | ||
|
42305A
|
42305A
90105-15001 Bolt (For Rear Axle Carrier)[08.1999 - 07.2001] MCX20 |
90105-15001 |
US $6.56 |
||
|
42305A
|
42305A
90901-05001 Bolt (For Rear Axle Carrier Rh)[07.2001 - 06.2002] MCX20 |
90901-05001 |
from US $6.24 |
||
|
42305B
|
42305B
90178-15001 Nut (For Rear Axle Carrier Rh)[07.2001 - 06.2002] MCX20 |
90178-15001 |
US $3.67 |
||
|
42305B
|
42305B
90178-A0028
Nut (For Rear Axle Carrier Rh)
[06.2003 -] MCX20 |
90178-A0028 |
— | ||
|
42305B
|
42305B
90179-15001 Nut (For Rear Axle Carrier)[08.1999 - 07.2001] MCX20 |
90179-15001 |
from US $3.14 |
||
|
48231A
|
48231A
48231-AC040
Spring, Coil, Rear Rh
[08.1999 - 03.2000] MCX20 |
48231-AC040 |
— | ||
| replacement | |||||
|
48231A
|
48231A
48231-AC041
Spring, Coil, Rear Rh
[08.1999 - 03.2000] MCX20 |
48231-AC041 |
— | ||
|
48231A
|
48231A
48231-AC041
Spring, Coil, Rear Rh
[03.2000 - 06.2002] MCX20 |
48231-AC041 |
— | ||
|
48231A
|
48231A
48231-AC050
Spring, Coil, Rear Rh
[06.2003 - 01.2005] MCX20 |
48231-AC050 |
— | ||
|
48231B
|
48231B
48231-AC040
Spring, Coil, Rear Rh
[08.1999 - 03.2000] MCX20 |
48231-AC040 |
— | ||
| replacement | |||||
|
48231B
|
48231B
48231-AC041
Spring, Coil, Rear Rh
[08.1999 - 03.2000] MCX20 |
48231-AC041 |
— | ||
|
48231B
|
48231B
48231-AC041
Spring, Coil, Rear Rh
[03.2000 - 06.2002] MCX20 |
48231-AC041 |
— | ||
|
48231B
|
48231B
48231-AC050
Spring, Coil, Rear Rh
[06.2003 - 01.2005] MCX20 |
48231-AC050 |
— | ||
|
48258B
|
48258B
48258-06010
Insulator, Rear Coil Spring, Lower Rh
[08.1999 - 08.2000] MCX20 |
48258-06010 |
— | ||
|
48258B
|
48258B
48258-AA010
Insulator, Rear Coil Spring, Lower Rh
[06.2003 - 01.2005] MCX20 |
48258-AA010 |
— | ||
| replacement | |||||
|
48258B
|
48258B
48258-32021 Insulator, Rear Coil Spring, Lower Rh[06.2003 - 01.2005] MCX20 |
48258-32021 |
from US $16.36 |
||
|
48258B
|
48258B
48258-AC010 Insulator, Rear Coil Spring, Lower Rh[08.2000 - 06.2002] MCX20 |
48258-AC010 |
US $11.94 |
||
| replacement | |||||
|
48258B
|
48258B
48258-06250 Insulator, Rear Coil Spring, Lower Rh[08.2000 - 06.2002] MCX20 |
48258-06250 |
US $11.94 |
||
|
48258C
|
48258C
48258-06010
Insulator, Rear Coil Spring, Lower Rh
[08.1999 - 08.2000] MCX20 |
48258-06010 |
— | ||
|
48258C
|
48258C
48258-AA020
Insulator, Rear Coil Spring, Lower Lh
[06.2003 - 01.2005] MCX20 |
48258-AA020 |
— | ||
| replacement | |||||
|
48258C
|
48258C
48258-33010 Insulator, Rear Coil Spring, Lower Lh[06.2003 - 01.2005] MCX20 |
48258-33010 |
US $17.47 |
||
|
48258C
|
48258C
48258-AC010 Insulator, Rear Coil Spring, Lower Rh[08.2000 - 06.2002] MCX20 |
48258-AC010 |
US $11.94 |
||
| replacement | |||||
|
48258C
|
48258C
48258-06250 Insulator, Rear Coil Spring, Lower Rh[08.2000 - 06.2002] MCX20 |
48258-06250 |
US $11.94 |
||
|
48341A
|
48341A
48341-06012
Bumper, Rear Spring, No.1 Rh
[08.1999 - 10.2001] MCX20 |
48341-06012 |
— | ||
| replacement | |||||
|
48341A
|
48341A
48341-AA010 Bumper, Rear Spring, No.1 Rh[08.1999 - 10.2001] MCX20 |
48341-AA010 |
US $12.23 |
||
|
48341A
|
48341A
48341-AA010 Bumper, Rear Spring, No.1 Rh[10.2001 - 06.2002] MCX20 |
48341-AA010 |
US $12.23 |
||
|
48341B
|
48341B
48341-06012
Bumper, Rear Spring, No.1 Rh
[08.1999 - 10.2001] MCX20 |
48341-06012 |
— | ||
| replacement | |||||
|
48341B
|
48341B
48341-AA010 Bumper, Rear Spring, No.1 Rh[08.1999 - 10.2001] MCX20 |
48341-AA010 |
US $12.23 |
||
|
48341B
|
48341B
48341-AA010 Bumper, Rear Spring, No.1 Rh[10.2001 - 06.2002] MCX20 |
48341-AA010 |
US $12.23 |
||
|
48530
|
48530
48530-A9070 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [08.1999 - 06.2002] MCX20 MARK 48530-AC020 |
48530-A9070 |
US $313.93 |
||
|
48530
|
48530
48530-A9260
Absorber Assy, Shock, Rear Rh
[06.2003 - 01.2005] MCX20 MARK 48530-AC030 |
48530-A9260 |
— | ||
|
48540
|
48540
48540-A9070
Absorber Assy, Shock, Rear Lh
[08.1999 - 06.2002] MCX20 MARK 48540-AC020 |
48540-A9070 |
— | ||
|
48540
|
48540
48540-A9190
Absorber Assy, Shock, Rear Lh
[06.2003 - 01.2005] MCX20 MARK 48540-AC030 |
48540-A9190 |
— | ||
|
48703C
|
48703C
90080-17265
Nut(For Rear Suspension Arm)
[06.2003 -] MCX20 |
90080-17265 |
— | ||
|
48703C
|
48703C
90179-14019 Nut[08.1999 - 06.2002] MCX20 |
90179-14019 |
from US $1.40 |
||
|
48703E
|
48703E
90109-A0027
Bolt(For Rear Suspension Arm)
[06.2003 -] MCX20 *14-1.50PX260-26,NO.1 |
90109-A0027 |
— | ||
|
48703E
|
48703E
90109-A0028
Bolt(For Rear Suspension Arm)
[06.2003 -] MCX20 *14-1.50PX260-26,NO.2 |
90109-A0028 |
— | ||
|
48703E
|
48703E
90901-09001 Bolt(For Rear Suspension Arm)[08.1999 - 06.2002] MCX20 *14-1.50PX260-26,NO.1 |
90901-09001 |
from US $20.62 |
||
|
48703E
|
48703E
90901-19001 Bolt(For Rear Suspension Arm)[08.1999 - 06.2002] MCX20 *14-1.50PX260-26,NO.2 |
90901-19001 |
from US $17.82 |
||
|
48703H
|
48703H
90201-14017 Washer(For Rear Suspension Arm)[08.1999 - 06.2002] MCX20 |
90201-14017 |
from US $3.22 |
||
|
48703J
|
48703J
48715-06010
Washer, No.2(For Rear Suspension Arm)
[08.1999 - 06.2002] MCX20 |
48715-06010 |
— | ||
|
48710A
|
48710A
48710-33050
Arm Assy, Rear Suspension, No.1 Rh
[08.1999 - 09.2001] MCX20 |
48710-33050 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[08.1999 - 09.2001] MCX20 |
48710-33051 |
from US $108.33 |
||
|
48710A
|
48710A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[09.2001 - 06.2002] MCX20 |
48710-33051 |
from US $108.33 |
||
|
48720A
|
48720A
48710-33050
Arm Assy, Rear Suspension, No.1 Rh
[08.1999 - 09.2001] MCX20 |
48710-33050 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[08.1999 - 09.2001] MCX20 |
48710-33051 |
from US $108.33 |
||
|
48720A
|
48720A
48710-33051 Arm Assy, Rear Suspension, No.1 Rh[09.2001 - 06.2002] MCX20 |
48710-33051 |
from US $108.33 |
||
|
48730F
|
48730F
48730-AA020
Arm Assy, Rear Suspension, No.2 Rh
[08.1999 - 06.2002] MCX20 |
48730-AA020 |
— | ||
|
48740F
|
48740F
48740-AA020 Arm Assy, Rear Suspension, No.2 Lh[08.1999 - 06.2002] MCX20 |
48740-AA020 |
US $118.81 |
||
|
48750G
|
48750G
90178-A0002
Nut(For Rear Suspension Support)
[08.1999 - 06.2002] MCX20 (L),REAR |
90178-A0002 |
— | ||
|
48750H
|
48750H
48750-06050 Support Assy, Rear Suspension, Rh[08.1999 - 06.2002] MCX20 |
48750-06050 |
from US $92.60 |
||
|
48750H
|
48750H
48750-06051
Support Assy, Rear Suspension, Rh
[07.2003 -] MCX20 |
48750-06051 |
— | ||
|
48750J
|
48750J
90080-17212
Nut(For Rear Support To Rear Shock Absorber Rh)
[06.2003 -] MCX20 |
90080-17212 |
— | ||
|
48750J
|
48750J
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[08.1999 - 06.2002] MCX20 |
90177-14001 |
from US $1.52 |
||
|
48750K
|
48750K
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[08.1999 - 06.2002] MCX20 |
90387-15027 |
from US $3.57 |
||
|
48753B
|
48753B
48753-06011
Cover, Rear Suspension Supoport, No.1 Rh
[08.1999 - 06.2002] MCX20 |
48753-06011 |
— | ||
|
48753C
|
48753C
48753-06011
Cover, Rear Suspension Supoport, No.1 Rh
[08.1999 - 06.2002] MCX20 |
48753-06011 |
— | ||
|
48760B
|
48760B
48760-06050 Support Assy Rear Suspension, Lh[08.1999 - 06.2002] MCX20 |
48760-06050 |
from US $92.60 |
||
|
48760B
|
48760B
48760-06051
Support Assy Rear Suspension, Lh
[07.2003 -] MCX20 |
48760-06051 |
— | ||
|
48760C
|
48760C
90080-17212
Nut(For Rear Support To Rear Shock Absorber Rh)
[06.2003 -] MCX20 |
90080-17212 |
— | ||
|
48760C
|
48760C
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[08.1999 - 06.2002] MCX20 |
90177-14001 |
from US $1.52 |
||
|
48760D
|
48760D
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[08.1999 - 06.2002] MCX20 |
90387-15027 |
from US $3.57 |
||
|
48780A
|
48780A
48780-33010 Rod Assy, Strut, Rear[08.1999 - 06.2002] MCX20 |
48780-33010 |
from US $89.11 |
||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[08.1999 - 06.2002] MCX20 (L) |
90080-11133 |
US $10.95 |
||
|
48780B
|
48780B
90119-12131 Bolt(For Strut Rod)[08.1999 - 06.2002] MCX20 (J) |
90119-12131 |
from US $3.57 |
||
| replacement | |||||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[08.1999 - 06.2002] MCX20 (J) |
90080-11133 |
US $10.95 |
||
|
48780C
|
48780C
90178-A0011
Nut(For Strut Rod)
[06.2003 -] MCX20 CARRIER SIDE |
90178-A0011 |
— | ||
|
48780C
|
48780C
90179-12063 Nut(For Rear Suspension Arm)[08.1999 - 06.2002] MCX20 BODY SIDE |
90179-12063 |
from US $1.95 |
||
|
48780C
|
48780C
90179-12091 Nut(For Front Suspension Lower Arm)[08.1999 - 06.2002] MCX20 CARRIER SIDE |
90179-12091 |
from US $1.17 |
||
|
48780C
|
48780C
90179-A0004
Nut(For Strut Rod)
[06.2003 -] MCX20 BODY SIDE |
90179-A0004 |
— | ||
|
48812
|
48812
48812-AC040
Bar, Stabilizer, Rear
[08.1999 - 06.2002] MCX20 |
48812-AC040 |
— | ||
|
48818
|
48818
48818-07010
Bush, Stabilizer, Rear
[08.1999 - 06.2002] MCX20 |
48818-07010 |
— | ||
|
48830A
|
48830A
90080-17227
Nut(For Rear Stabilizer Link)
[06.2003 -] MCX20 |
90080-17227 |
— | ||
|
48830A
|
48830A
90179-10183 Nut(For Front Stabilizer Link)[08.1999 - 06.2002] MCX20 |
90179-10183 |
from US $0.88 |
||
|
48830D
|
48830D
48830-07010 Link Assy, Rear Stabilizer, Rh[08.1999 - 06.2002] MCX20 |
48830-07010 |
from US $64.47 |
||
|
48832R
|
48832R
48832-AA010 Bracket, Rear Stabilizer Bar, No.1[08.1999 - 06.2002] MCX20 |
48832-AA010 |
US $8.30 |
||
|
48833R
|
48833R
48832-AA010 Bracket, Rear Stabilizer Bar, No.1[08.1999 - 06.2002] MCX20 |
48832-AA010 |
US $8.30 |
||
|
48840A
|
48840A
48830-07010 Link Assy, Rear Stabilizer, Rh[08.1999 - 06.2002] MCX20 |
48830-07010 |
from US $64.47 |
||
|
9008011232
|
9008011232
90080-11232
New Genuine Part
|
90080-11232 |
— | ||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
US $2.72 |
||
