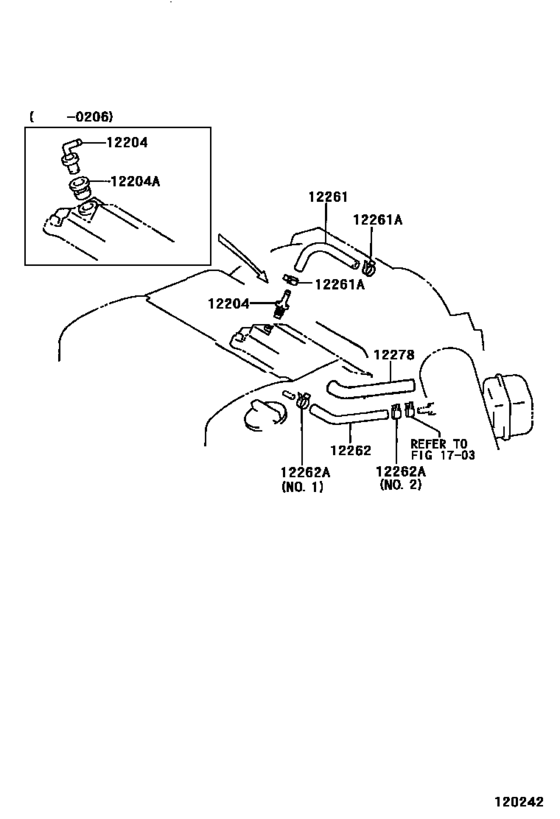

Ventilation Hose ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- U.S.A.
- Frame
- MCX20
- grade
- XL
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-20020 Valve Sub-Assy, Ventilation[08.1999 - 03.2002] 1MZFE..MCX20 |
12204-20020 |
from US $21.72 |
||
|
12204
|
12204
12204-20040 Valve Sub-Assy, Ventilation[06.2002 - 11.2004] 1MZFE..MCX20 |
12204-20040 |
from US $15.72 |
||
|
12204
|
12204
12204-20060 Valve Sub-Assy, Ventilation[11.2004 - 12.2004] 1MZFE..MCX20 |
12204-20060 |
US $24.32 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[08.1999 - 06.2002] 1MZFE..MCX20 |
90480-18001 |
from US $3.98 |
||
|
12261
|
12261
12261-20011 Hose, Ventilation[08.1999 - 06.2002] 1MZFE..MCX20 |
12261-20011 |
from US $10.34 |
||
|
12261
|
12261
12261-20090
Hose, Ventilation
[11.2004 - 01.2005] 1MZFE..MCX20 |
12261-20090 |
— | ||
| replacement | |||||
|
12261
|
12261
12261-20091 Hose, Ventilation[11.2004 - 01.2005] 1MZFE..MCX20 |
12261-20091 |
from US $9.88 |
||
|
12261A
|
12261A
90467-14017 Clip Or Clamp(For Ventilation Hose)[08.1999 - 06.2002] 1MZFE..MCX20 |
90467-14017 |
from US $1.35 |
||
|
12262
|
12262
12262-0A040 Hose, Ventilation, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
12262-0A040 |
US $20.82 |
||
| replacement | |||||
|
12262
|
12262
12262-20020 Hose, Ventilation, No.2[08.1999 - 06.2002] 1MZFE..MCX20 |
12262-20020 |
from US $14.74 |
||
|
12262A
|
12262A
90467-17011
Clip Or Clamp(For Ventilation Hose)
[08.1999 - 06.2002] 1MZFE..MCX20 NO.1 |
90467-17011 |
— | ||
| replacement | |||||
|
12262A
|
12262A
96134-51700 Clip Or Clamp(For Ventilation Hose)[08.1999 - 06.2002] 1MZFE..MCX20 NO.1 |
96134-51700 |
US $2.24 |
||
|
12262A
|
12262A
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.1999 - 06.2002] 1MZFE..MCX20 NO.2 |
96134-41900 |
from US $1.44 |
||
|
12262A
|
12262A
96134-51700 Clip Or Clamp(For Ventilation Hose)[06.2002 - 01.2005] 1MZFE..MCX20 NO.1 |
96134-51700 |
US $2.24 |
||
|
12278
|
12278
12278-0A020
Insulator, Ventilation Hose Heat
[08.1999 - 06.2002] 1MZFE..MCX20 |
12278-0A020 |
— | ||
