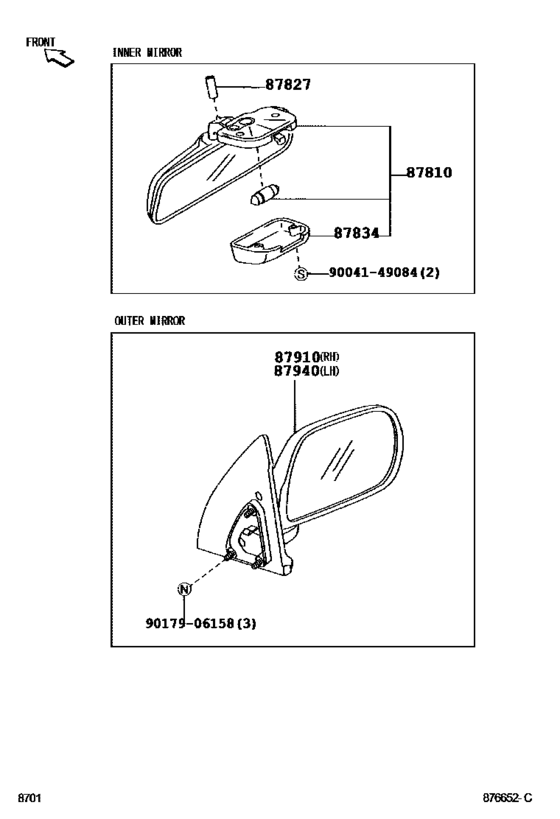

Mirror ([12.2003 - 08.2006] (0312-0608)E..IDN) Diagram Toyota AVANZA
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- F601
- grade
- E
- body
- VAN
- ENGINE
- K3DE
- DESTINATION
- IDN
- From
- 12.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- LVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-BZ020
Mirror Assy, Inner Rear View
[12.2003 - 08.2006] F601 |
87810-BZ020 |
— | ||
|
87827
|
87827
87828-BZ010 Absorber, Inner Rear View MirrorINNER REAR VIEW MIRROR [12.2003 - 08.2006] F601 |
87828-BZ010 |
US $1.27 |
||
|
87834
|
87834
87834-87Z02 Cover, Inner Rear View Mirror Stay HolderINNER REAR VIEW MIRROR STAY HOLDER [12.2003 - 08.2006] F601 |
87834-87Z02 |
US $7.72 |
||
|
87910
|
87910
87910-BZ020-B0
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN SILVER M.M.,1E7 |
87910-BZ020-B0 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-BZ010
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN SILVER M.M.,1E7 |
87910-BZ010 |
— | ||
|
87910
|
87910
87910-BZ020-C0
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN BLACK MC.,209 |
87910-BZ020-C0 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-BZ010
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN BLACK MC.,209 |
87910-BZ010 |
— | ||
|
87910
|
87910
87910-BZ020-D0
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN RED MC.,3M8 |
87910-BZ020-D0 |
— | ||
|
87910
|
87910
87910-BZ020-F0
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN CHAMPAGNE ME.,583 |
87910-BZ020-F0 |
— | ||
|
87910
|
87910
87910-BZ020-G0
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN DK.GREEN MC.,6R4 |
87910-BZ020-G0 |
— | ||
|
87910
|
87910
87910-BZ020-J0
Mirror Assy, Outer Rear View, Rh
[12.2003 - 08.2006] F601..E..IDN DK.BLUE MC.,8N8 |
87910-BZ020-J0 |
— | ||
|
87940
|
87940
87940-BZ020-B0
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN SILVER M.M.,1E7 |
87940-BZ020-B0 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-BZ010
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN SILVER M.M.,1E7 |
87940-BZ010 |
— | ||
|
87940
|
87940
87940-BZ020-C0
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN BLACK MC.,209 |
87940-BZ020-C0 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-BZ010
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN BLACK MC.,209 |
87940-BZ010 |
— | ||
|
87940
|
87940
87940-BZ020-D0
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN RED MC.,3M8 |
87940-BZ020-D0 |
— | ||
|
87940
|
87940
87940-BZ020-F0
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN CHAMPAGNE ME.,583 |
87940-BZ020-F0 |
— | ||
|
87940
|
87940
87940-BZ020-G0
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN DK.GREEN MC.,6R4 |
87940-BZ020-G0 |
— | ||
|
87940
|
87940
87940-BZ020-J0
Mirror Assy, Outer Rear View, Lh
[12.2003 - 08.2006] F601..E..IDN DK.BLUE MC.,8N8 |
87940-BZ020-J0 |
— | ||
|
9004149084
|
9004149084
90041-49084 New Genuine Part |
90041-49084 |
US $2.33 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
