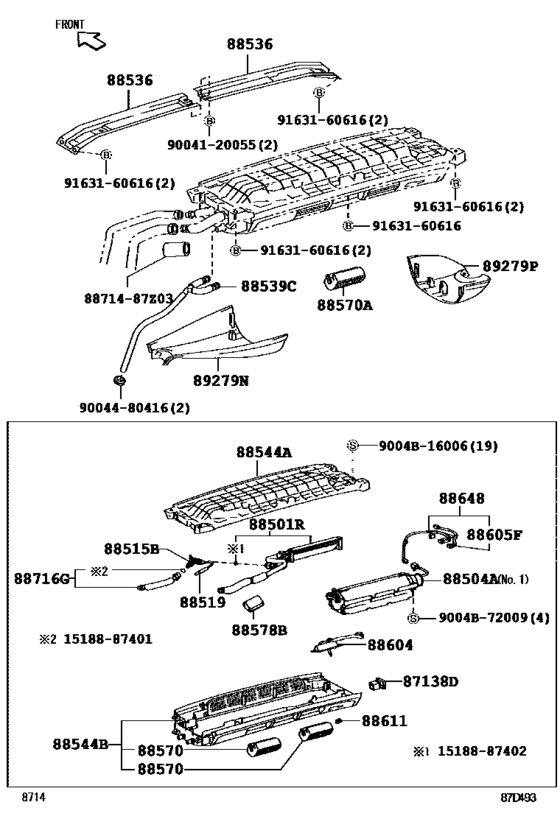

Heating & Air Conditioning - Cooler Unit ([12.2003 - 08.2006] DUAL AIR-CON (0312-0608)G..LVVT) Diagram Toyota AVANZA
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- F601
- grade
- G
- body
- VAN
- ENGINE
- K3DE
- DESTINATION
- IDN
- From
- 12.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- LVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138D
|
87138D
88635-BZ010 Resistor, Blower (Rear)BLOWER [12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88635-BZ010 |
US $26.03 |
||
|
88501R
|
88501R
88501-BZ010
Evaporator Sub-Assy (Rear)
[12.2003 - 08.2006] F601..4AT..MA;F601..5F..(G,GL)..(IDN,MA) |
88501-BZ010 |
— | ||
|
88504A
|
88504A
88504-BZ010
Case Sub-Assy, Blower
[12.2003 - 08.2006] F601..5F..TH;F601..4AT..(MA,TH);F601..5F..(G,GL)..(IDN,MA) NO.1 |
88504-BZ010 |
— | ||
|
88515B
|
88515B
88515-BZ010
Valve, Rear Cooling Unit Expansion
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88515-BZ010 |
— | ||
|
88519
|
88519
88519-87701
Holder, Remote Bulb
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88519-87701 |
— | ||
|
88536
|
88536
88688-BZ010
Bracket, Cooling Unit, No.1
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88688-BZ010 |
— | ||
|
88539C
|
88539C
88539-BZ020
Hose, Cooler Unit Drain, No.2
[12.2003 - 08.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) |
88539-BZ020 |
— | ||
|
88544A
|
88544A
88502-BZ040
Case, Cooler Blower, Upper
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88502-BZ040 |
— | ||
|
88544B
|
88544B
88502-BZ010
Case, Cooler Blower, Lower
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88502-BZ010 |
— | ||
|
88570
|
88570
87125-BZ010
Grille Sub-Assy, Cooler Air Outlet
[12.2003 - 08.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) |
87125-BZ010 |
— | ||
|
88570A
|
88570A
87125-BZ010
Grille Sub-Assy, Cooler Air Outlet
[12.2003 - 08.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) |
87125-BZ010 |
— | ||
|
88578B
|
88578B
88578-12100
Packing, Cooling Unit, No.1
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88578-12100 |
— | ||
| replacement | |||||
|
88578B
|
88578B
88578-30360
Packing, Cooler Pipe, No.1
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88578-30360 |
— | ||
|
88604
|
88604
88604-BZ010
Panel Sub-Assy, Cooler Control
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88604-BZ010 |
— | ||
|
88605F
|
88605F
82606-B0010 Fuse[12.2003 - 08.2006] F601..TH;F601..G..LVVT |
82606-B0010 |
from US $1.54 |
||
|
88611
|
88611
88611-BZ070
Knob, Cooler Control Switch
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88611-BZ070 |
— | ||
|
88648
|
88648
88605-BZ040
Harness Sub-Assy, Wiring Air Conditioner
[12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
88605-BZ040 |
— | ||
|
88716G
|
88716G
9004B-91001 Tube Sub-Assy, Liquid, FLIQUID, F [12.2003 - 08.2006] F601..E..TH;F601..G,GL,LIMD,S |
9004B-91001 |
US $10.60 |
||
|
89279N
|
89279N
89279-BZ010
Cover
[12.2003 - 03.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) |
89279-BZ010 |
— | ||
|
89279N
|
89279N
89279-BZ011-B0
Cover
[03.2006 - 08.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) LT.GRAY,TRIM1# |
89279-BZ011-B0 |
— | ||
|
89279P
|
89279P
89279-BZ020
Cover
[12.2003 - 02.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) |
89279-BZ020 |
— | ||
|
89279P
|
89279P
89279-BZ021-B0
Cover
[03.2006 - 08.2006] F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH) LT.GRAY,TRIM1# |
89279-BZ021-B0 |
— | ||
|
9004B16006
|
9004B16006
9004B-16006
New Genuine Part
|
9004B-16006 |
— | ||
|
9004B72009
|
9004B72009
9004B-72009
New Genuine Part
|
9004B-72009 |
— | ||
|
8871487Z03
|
8871487Z03
88714-87Z03
Hose, Cooler Refrigerant Liquid, No.1
|
88714-87Z03 |
— | ||
|
1518887401
|
1518887401
15188-87401 Ring, O |
15188-87401 |
from US $1.82 |
||
|
1518887402
|
1518887402
15188-87402 Ring, O |
15188-87402 |
from US $2.09 |
||
|
9004120055
|
9004120055
90041-20055 New Genuine Part |
90041-20055 |
US $2.04 |
||
|
9004480416
|
9004480416
90044-80416
Grommet, Heater
|
90044-80416 |
— | ||
|
9163160616
|
9163160616
91631-60616
BOLT WWASHER
|
91631-60616 |
— | ||
| replacement | |||||
|
9163160616
|
9163160616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
