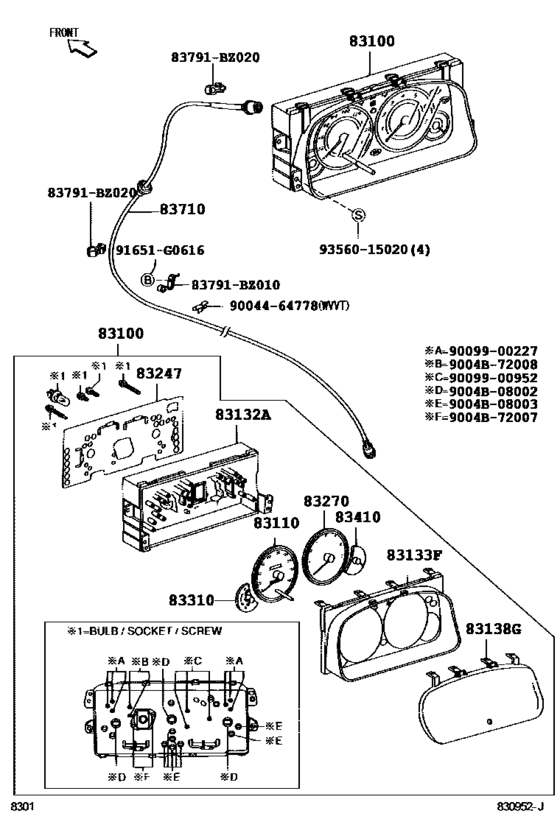

Meter ([12.2003 - 08.2006] (0312-0608)5F) Diagram Toyota AVANZA
- Year
- 2005 - 2006
- Sales region
- U.S.A.
- Frame
- F601
- grade
- GL
- body
- VAN
- ENGINE
- K3VE
- DESTINATION
- BRU
- From
- 12.2005
- To
- 08.2006
- Gear Shift Type
- 5F
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-BZ010
Meter Assy, Combination
[12.2003 - 08.2006] F601..5F..(BRU,IDN,TH) |
83800-BZ010 |
— | ||
|
83110
|
83110
83220-BZ010
Speedometer Assy
[12.2003 - 08.2006] F601..5F |
83220-BZ010 |
— | ||
|
83132A
|
83132A
83841-BZ010
Case, Meter
[12.2003 - 08.2006] F601..5F |
83841-BZ010 |
— | ||
|
83133F
|
83133F
83811-BZ010
Plate, Meter
[12.2003 - 08.2006] F601..5F |
83811-BZ010 |
— | ||
|
83138G
|
83138G
83852-BZ010
Glass, Combination Meter
[12.2003 - 08.2006] F601..5F |
83852-BZ010 |
— | ||
|
83247
|
83247
83861-BZ010
Plate, Meter Circuit
[12.2003 - 08.2006] F601..5F..(BRU,IDN,TH) |
83861-BZ010 |
— | ||
|
83270
|
83270
83881-BZ010
Tachometer Assy, Engine
[12.2003 - 08.2006] F601..5F |
83881-BZ010 |
— | ||
|
83310
|
83310
83882-BZ010
Gage Assy, Fuel Receiver
[12.2003 - 08.2006] F601..5F |
83882-BZ010 |
— | ||
|
83410
|
83410
83883-BZ010
Gage Assy, Water Temperature Receiver
[12.2003 - 08.2006] F601..5F |
83883-BZ010 |
— | ||
|
83710
|
83710
83710-BZ010
Cable Assy, Speedometer Drive, No.1
[12.2003 - 08.2006] F601..5F |
83710-BZ010 |
— | ||
| replacement | |||||
|
83710
|
83710
83710-BZ011
Cable Assy, Speedometer Drive, No.1
[12.2003 - 08.2006] F601..5F |
83710-BZ011 |
— | ||
|
9004B08002
|
9004B08002
9004B-08002
New Genuine Part
|
9004B-08002 |
— | ||
|
9004B08003
|
9004B08003
9004B-08003
New Genuine Part
|
9004B-08003 |
— | ||
|
9004B72007
|
9004B72007
9004B-72007
New Genuine Part
|
9004B-72007 |
— | ||
| replacement | |||||
|
9004B72007
|
9004B72007
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9004B72008
|
9004B72008
9004B-72008
New Genuine Part
|
9004B-72008 |
— | ||
| replacement | |||||
|
9004B72008
|
9004B72008
83194-87502
New Genuine Part
|
83194-87502 |
— | ||
|
83791BZ010
|
83791BZ010
83791-BZ010
New Genuine Part
|
83791-BZ010 |
— | ||
|
83791BZ020
|
83791BZ020
83791-BZ020
New Genuine Part
|
83791-BZ020 |
— | ||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9004464778
|
9004464778
90044-64778 New Genuine Part |
90044-64778 |
US $2.04 |
||
|
9009900227
|
9009900227
90099-00227
New Genuine Part
|
90099-00227 |
— | ||
|
9009900952
|
9009900952
90099-00952
New Genuine Part
|
90099-00952 |
— | ||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
||
