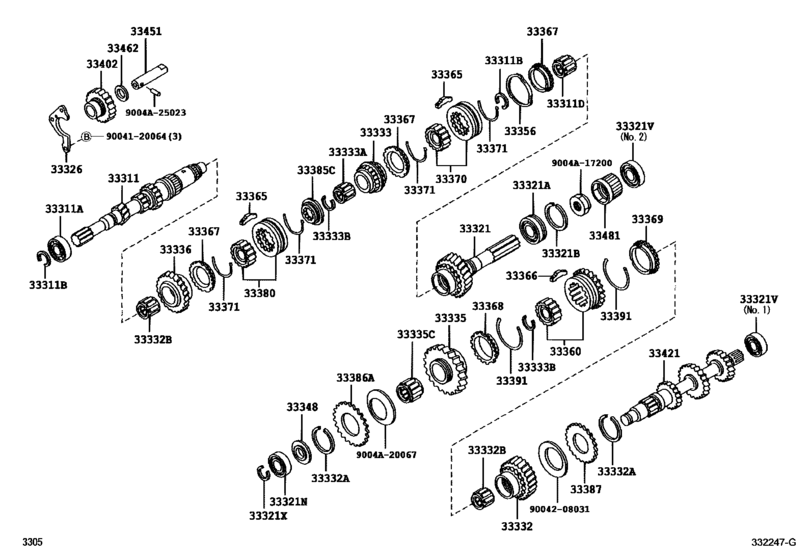

Transmission Gear (Mtm) ([12.2003 - 08.2006] (0312-0608)5F) Diagram Toyota AVANZA
- Year
- 2004 - 2006
- Sales region
- General
- Frame
- F601
- grade
- E
- body
- VAN
- ENGINE
- K3VE
- DESTINATION
- TH
- From
- 04.2004
- To
- 08.2006
- Gear Shift Type
- 5F
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33311
|
33311
33311-97501 Shaft, Input[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33311-97501 |
US $295.57 |
||
|
33311A
|
33311A
90043-63246 Bearing (For Input Shaft Front)[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) (L),NO.3 |
90043-63246 |
US $18.65 |
||
|
33311B
|
33311B
90045-20271 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=2.06 |
90045-20271 |
US $4.51 |
||
|
33311B
|
33311B
90045-20272 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=2.02 |
90045-20272 |
US $4.51 |
||
|
33311B
|
33311B
90045-20273 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=1.98 |
90045-20273 |
US $4.51 |
||
|
33311B
|
33311B
90045-20274 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=1.94 |
90045-20274 |
US $4.51 |
||
|
33311B
|
33311B
90045-20275 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=1.90 |
90045-20275 |
US $4.51 |
||
|
33311B
|
33311B
90045-20276 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=1.86 |
90045-20276 |
US $4.51 |
||
|
33311B
|
33311B
90045-20277 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=1.82 |
90045-20277 |
US $4.51 |
||
|
33311B
|
33311B
90045-20278 Ring, Shaft Snap (For Front Bearing)[12.2003 - 08.2006] F601..5F T=1.78 |
90045-20278 |
US $4.51 |
||
|
33311D
|
33311D
90043-64119 Bearing, Input Shaft[12.2003 - 08.2006] F601..5F NTN |
90043-64119 |
US $5.59 |
||
|
33311D
|
33311D
90043-64121 Bearing, Input Shaft[12.2003 - 08.2006] F601..5F KOYO |
90043-64121 |
US $8.74 |
||
|
33311D
|
33311D
90043-64134 Bearing, Input Shaft[12.2003 - 08.2006] F601..5F |
90043-64134 |
US $9.17 |
||
|
33321
|
33321
33321-97502 Shaft, Output[12.2003 - 08.2006] F601..5F |
33321-97502 |
US $275.18 |
||
|
33321A
|
33321A
9004A-36011
Bearing (For Output Shaft Rear)
[12.2003 - 08.2006] F601..5F |
9004A-36011 |
— | ||
|
33321B
|
33321B
90045-21157 Ring, Shaft Snap (For Output Shaft Bearing)[12.2003 - 08.2006] F601..5F |
90045-21157 |
US $5.94 |
||
|
33321N
|
33321N
90043-63247 Bearing (For Output Shaft Front)[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) (L),NO.3 |
90043-63247 |
US $7.16 |
||
|
33321V
|
33321V
90043-63226 Bearing (For Output Shaft Front)[04.2004 - 08.2006] F601..5F..WVVT NO.2 |
90043-63226 |
US $9.78 |
||
|
33321V
|
33321V
90043-63282 Bearing (For Output Shaft Center)[12.2003 - 08.2006] F601..5F NO.1 |
90043-63282 |
US $14.41 |
||
| replacement | |||||
|
33321V
|
33321V
90043-63313 Bearing (For Output Shaft Center)[12.2003 - 08.2006] F601..5F NO.1 |
90043-63313 |
US $17.81 |
||
|
33321X
|
33321X
90045-20279 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=2.06 |
90045-20279 |
US $3.79 |
||
|
33321X
|
33321X
90045-20280 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=2.02 |
90045-20280 |
US $3.79 |
||
|
33321X
|
33321X
90045-20281 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=1.98 |
90045-20281 |
US $3.79 |
||
|
33321X
|
33321X
90045-20282 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=1.94 |
90045-20282 |
US $3.79 |
||
|
33321X
|
33321X
90045-20283 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=1.90 |
90045-20283 |
US $3.79 |
||
|
33321X
|
33321X
90045-20284 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=1.86 |
90045-20284 |
US $3.79 |
||
|
33321X
|
33321X
90045-20285 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=1.82 |
90045-20285 |
US $3.79 |
||
|
33321X
|
33321X
90045-20286 Ring, Shaft Snap (For Output Shaft Center Bearing)[12.2003 - 08.2006] F601..5F T=1.78 |
90045-20286 |
US $3.79 |
||
|
33326
|
33326
33326-BZ010 Plate, Input Shaft Bearing Lock[12.2003 - 08.2006] F601..5F |
33326-BZ010 |
US $12.08 |
||
| replacement | |||||
|
33326
|
33326
33326-87501 Plate, Bearing Lock[12.2003 - 08.2006] F601..5F |
33326-87501 |
US $8.01 |
||
|
33332
|
33332
33332-87511 Gear, 2Nd[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33332-87511 |
US $101.34 |
||
|
33332A
|
33332A
90045-20107 Ring, Shaft Snap (For 2Nd Gear)[12.2003 - 08.2006] F601..5F (L),NO.3 |
90045-20107 |
US $2.97 |
||
|
33332B
|
33332B
90043-64119 Bearing, Input Shaft[12.2003 - 08.2006] F601..5F NTN |
90043-64119 |
US $5.59 |
||
|
33332B
|
33332B
90043-64121 Bearing, Input Shaft[12.2003 - 08.2006] F601..5F KOYO |
90043-64121 |
US $8.74 |
||
|
33333
|
33333
33333-87401 Gear, 3Rd[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33333-87401 |
US $107.74 |
||
|
33333A
|
33333A
90043-64136 Bearing, Needle Roller (For 3Rd Gear)[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) (L),NO.3 |
90043-64136 |
US $11.79 |
||
|
33333B
|
33333B
90045-20263 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=2.06 |
90045-20263 |
US $5.39 |
||
|
33333B
|
33333B
90045-20264 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=2.02 |
90045-20264 |
US $5.39 |
||
|
33333B
|
33333B
90045-20265 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=1.98 |
90045-20265 |
US $5.39 |
||
|
33333B
|
33333B
90045-20266 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=1.94 |
90045-20266 |
US $5.39 |
||
|
33333B
|
33333B
90045-20267 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=1.90 |
90045-20267 |
US $5.39 |
||
|
33333B
|
33333B
90045-20268 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=1.86 |
90045-20268 |
US $5.39 |
||
|
33333B
|
33333B
90045-20269 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=1.82 |
90045-20269 |
US $5.39 |
||
|
33333B
|
33333B
90045-20270 Ring, Shaft Snap (For 3Rd Rear)[12.2003 - 08.2006] F601..5F T=2.10 |
90045-20270 |
US $5.39 |
||
|
33335
|
33335
33335-97501 Gear, 1St[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33335-97501 |
US $110.07 |
||
|
33335C
|
33335C
90043-64034 Bearing, Needle Roller(For 1St Gear)[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) (L),NO.3 |
90043-64034 |
US $6.70 |
||
|
33336
|
33336
33336-87504 Gear, 5Th[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33336-87504 |
US $104.83 |
||
|
33348
|
33348
33348-87508 Washer, 1St Gear Thrust[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33348-87508 |
US $10.19 |
||
|
33356
|
33356
33356-87501 Spring, Wave[12.2003 - 08.2006] F601..5F |
33356-87501 |
US $5.24 |
||
|
33360
|
33360
33360-87513 Hub Assy, Synchronizer, No.1[12.2003 - 08.2006] F601..5F |
33360-87513 |
US $177.63 |
||
|
33365
|
33365
33365-87702 Key, Synchromesh Shifting, No.1[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33365-87702 |
US $3.58 |
||
|
33366
|
33366
33366-87505 Key, Synchromesh Shifting, No.2[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33366-87505 |
US $3.76 |
||
|
33367
|
33367
33367-87507 Ring, Synchronizer, No.1[12.2003 - 08.2006] F601..5F |
33367-87507 |
from US $19.27 |
||
|
33368
|
33368
33368-87509 Ring, Synchronizer, No.2[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33368-87509 |
US $36.69 |
||
|
33369
|
33369
33369-87503
Ring, Synchronizer, No.3
[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33369-87503 |
— | ||
| replacement | |||||
|
33369
|
33369
33369-87703 Ring, Synchronizer, No.2[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33369-87703 |
US $61.85 |
||
|
33370
|
33370
33370-87515 Hub Assy, Synchronizer, No.2[12.2003 - 08.2006] F601..5F |
33370-87515 |
US $161.62 |
||
| replacement | |||||
|
33370
|
33370
33370-B5020 Hub Assy, Synchronizer, No.2[12.2003 - 08.2006] F601..5F |
33370-B5020 |
US $152.88 |
||
|
33371
|
33371
33371-87505 Spring, Synchromesh Shifting Key, No.1[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33371-87505 |
from US $0.63 |
||
|
33380
|
33380
33380-87509
Hub Assy, Synchronizer, No.3
[12.2003 - 08.2006] F601..5F |
33380-87509 |
— | ||
| replacement | |||||
|
33380
|
33380
33380-B5020 Hub Assy, Synchronizer, No.3[12.2003 - 08.2006] F601..5F |
33380-B5020 |
US $146.76 |
||
|
33385C
|
33385C
33385-87504 Retainer, Shifting Key[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33385-87504 |
US $6.70 |
||
|
33386A
|
33386A
33386-87503 Sub-Gear, No.1[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33386-87503 |
US $18.65 |
||
|
33387
|
33387
33387-87503 Sub-Gear, No.2[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33387-87503 |
US $9.61 |
||
|
33391
|
33391
33391-87701 Spring, Synchromesh Shifting Key, No.1[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33391-87701 |
US $3.05 |
||
|
33402
|
33402
33402-87507 Gear Sub-Assy, Reverse Idler[12.2003 - 07.2005] F601..5F |
33402-87507 |
US $90.27 |
||
| replacement | |||||
|
33402
|
33402
33402-B0020 Gear Sub-Assy, Reverse Idler[12.2003 - 07.2005] F601..5F |
33402-B0020 |
US $90.85 |
||
|
33402
|
33402
33402-B0020 Gear Sub-Assy, Reverse Idler[05.2006 - 08.2006] F601..5F (J),NO.2 |
33402-B0020 |
US $90.85 |
||
|
33421
|
33421
33421-97501 Gear, Counter[12.2003 - 08.2006] F601..5F..(IDN,MA,TH) |
33421-97501 |
US $406.22 |
||
|
33451
|
33451
33451-87504 Shaft, Reverse Idler Gear[12.2003 - 08.2006] F601..5F |
33451-87504 |
US $20.97 |
||
|
33462
|
33462
33462-87501 Washer, Reverse Idler Thrust[12.2003 - 08.2006] F601..5F |
33462-87501 |
US $1.89 |
||
|
33481
|
33481
33481-87407
Gear, Speedometer Drive (Mtm)
[12.2003 - 08.2006] F601..5F N=6 |
33481-87407 |
— | ||
|
9004A17200
|
9004A17200
9004A-17200
Nut (For Manual Transmission Output Shaft Rear Set)
|
9004A-17200 |
— | ||
|
9004A20067
|
9004A20067
9004A-20067
New Genuine Part
|
9004A-20067 |
— | ||
| replacement | |||||
|
9004A20067
|
9004A20067
90042-08031 New Genuine Part |
90042-08031 |
US $3.03 |
||
|
9004A25023
|
9004A25023
9004A-25023
Pin, Slotted Spring (For Reverse Idler Gear Shaft)
|
9004A-25023 |
— | ||
| replacement | |||||
|
9004A25023
|
9004A25023
90042-54043 Pin, Slotted Spring (For Reverse Idler Gear Shaft) |
90042-54043 |
US $3.64 |
||
|
9004120064
|
9004120064
90041-20064 Bolt, W/washer |
90041-20064 |
US $2.18 |
||
|
9004208031
|
9004208031
90042-08031 New Genuine Part |
90042-08031 |
US $3.03 |
||
