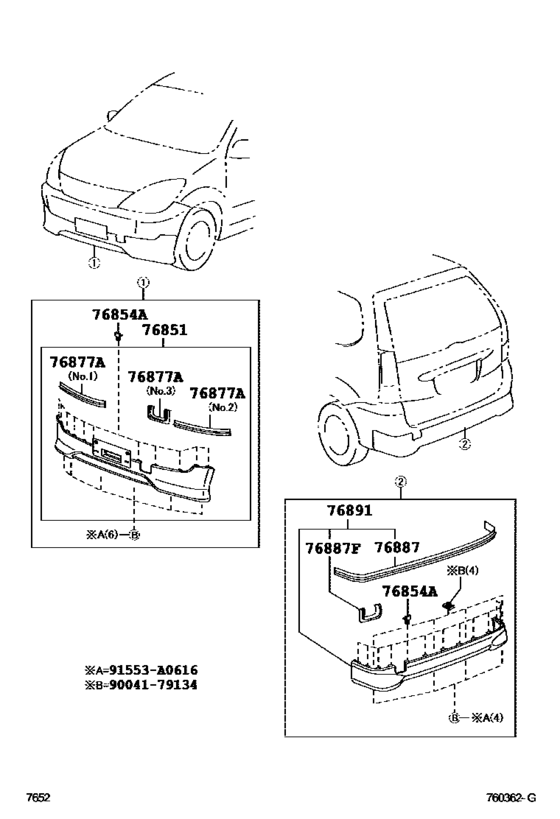

Spoiler & Side Mudguard ([08.2004 - 08.2006] (0408-0608)S) Diagram Toyota AVANZA
- Year
- 2005 - 2006
- Sales region
- U.S.A.
- Frame
- F601
- grade
- S
- body
- VAN
- ENGINE
- K3VE
- DESTINATION
- BRU
- From
- 12.2005
- To
- 08.2006
- Gear Shift Type
- 4AT
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76851
|
76851
76851-BZ020
Cover, Front Spoiler
[08.2004 - 08.2006] F601..S |
76851-BZ020 |
— | ||
|
76854A
|
76854A
76854-87401 Retainer, Rear Bumper Side, RhFRONT SPOILER, NO.2 [08.2004 - 08.2006] F601..S |
76854-87401 |
US $3.58 |
||
|
76877A
|
76877A
76877-BZ010-B0
Protector, Front Spoiler
[08.2004 - 08.2006] F601..S GRAY,1E7 ,583,NO.1 |
76877-BZ010-B0 |
— | ||
|
76877A
|
76877A
76877-BZ010-C0
Protector, Front Spoiler
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1,NO.1 |
76877-BZ010-C0 |
— | ||
|
76877A
|
76877A
76877-BZ020-B0
Protector, Front Spoiler
[08.2004 - 08.2006] F601..S GRAY,1E7 ,583,NO.2 |
76877-BZ020-B0 |
— | ||
|
76877A
|
76877A
76877-BZ020-C0
Protector, Front Spoiler
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1,NO.2 |
76877-BZ020-C0 |
— | ||
|
76877A
|
76877A
76877-BZ030-B0
Protector, Front Spoiler
[08.2004 - 08.2006] F601..S GRAY,1E7 ,583,NO.3 |
76877-BZ030-B0 |
— | ||
|
76877A
|
76877A
76877-BZ030-C0
Protector, Front Spoiler
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1,NO.3 |
76877-BZ030-C0 |
— | ||
|
76887
|
76887
76887-BZ010-B0
Seal, Rear Spoiler
[08.2004 - 08.2006] F601..S GRAY,1E7 ,583 |
76887-BZ010-B0 |
— | ||
|
76887
|
76887
76887-BZ010-C0
Seal, Rear Spoiler
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1 |
76887-BZ010-C0 |
— | ||
| replacement | |||||
|
76887
|
76887
76887-BZ130-C0
Seal, Rear Spoiler
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1 |
76887-BZ130-C0 |
— | ||
|
76887F
|
76887F
76887-BZ020-B0
Seal, Rear Spoiler, No.2
[08.2004 - 08.2006] F601..S GRAY,1E7 ,583 |
76887-BZ020-B0 |
— | ||
|
76887F
|
76887F
76887-BZ020-C0
Seal, Rear Spoiler, No.2
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1 |
76887-BZ020-C0 |
— | ||
| replacement | |||||
|
76887F
|
76887F
76887-BZ140-C0
Seal, Rear Spoiler, No.2
[08.2004 - 08.2006] F601..S BLACK,209 ,8N8 ,8P1 |
76887-BZ140-C0 |
— | ||
|
76891
|
76891
76891-BZ020
Spoiler, Rear No.1
[08.2004 - 08.2006] F601..S |
76891-BZ020 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9004179134
|
9004179134
90041-79134 NUT |
90041-79134 |
from US $0.76 |
||
