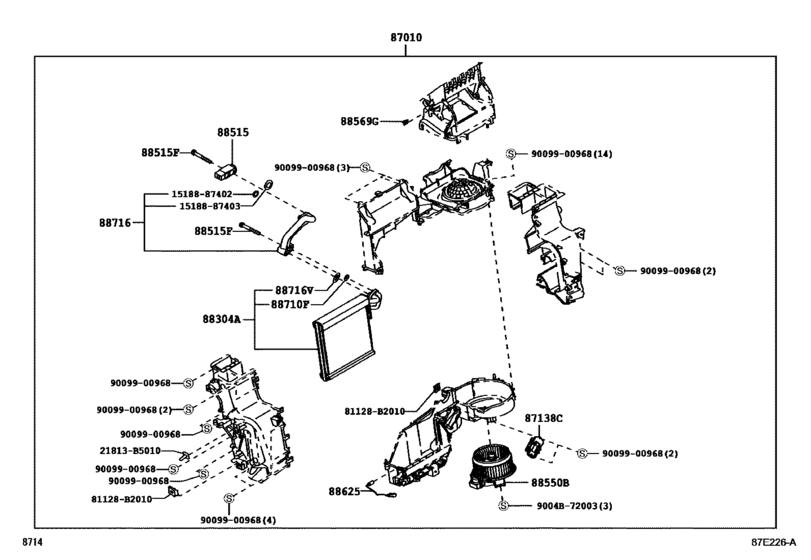

Heating & Air Conditioning - Cooler Unit ([04.2014 - 08.2015] (1404-1508)GCC) Diagram Toyota AVANZA
- Year
- 2014 - 2015
- Sales region
- U.S.A.
- Frame
- F652
- grade
- STD
- body
- VAN
- ENGINE
- 3SZVE
- DESTINATION
- GCC
- From
- 04.2014
- To
- 08.2015
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010
|
87010
87010-BZ380
Unit Assy, Air Conditioner
[04.2014 - 10.2014] F652..GCC |
87010-BZ380 |
— | ||
| replacement | |||||
|
87010
|
87010
87010-BZ381
Unit Assy, Air Conditioner
[04.2014 - 10.2014] F652..GCC |
87010-BZ381 |
— | ||
|
87010
|
87010
87010-BZ381
Unit Assy, Air Conditioner
[11.2014 - 08.2015] F652..GCC |
87010-BZ381 |
— | ||
|
87138C
|
87138C
87138-BZ070
Resistor, Blower
[11.2011 - 08.2015] F651,652 |
87138-BZ070 |
— | ||
|
88304A
|
88304A
88501-BZ160 Cooler, Evaporator[04.2014 - 08.2015] F652..GCC |
88501-BZ160 |
US $296.36 |
||
|
88515
|
88515
88515-BZ050 Valve, Cooler Expansion[11.2011 - 08.2015] F651,652 |
88515-BZ050 |
US $72.66 |
||
|
88515F
|
88515F
C9909-97201 Bolt(For Cooler Expansion Valve)[12.2011 - 08.2015] F651,652..LHD |
C9909-97201 |
US $2.15 |
||
|
88550B
|
88550B
88550-BZ404 Motor Assy, Blower[12.2011 - 08.2015] F651,652..LHD |
88550-BZ404 |
US $174.50 |
||
|
88569G
|
88569G
88888-BZ010
Clamp
[11.2011 - 08.2015] F651,652..GCC,MA,PHL,TH |
88888-BZ010 |
— | ||
|
88625
|
88625
88625-BZ110 Thermistor, Cooler, No.1[12.2011 - 08.2015] F651,652..LHD |
88625-BZ110 |
US $15.54 |
||
|
88710F
|
88710F
15188-87402 Ring, O[11.2011 - 08.2015] F651,652 |
15188-87402 |
from US $2.09 |
||
|
88716
|
88716
88716-BZ840
Tube, Liquid
[12.2011 - 08.2015] F651,652..LHD |
88716-BZ840 |
— | ||
|
88716V
|
88716V
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)[11.2011 - 08.2015] F651,652 |
15188-87403 |
from US $1.94 |
||
|
9004B72003
|
9004B72003
9004B-72003
New Genuine Part
|
9004B-72003 |
— | ||
|
21813B5010
|
21813B5010
21813-B5010 Bolt, Stud(for Carburetor To Air Connector) |
21813-B5010 |
US $1.60 |
||
|
81128B2010
|
81128B2010
81128-B2010 Nut, Headlamp |
81128-B2010 |
US $2.48 |
||
|
1518887402
|
1518887402
15188-87402 Ring, O |
15188-87402 |
from US $2.09 |
||
|
1518887403
|
1518887403
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose) |
15188-87403 |
from US $1.94 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
