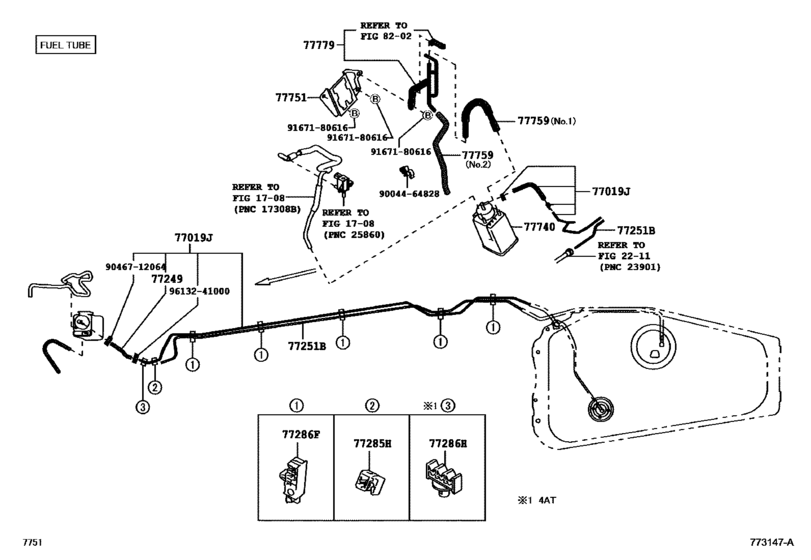

Fuel Tank & Tube ([12.2011 - 08.2015] FUEL TUBE (1112-1508)MXC) Diagram Toyota AVANZA
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- F652
- grade
- MID
- body
- VAN
- ENGINE
- 3SZVE
- DESTINATION
- MXC
- From
- 12.2011
- To
- 08.2015
- Gear Shift Type
- 4AT
- Driver's Position
- LHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77019J
|
77019J
77019-BZ120
Tube Sub-Assy, Fuel Tank To Canister
[12.2011 - 08.2015] F652..MXC |
77019-BZ120 |
— | ||
|
77249
|
77249
77759-BZ130
Hose, Fuel Emission
[12.2011 - 08.2015] F652..MXC |
77759-BZ130 |
— | ||
|
77251B
|
77251B
77251-BZ160
Tube, Fuel Main
[11.2011 - 08.2015] F651,652 |
77251-BZ160 |
— | ||
|
77285H
|
77285H
9004A-46299 Clamp, Brake Tube, No.1[11.2011 - 08.2015] F651,652 |
9004A-46299 |
US $2.77 |
||
|
77286F
|
77286F
90044-64716 Clamp, Brake Tube, No.6[11.2011 - 01.2013] F65# |
90044-64716 |
US $10.75 |
||
|
77286F
|
77286F
9004A-46313
Clamp, Fuel Tube
[02.2013 - 08.2015] F651,652 |
9004A-46313 |
— | ||
|
77286H
|
77286H
90044-64820 Clamp, Brake Tube, No.11BRAKE TUBE, NO.11 [12.2011 - 08.2015] F652..4AT..MXC |
90044-64820 |
US $2.77 |
||
|
77740
|
77740
77740-BZ040
Canister Assy, Charcoal
[12.2011 - 08.2015] F652..MXC |
77740-BZ040 |
— | ||
|
77751
|
77751
53751-BZ080
Bracket, Charcoal Canister Base
[12.2011 - 08.2015] F652..MXC |
53751-BZ080 |
— | ||
|
77759
|
77759
77759-BZ110
Hose, Charcoal Canister
[12.2011 - 08.2015] F652..MXC NO.1 |
77759-BZ110 |
— | ||
|
77759
|
77759
77759-BZ120
Hose, Charcoal Canister Outlet, No.2
[12.2011 - 08.2015] F652..MXC NO.2 |
77759-BZ120 |
— | ||
|
77779
|
77779
77779-BZ040
Tube, Charcoal Canister Outlet
[12.2011 - 08.2015] F652..MXC |
77779-BZ040 |
— | ||
|
9004464828
|
9004464828
90044-64828
New Genuine Part
|
90044-64828 |
— | ||
|
9046712064
|
9046712064
90467-12064 Clip(For Actuator Hose) |
90467-12064 |
US $1.46 |
||
| replacement | |||||
|
9046712064
|
9046712064
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
