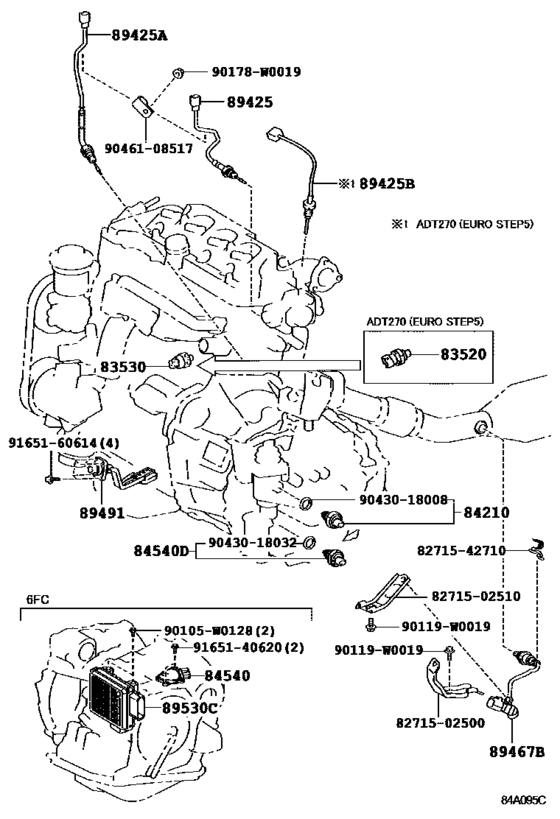

Switch & Relay & Computer ([11.2008 - 05.2015] ENGINE & TRANSMISSION (0811-1505)ADT27#) Diagram Toyota AVENSIS
- Year
- 2008 - 2011
- Sales region
- Europe
- Frame
- ADT271
- body
- SED
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 11.2011
- Gear Shift Type
- 6F
- Model Mark
- V
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[11.2008 - 11.2011] ADT271;ADT270..RHD;ADT270..LHD..(E,N) DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[11.2008 - 11.2011] ADT271;ADT270..RHD;ADT270..LHD..(E,N) DENSO |
83530-60010 |
from US $27.12 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[11.2008 - 11.2011] ADT271;ADT270..RHD;ADT270..LHD..(E,N) YAZAKI |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.2008 - 11.2011] ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DC R,HTWC) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.2008 - 11.2011] ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DC R,HTWC) |
84210-52050 |
from US $20.67 |
||
|
84540D
|
84540D
84545-20020 Switch Assy, Neutral StartNEUTRAL START [11.2008 - 09.2010] ADT27#,ZRT27#..6F |
84545-20020 |
US $41.35 |
||
|
84540D
|
84540D
84545-20021 Switch Assy, Neutral Start[10.2010 - 11.2011] ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DC R,HTWC) |
84545-20021 |
US $26.35 |
||
|
89425
|
89425
89425-20380
Sensor, Exhaust Gas Temperature
[11.2008 - 11.2011] ADT271; ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD) |
89425-20380 |
— | ||
|
89425A
|
89425A
89425-20390
Sensor, Exhaust Gas Temperature, No.2
[11.2008 - 11.2011] ADT271; ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD) |
89425-20390 |
— | ||
|
89467B
|
89467B
89467-20100
Sensor, Air Fuel Ratio
[11.2008 - 11.2011] ADT271; ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD) |
89467-20100 |
— | ||
|
89491
|
89491
89491-20130
Sensor, Engine Oil Level
[11.2008 - 11.2011] ADT271 |
89491-20130 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-20131
Sensor, Engine Oil Level
[11.2008 - 11.2011] ADT271 |
89491-20131 |
— | ||
|
90105W0128
|
90105W0128
90105-W0128
New Genuine Part
|
90105-W0128 |
— | ||
|
90119W0019
|
90119W0019
90119-W0019
BOLT WWASHER
|
90119-W0019 |
— | ||
| replacement | |||||
|
90119W0019
|
90119W0019
90119-A0182 New Genuine Part |
90119-A0182 |
US $2.48 |
||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
8271502500
|
8271502500
82715-02500 Bracket,wiring Harness Clamp |
82715-02500 |
US $7.28 |
||
|
8271502510
|
8271502510
82715-02510 Bracket,wiring Harness Clamp |
82715-02510 |
US $7.28 |
||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9046108517
|
9046108517
90461-08517 New Genuine Part |
90461-08517 |
US $2.18 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
