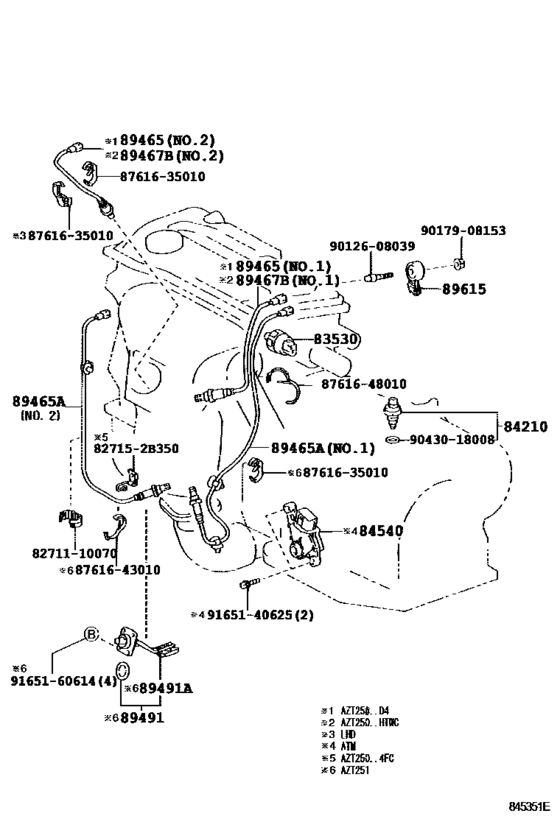

Switch & Relay & Computer ([01.2003 - ] ENGINE & TRANSMISSION (0301- )AZT25#) Diagram Toyota AVENSIS
- Year
- 2003 - 2006
- Sales region
- Europe
- Frame
- AZT251
- grade
- ELEGT
- body
- SED
- ENGINE
- 2AZFSE
- TRANSMISSION
- ATM
- From
- 09.2003
- To
- 04.2006
- Gear Shift Type
- 5FC
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[01.2003 - 04.2006] AZT25# DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.2003 - 04.2006] AZT25# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[01.2003 - 04.2006] AZT25# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.2003 - 04.2006] AZT25# YAZAKI; ZZT25# (J) |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-32110 Switch Assy, Neutral Start[01.2003 - 04.2006] AZT25#..ATM |
84540-32110 |
from US $159 |
||
|
89465
|
89465
89465-05100 Sensor, Oxygen[01.2003 - 04.2006] AZT25#..D4 NO.1 |
89465-05100 |
US $143.56 |
||
|
89465
|
89465
89465-05110 Sensor, Oxygen[01.2003 - 04.2006] AZT25#..D4 NO.2 |
89465-05110 |
US $152.88 |
||
|
89465A
|
89465A
89465-05120 Sensor, Oxygen No.2[01.2003 - 04.2006] AZT25# NO.1 |
89465-05120 |
US $160.74 |
||
|
89465A
|
89465A
89465-05130 Sensor, Oxygen No.2[01.2003 - 04.2006] AZT25# NO.2 |
89465-05130 |
US $160.74 |
||
|
89491
|
89491
89491-28071 Sensor, Engine Oil Level[09.2003 - 04.2006] AZT251 |
89491-28071 |
US $304.30 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[03.2003 - 04.2006] ADT251,AZT251,CDT250 |
89493-60010 |
from US $2.24 |
||
|
89615
|
89615
89615-02020 Sensor, Knock Control[01.2003 - 04.2006] AZT25#,ZZT25# (L) |
89615-02020 |
US $142.69 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[01.2003 - 04.2006] AZT25#,ZZT25# (J) |
89615-20090 |
from US $36.02 |
||
|
827152B350
|
827152B350
82715-2B350 Bracket,wiring Harness Clamp |
82715-2B350 |
US $4.22 |
||
|
8271110070
|
8271110070
82711-10070 Clamp, Wiring Harness |
82711-10070 |
US $3.20 |
||
|
8761635010
|
8761635010
87616-35010 Clamp, Cooling Unit Case |
87616-35010 |
from US $4.91 |
||
|
8761643010
|
8761643010
87616-43010 Clamp, Cooling Unit Case |
87616-43010 |
US $6.41 |
||
|
8761648010
|
8761648010
87616-48010 Clamp, Cooling Unit Case |
87616-48010 |
US $8.30 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
