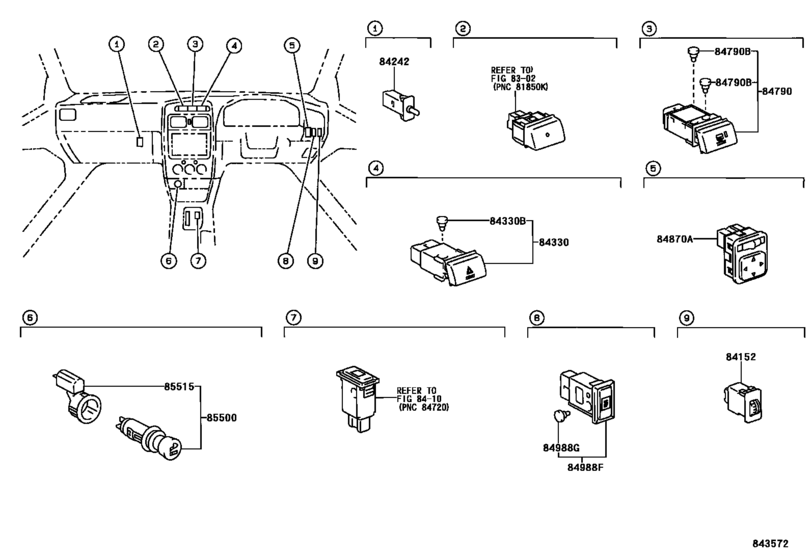

Switch & Relay & Computer ([07.2000 - ] INSTRUMENT PANEL (0007- )RHD) Diagram Toyota AVENSIS
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- CDT220
- grade
- SOL
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 07.2000
- To
- 01.2003
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-05040
Switch, Headlamp Leveling
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
84152-05040 |
— | ||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-20410 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [07.2000 -] AZT220,CDT220,ST220,ZZT22# |
84332-20410 |
US $57.51 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84790
|
84790
84790-20530 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [07.2000 -] AZT220,CDT220,ST220,ZZT22# |
84790-20530 |
US $144.14 |
||
|
84790B
|
84790B
90010-01039 Blub, Center Cluster Module Switch[07.2000 -] AZT220,CDT220,ST220,ZZT22# 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.43 |
||
|
84790B
|
84790B
90010-01049 Bulb, Main Switch Assy[07.2000 -] AZT220,CDT220,ST220,ZZT22# 14V0.91W,YELLOW CAP |
90010-01049 |
US $5.42 |
||
|
84870A
|
84870A
84870-05020
Switch Assy, Outer Mirror
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
84870-05020 |
— | ||
|
85500
|
85500
85500-09010
Lighter Assy, Cigarette
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
85500-09010 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
85500-09040 |
— | ||
|
85515
|
85515
85515-05010
Stay, Cigarette Lighter Bezel
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
85515-05010 |
— | ||
| replacement | |||||
|
85515
|
85515
85515-05011
Stay, Cigarette Lighter Bezel
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
85515-05011 |
— | ||
