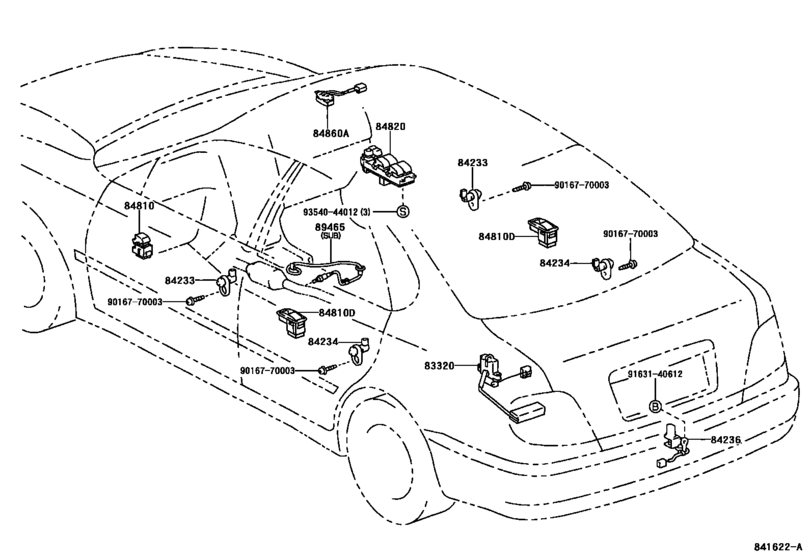

Switch & Relay & Computer ([10.1997 - ] ROOF,DOOR,SEAT & LUGGAGE (9710- )LB) Diagram Toyota AVENSIS
- Year
- 1997 - 2000
- Sales region
- Europe
- Frame
- CT220
- grade
- TERRA
- body
- LB
- ENGINE
- 2CTE
- TRANSMISSION
- MTM
- From
- 10.1997
- To
- 07.2000
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-05020
Gage Assy, Fuel Sender
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
83320-05020 |
— | ||
|
84233
|
84233
84231-05020
Switch Assy, Courtesy Lamp (For Rear Door)
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
84231-05020 |
— | ||
|
84234
|
84234
84231-05020
Switch Assy, Courtesy Lamp (For Rear Door)
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
84231-05020 |
— | ||
|
84236
|
84236
84231-20400 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) [10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB |
84231-20400 |
US $14.41 |
||
|
84810
|
84810
84810-05030
Switch Assy, Power Window Regulator
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
84810-05030 |
— | ||
|
84810D
|
84810D
84810-05040
Switch Assy, Power Window Regulator, Rear
[10.1997 - 07.2000] AT22#,CDT220,CT220,ST220 |
84810-05040 |
— | ||
| replacement | |||||
|
84810D
|
84810D
84810-05040-C0
Switch Assy, Power Window Regulator, Rear
[10.1997 - 07.2000] AT22#,CDT220,CT220,ST220 |
84810-05040-C0 |
— | ||
|
84820
|
84820
84820-05050
Master Switch Assy, Power Window Regulator
[10.1997 - 06.2002] AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD W(POWER WINDOW---FRONT & REAR) |
84820-05050 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-05051
Master Switch Assy, Power Window Regulator
[10.1997 - 06.2002] AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD W(POWER WINDOW---FRONT & REAR) |
84820-05051 |
— | ||
|
84820
|
84820
84820-05080
Master Switch Assy, Power Window Regulator
[10.1997 - 01.1999] AT22#,CT220..RHD..TERRA |
84820-05080 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-05081
Master Switch Assy, Power Window Regulator
[10.1997 - 01.1999] AT22#,CT220..RHD..TERRA |
84820-05081 |
— | ||
|
84860A
|
84860A
84860-05020-B0
Switch Assy, Sliding Roof
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LT.GRAY,TRIM1# |
84860-05020-B0 |
— | ||
|
84860A
|
84860A
84860-05020-G0
Switch Assy, Sliding Roof
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LT.GREEN,TRIM6# |
84860-05020-G0 |
— | ||
|
9016770003
|
9016770003
90167-70003 New Genuine Part |
90167-70003 |
US $0.73 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
|
9354044012
|
9354044012
93540-44012 Screw, Front Body Pillar Garnish |
93540-44012 |
US $1.46 |
||
