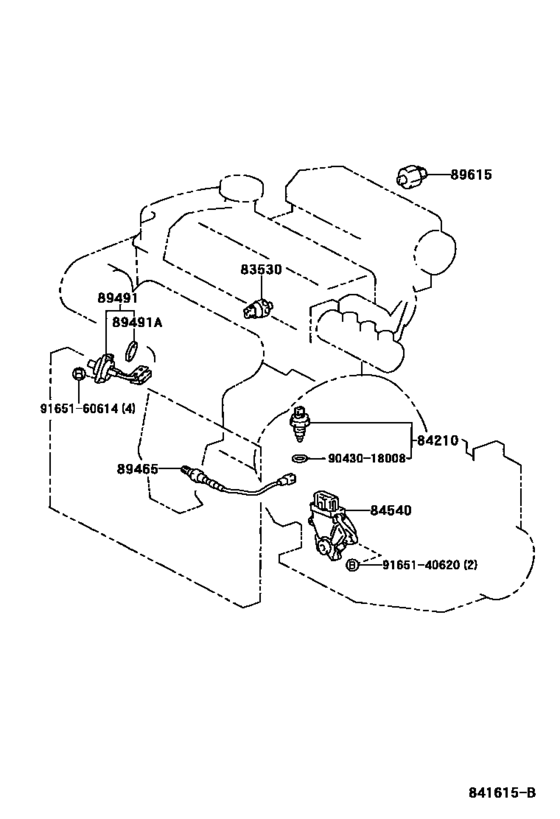

Switch & Relay & Computer ([10.1997 - ] ENGINE & TRANSMISSION (9710- )ST220) Diagram Toyota AVENSIS
- Year
- 1997 - 2003
- Sales region
- Europe
- Frame
- ST220
- grade
- SOL
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- From
- 10.1997
- To
- 01.2003
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 -] AZT220,ST220 DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] AZT220,ST220 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 -] AZT220,ST220 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[10.1997 - 03.1998] AT22# YAZAKI; ST220 |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [10.1997 - 03.1998] AT22# YAZAKI; ST220 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 -] AT22#,AZT220,ST220,ZZT22# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[10.1997 -] AT22#,AZT220,CDT220,CT220,ST220..MTM |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-20430
Sensor, Oxygen
[10.1997 -] ST220 |
89465-20430 |
— | ||
|
89491
|
89491
89491-20080 Sensor, Engine Oil LevelENGINE OIL LEVEL [10.1997 -] ST220 |
89491-20080 |
US $304.30 |
||
| replacement | |||||
|
89491
|
89491
89491-44010
Sensor, Engine Oil Level
[10.1997 -] ST220 |
89491-44010 |
— | ||
|
89491A
|
89491A
90430-27001 Gasket, Engine Oil Level Sensor[10.1997 -] CDT220,CT220,ST220 |
90430-27001 |
from US $1.09 |
||
|
89615
|
89615
89615-20030 Sensor, Knock Control[10.1997 - 10.1999] ST220 TOYOTA |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1997 - 10.1999] ST220 TOYOTA |
89615-32030 |
from US $198.14 |
||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1999 - 05.2001] AZT220,ST220 DENSO |
89615-32030 |
from US $198.14 |
||
|
89615
|
89615
89615-32040 Sensor, Knock Control[10.1999 -] ST220 TOYOTA |
89615-32040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1999 -] ST220 TOYOTA |
89615-32030 |
from US $198.14 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[10.1997 - 10.1999] ST220 DENSO |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1997 - 10.1999] ST220 DENSO |
89615-32030 |
from US $198.14 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
