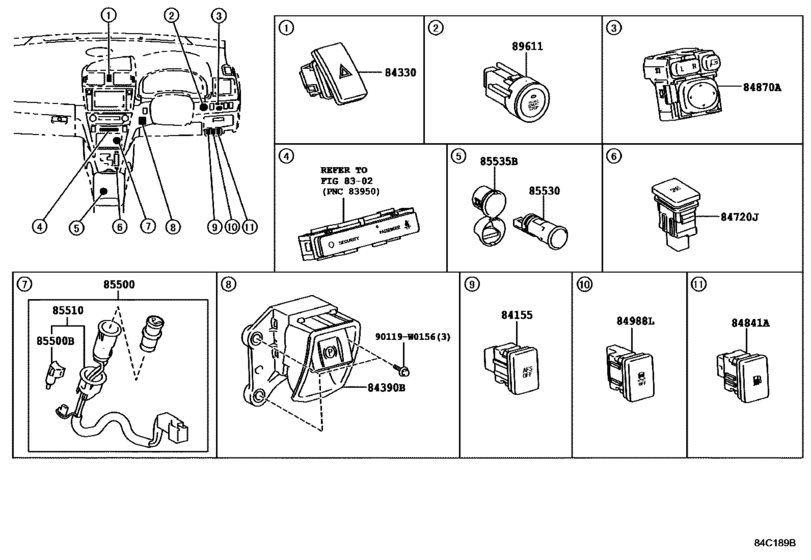

Switch & Relay & Computer ([07.2011 - 05.2015] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1107-1505)) Diagram Toyota AVENSIS
- Year
- 2011 - 2018
- Sales region
- Japan
- Frame
- ZRT272
- grade
- XI
- body
- WG
- ENGINE
- 3ZRFAE
- From
- 07.2011
- Gear Shift Type
- CVT
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84155
|
84155
84155-05010 Switch, Headlamp Swivel MainHEADLAMP SWIVEL MAIN [07.2011 - 11.2011] ZRT272 |
84155-05010 |
US $35.96 |
||
|
84155
|
84155
84155-05011 Switch, Headlamp Swivel Main[02.2015 - 05.2015] ZRT272 |
84155-05011 |
US $39.60 |
||
|
84330
|
84330
84332-05060 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [07.2011 - 11.2011] ZRT272 |
84332-05060 |
US $47.61 |
||
|
84330
|
84330
84332-05070 Switch Assy, Hazard Warning Signal[02.2012 - 12.2014] ZRT272 |
84332-05070 |
US $39.60 |
||
| replacement | |||||
|
84330
|
84330
84332-05071 Switch Assy, Hazard Warning Signal[02.2012 - 12.2014] ZRT272 |
84332-05071 |
US $39.60 |
||
|
84330
|
84330
84332-05071 Switch Assy, Hazard Warning Signal[01.2015 - 05.2015] ZRT272 |
84332-05071 |
US $39.60 |
||
|
84330
|
84330
84332-05080 Switch Assy, Hazard Warning Signal[07.2015 -] ZRT272 |
84332-05080 |
US $35.96 |
||
|
84390B
|
84390B
84390-05020
Switch Assy, Electric Parking Brake
[07.2011 - 11.2011] ZRT272 |
84390-05020 |
— | ||
|
84390B
|
84390B
84390-05040 Switch Assy, Electric Parking Brake[07.2015 -] ZRT272 |
84390-05040 |
US $35.96 |
||
|
84720J
|
84720J
84720-02051 Switch Assy, Pattern Select[07.2015 -] ZRT272 |
84720-02051 |
US $35.96 |
||
|
84720J
|
84720J
84720-05020 Switch Assy, Pattern SelectPATTERN SELECT [07.2011 - 11.2011] ZRT272 |
84720-05020 |
US $39.60 |
||
| replacement | |||||
|
84720J
|
84720J
84720-05021 Switch Assy, Pattern Select[07.2011 - 11.2011] ZRT272 |
84720-05021 |
US $39.60 |
||
|
84720J
|
84720J
84720-05021 Switch Assy, Pattern Select[02.2015 - 05.2015] ZRT272 |
84720-05021 |
US $39.60 |
||
|
84841A
|
84841A
84841-05020 Switch, Fuel Lid OpenerFUEL LID OPENER [07.2011 - 11.2011] ZRT272 |
84841-05020 |
US $39.60 |
||
| replacement | |||||
|
84841A
|
84841A
84841-05021 Switch, Fuel Lid Opener[07.2011 - 11.2011] ZRT272 |
84841-05021 |
US $39.60 |
||
|
84841A
|
84841A
84841-05021 Switch, Fuel Lid Opener[02.2015 - 05.2015] ZRT272 |
84841-05021 |
US $39.60 |
||
|
84841A
|
84841A
84841-05030 Switch, Fuel Lid Opener[07.2015 -] ZRT272 |
84841-05030 |
US $35.96 |
||
|
84870A
|
84870A
84872-05020 Switch Assy, Outer MirrorOUTER MIRROR [07.2011 - 11.2011] ZRT272 |
84872-05020 |
US $76.35 |
||
|
84870A
|
84870A
84872-05040
Switch Assy, Outer Mirror
[07.2015 -] ZRT272 |
84872-05040 |
— | ||
|
84988L
|
84988L
84988-02041
Switch, Vsc Off
[07.2015 -] ZRT272 |
84988-02041 |
— | ||
|
84988L
|
84988L
84988-05020 Switch, Vsc OffVSC OFF [07.2011 - 11.2011] ZRT272 |
84988-05020 |
US $39.60 |
||
| replacement | |||||
|
84988L
|
84988L
84988-05021 Switch, Vsc Off[07.2011 - 11.2011] ZRT272 |
84988-05021 |
US $39.60 |
||
|
84988L
|
84988L
84988-05021 Switch, Vsc Off[01.2015 - 05.2015] ZRT272 |
84988-05021 |
US $39.60 |
||
|
85500
|
85500
85500-05031 Lighter Assy, Cigarette[07.2011 - 11.2011] ZRT272 |
85500-05031 |
US $34.65 |
||
|
85500B
|
85500B
90011-11055 Bulb, Cigarette Lighter[02.2012 - 05.2015] ZRT272 |
90011-11055 |
US $4.22 |
||
|
85510
|
85510
85510-05020 Socket & Retainer Assy, Cigarlighter[07.2011 - 11.2011] ZRT272 |
85510-05020 |
US $14.02 |
||
|
85530
|
85530
85530-0D020 Socket Assy, Power Outlet, No.1[07.2011 - 11.2011] ZRT272 |
85530-0D020 |
US $30.40 |
||
|
85530
|
85530
85530-0D021 Socket Assy, Power Outlet, No.1[08.2016 -] ZRT272 |
85530-0D021 |
US $26.60 |
||
|
85535B
|
85535B
85535-52040 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [07.2011 - 11.2011] ZRT272 |
85535-52040 |
from US $4.02 |
||
|
89611
|
89611
89611-02012 Switch, Push Start[07.2011 - 11.2011] ZRT272 |
89611-02012 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-02013 Switch, Push Start[07.2011 - 11.2011] ZRT272 |
89611-02013 |
US $122.30 |
||
|
89611
|
89611
89611-02013 Switch, Push Start[05.2012 - 05.2015] ZRT272 |
89611-02013 |
US $122.30 |
||
|
89611
|
89611
89611-05010 Switch, Push Start[07.2015 - 05.2016] ZRT272 |
89611-05010 |
US $122.30 |
||
|
89611
|
89611
89611-05011
Switch, Push Start
[06.2016 -] ZRT272 |
89611-05011 |
— | ||
|
90119W0156
|
90119W0156
90119-W0156 New Genuine Part |
90119-W0156 |
US $1.46 |
||
