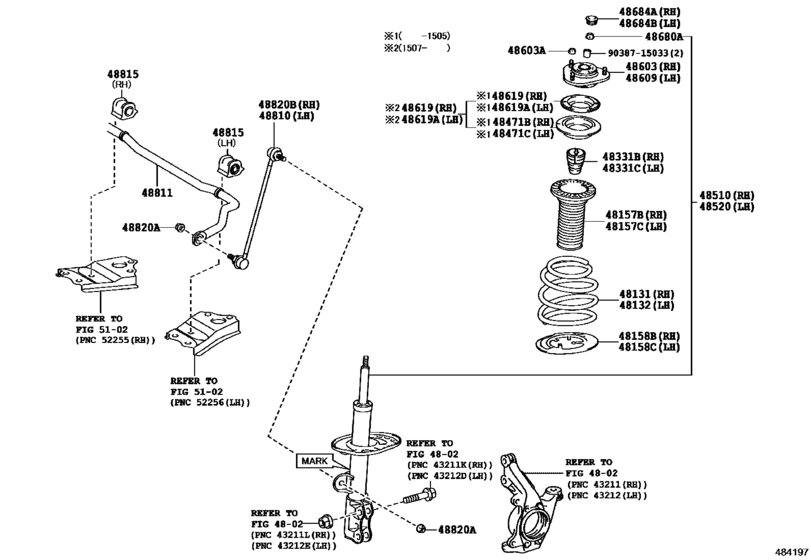

Front Spring & Shock Absorber ([07.2011 - ] (1107- )) Diagram Toyota AVENSIS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- ZRT272
- grade
- LI
- body
- WG
- ENGINE
- 3ZRFAE
- From
- 02.2012
- Gear Shift Type
- CVT
- Fuel Induction
- HTWVM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-05A10 Spring, Front Coil, RhFRONT COIL, RH [02.2012 - 05.2015] ZRT272 |
48131-05A10 |
US $118.81 |
||
|
48131
|
48131
48131-05C10
Spring, Front Coil
[07.2015 - 09.2017] ZRT272 |
48131-05C10 |
— | ||
| replacement | |||||
|
48131
|
48131
48131-05C11 Spring, Front Coil[07.2015 - 09.2017] ZRT272 |
48131-05C11 |
US $99.59 |
||
|
48132
|
48132
48131-05A10 Spring, Front Coil, RhFRONT COIL, RH [02.2012 - 05.2015] ZRT272 |
48131-05A10 |
US $118.81 |
||
|
48132
|
48132
48131-05C10
Spring, Front Coil
[07.2015 - 09.2017] ZRT272 |
48131-05C10 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-05C11 Spring, Front Coil[07.2015 - 09.2017] ZRT272 |
48131-05C11 |
US $99.59 |
||
|
48157B
|
48157B
48157-05020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [02.2012 - 05.2015] ZRT272 |
48157-05020 |
from US $20.03 |
||
|
48157C
|
48157C
48157-05020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [02.2012 - 05.2015] ZRT272 |
48157-05020 |
from US $20.03 |
||
|
48158B
|
48158B
48158-05020 Insulator, Front Coil Spring, Lower RhFRONT COIL SPRING, LOWER RH [02.2012 - 05.2015] ZRT272 |
48158-05020 |
US $19.30 |
||
|
48158C
|
48158C
48158-05020 Insulator, Front Coil Spring, Lower RhFRONT COIL SPRING, LOWER RH [02.2012 - 05.2015] ZRT272 |
48158-05020 |
US $19.30 |
||
|
48331B
|
48331B
48331-05060 Bumper, Front Spring, RhFRONT SPRING, RH [02.2012 - 05.2015] ZRT272 |
48331-05060 |
from US $10.04 |
||
|
48331C
|
48331C
48331-05060 Bumper, Front Spring, RhFRONT SPRING, RH [02.2012 - 05.2015] ZRT272 |
48331-05060 |
from US $10.04 |
||
|
48471B
|
48471B
48471-05020 Seat, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [02.2012 - 05.2015] ZRT272 |
48471-05020 |
US $20.98 |
||
|
48471C
|
48471C
48471-05020 Seat, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [02.2012 - 05.2015] ZRT272 |
48471-05020 |
US $20.98 |
||
|
48510
|
48510
48510-8Z042 Absorber Assy, Shock, Front Rh[02.2012 - 05.2015] ZRT272 マーク ４８５１０−０５３２３ |
48510-8Z042 |
US $230.05 |
||
|
48510
|
48510
48510-8Z227 Absorber Assy, Shock, Front Rh[07.2015 -] ZRT272 マーク ４８５１０−０５３９０ |
48510-8Z227 |
US $258.40 |
||
|
48520
|
48520
48520-09W60 Absorber Assy, Shock, Front Lh[02.2012 - 05.2015] ZRT272 マーク ４８５２０−０５３２３ |
48520-09W60 |
US $230.05 |
||
|
48520
|
48520
48520-8Z092 Absorber Assy, Shock, Front Lh[07.2015 -] ZRT272 マーク ４８５２０−０５３９０ |
48520-8Z092 |
US $288.40 |
||
|
48603
|
48603
48609-05060 Support Sub-Assy, Front Suspension, Rh[07.2015 -] ZRT272 |
48609-05060 |
US $56.78 |
||
|
48603
|
48603
48609-0F021 Support Sub-Assy, Front Suspension, Rh[02.2012 - 05.2015] ZRT272 |
48609-0F021 |
from US $83.85 |
||
|
48603A
|
48603A
90178-10030 Nut(For Front Suspension Support)[02.2012 - 05.2015] ZRT272 |
90178-10030 |
from US $0.92 |
||
|
48609
|
48609
48609-05060 Support Sub-Assy, Front Suspension, Rh[07.2015 -] ZRT272 |
48609-05060 |
US $56.78 |
||
|
48609
|
48609
48609-0F021 Support Sub-Assy, Front Suspension, Rh[02.2012 - 05.2015] ZRT272 |
48609-0F021 |
from US $83.85 |
||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[02.2012 - 05.2015] ZRT272 |
48619-28010 |
from US $14.47 |
||
|
48619
|
48619
48619-42010 Bearing, Strut Mounting, Rh[07.2015 -] ZRT272 |
48619-42010 |
from US $45.92 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[02.2012 - 05.2015] ZRT272 |
48619-28010 |
from US $14.47 |
||
|
48619A
|
48619A
48619-42010 Bearing, Strut Mounting, Rh[07.2015 -] ZRT272 |
48619-42010 |
from US $45.92 |
||
|
48680A
|
48680A
90177-14005 Nut(For Front Support To Front Shock Absorber)[02.2012 - 05.2015] ZRT272 |
90177-14005 |
US $1.92 |
||
|
48684A
|
48684A
48684-05030 Cover, Front Suspension Support Dust, RhFRONT SUSPENSION SUPPORT DUST, RH [02.2012 - 05.2015] ZRT272 |
48684-05030 |
US $11.94 |
||
|
48684B
|
48684B
48684-05030 Cover, Front Suspension Support Dust, RhFRONT SUSPENSION SUPPORT DUST, RH [02.2012 - 05.2015] ZRT272 |
48684-05030 |
US $11.94 |
||
|
48810
|
48810
48820-02070
Link Assy, Front Stabilizer, Lh
[02.2012 - 05.2015] ZRT272 |
48820-02070 |
— | ||
|
48811
|
48811
48811-02200 Bar, Stabilizer, FrontSTABILIZER, FRONT [07.2015 -] ZRT272 |
48811-02200 |
US $131.04 |
||
|
48811
|
48811
48811-05140
Bar, Stabilizer, Front
[02.2012 - 05.2015] ZRT272 |
48811-05140 |
— | ||
|
48815
|
48815
48815-05120 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [07.2015 -] ZRT272 右側 |
48815-05120 |
from US $16.60 |
||
|
48815
|
48815
48815-05130 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [07.2015 -] ZRT272 左側 |
48815-05130 |
from US $16.60 |
||
|
48815
|
48815
48815-05160 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [02.2012 - 05.2015] ZRT272 右側 |
48815-05160 |
from US $18 |
||
|
48815
|
48815
48815-05170 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [02.2012 - 05.2015] ZRT272 左側 |
48815-05170 |
from US $18 |
||
|
48820A
|
48820A
90178-W0051 Nut(For Front Stabilizer Link)[02.2012 - 05.2015] ZRT272 |
90178-W0051 |
US $1.31 |
||
|
48820A
|
48820A
94151-21241 Nut(For Front Stabilizer Link)[07.2015 -] ZRT272 （Ｊ） |
94151-21241 |
from US $1.01 |
||
|
48820B
|
48820B
48820-02070
Link Assy, Front Stabilizer, Lh
[02.2012 - 05.2015] ZRT272 |
48820-02070 |
— | ||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.20 |
||
