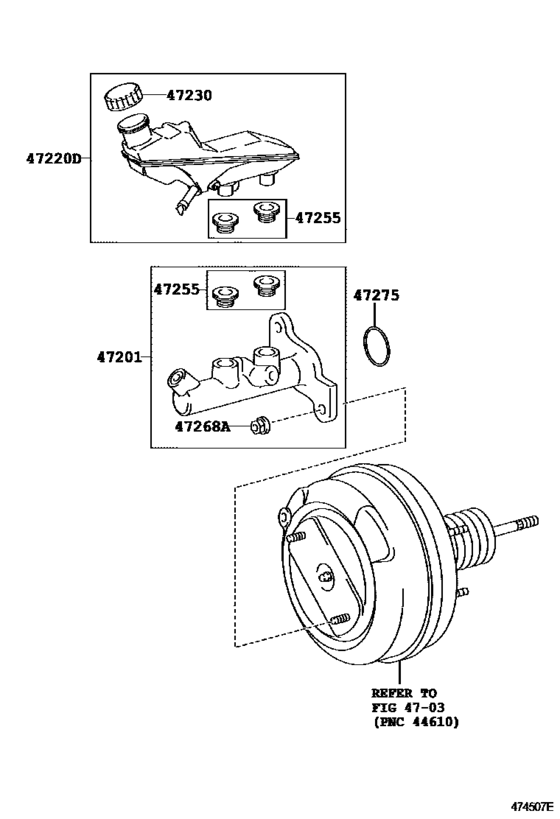

Brake Master Cylinder ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47025-09010 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [02.2005 - 12.2008] KGB10,WNB10..LHD |
47025-09010 |
US $1,336.61 |
||
|
47201
|
47201
47025-09030
Cylinder Sub-Assy, Brake Master
[03.2007 - 12.2008] KGB10,WNB10..LHD WITH(VSC) |
47025-09030 |
— | ||
|
47220D
|
47220D
47221-09010
Reservoir Assy, Brake Master Cylinder
[02.2005 - 12.2008] KGB10,WNB10..LHD |
47221-09010 |
— | ||
|
47230
|
47230
47230-0D010 Cap Assy, Brake Master Cylinder Reservoir Filler[12.2007 - 12.2008] KGB10,WNB10 |
47230-0D010 |
from US $15.33 |
||
|
47230
|
47230
47230-0H010
Cap Assy, Brake Master Cylinder Reservoir Filler
[02.2005 - 11.2007] KGB10,WNB10 |
47230-0H010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-0D010 Cap Assy, Brake Master Cylinder Reservoir Filler[02.2005 - 11.2007] KGB10,WNB10 |
47230-0D010 |
from US $15.33 |
||
|
47255
|
47255
47255-09040 Grommet, Master Cylinder ReservoirMASTER CYLINDER RESERVOIR [02.2005 - 12.2008] KGB10,WNB10 |
47255-09040 |
US $9.26 |
||
|
47268A
|
47268A
47268-0D010 Nut, Brake Master Cylinder[02.2005 - 12.2008] KGB10,WNB10 |
47268-0D010 |
US $2.04 |
||
|
47275
|
47275
47275-0H010
Gasket, Brake Master Cylinder
[02.2005 - 12.2008] KGB10,WNB10 |
47275-0H010 |
— | ||
