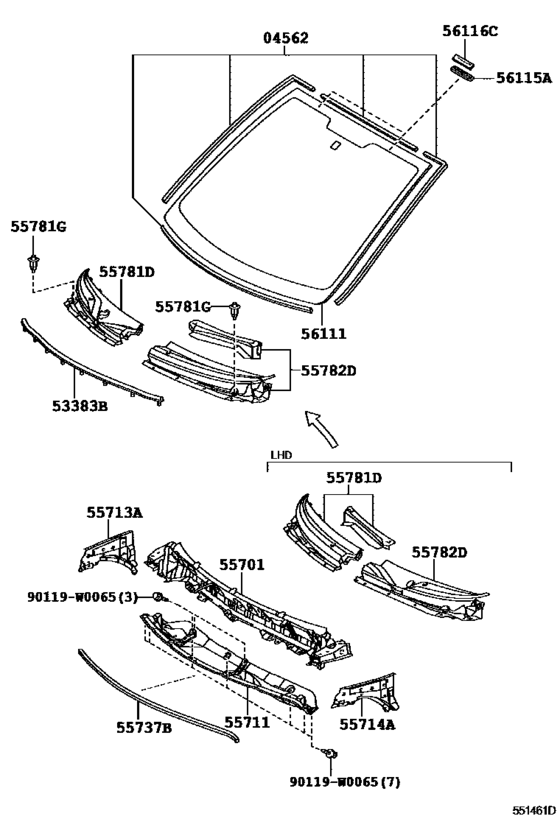

Cowl Panel & Windshield Glass ([02.2005 - 02.2012] (0502-1202)) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-0H010 Dam Kit, Windshield GlassWINDSHIELD GLASS [02.2005 - 12.2008] KGB10,WNB10 |
04562-0H010 |
US $25.86 |
||
|
53383B
|
53383B
53383-0H010
Seal, Hood To Cowl Top
[02.2005 - 12.2008] KGB10,WNB10 |
53383-0H010 |
— | ||
|
53383B
|
53383B
53383-0H020
Seal, Hood To Cowl Top
[02.2012 -] KGB10 |
53383-0H020 |
— | ||
|
55701
|
55701
55700-0H040
Panel Sub-Assy, Cowl
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55700-0H040 |
— | ||
|
55711
|
55711
55701-0H020
Panel, Cowl Top, Outer
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55701-0H020 |
— | ||
|
55711
|
55711
55701-0H040
Panel, Cowl Top, Outer
[02.2012 -] KGB10..LHD |
55701-0H040 |
— | ||
|
55713A
|
55713A
55713-0H010
Panel, Cowl Top Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
55713-0H010 |
— | ||
|
55714A
|
55714A
55714-0H010
Panel, Cowl Top Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
55714-0H010 |
— | ||
|
55737B
|
55737B
55737-0H010
Seal, Heater Air Duct Splash Shield, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
55737-0H010 |
— | ||
| replacement | |||||
|
55737B
|
55737B
55737-0H011
Seal, Heater Air Duct Splash Shield, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
55737-0H011 |
— | ||
|
55737B
|
55737B
55737-0H011
Seal, Heater Air Duct Splash Shield, No.1
[07.2012 -] KGB10 |
55737-0H011 |
— | ||
|
55781D
|
55781D
55708-0H010
Louver, Cowl Top Ventilator, Rh
[02.2005 - 12.2008] KGB10..LHD |
55708-0H010 |
— | ||
|
55781D
|
55781D
55708-0H080
Louver, Cowl Top Ventilator, Rh
[02.2012 -] KGB10..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); KGB10..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
55708-0H080 |
— | ||
|
55781D
|
55781D
55708-0H090
Louver, Cowl Top Ventilator, Rh
[02.2012 -] KGB10..LHD |
55708-0H090 |
— | ||
|
55781G
|
55781G
90467-W0008-C0
Clip, Cowl Top Ventilator Louver
[02.2005 - 12.2008] KGB10,WNB10 BLACK |
90467-W0008-C0 |
— | ||
|
55782D
|
55782D
55709-0H010
Louver, Cowl Top Ventilator, Lh
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55709-0H010 |
— | ||
|
56111
|
56111
56101-0H010
Glass, Windshield
[02.2005 - 04.2007] KGB10,WNB10 *LAM,T=4.56,GREEN |
56101-0H010 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0H020
Glass, Windshield
[02.2005 - 04.2007] KGB10,WNB10 *LAM,T=4.56,GREEN |
56101-0H020 |
— | ||
|
56111
|
56111
56101-0H011 Glass, WindshieldWINDSHIELD [05.2007 - 03.2008] KGB10,WNB10 *LAM,T=4.56,GREEN |
56101-0H011 |
US $1,090.54 |
||
| replacement | |||||
|
56111
|
56111
56101-0H020
Glass, Windshield
[05.2007 - 03.2008] KGB10,WNB10 *LAM,T=4.56,GREEN |
56101-0H020 |
— | ||
|
56111
|
56111
56101-0H020
Glass, Windshield
[03.2008 - 12.2008] KGB10,WNB10 *LAM,T=4.56,GREEN |
56101-0H020 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[02.2005 - 12.2008] KGB10,WNB10 |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[02.2005 - 12.2008] KGB10,WNB10 |
56116-22050 |
from US $1.38 |
||
|
90119W0065
|
90119W0065
90119-W0065
New Genuine Part
|
90119-W0065 |
— | ||
