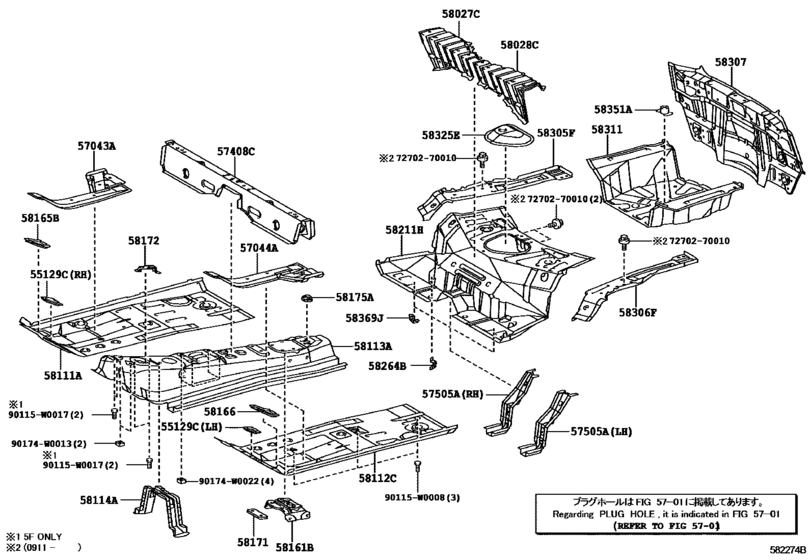

Floor Pan & Lower Back Panel ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-0H010
Cover, Dash Panel Hole
[02.2005 - 12.2008] KGB10,WNB10 RH |
55129-0H010 |
— | ||
|
55129C
|
55129C
55139-0H010
Cover, Dash Panel Hole
[02.2005 - 12.2008] KGB10,WNB10 LH |
55139-0H010 |
— | ||
|
57043A
|
57043A
57043-0H010
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[02.2005 - 02.2007] KGB10,WNB10 |
57043-0H010 |
— | ||
|
57043A
|
57043A
57043-0H011
Reinforcement Sub-Assy, Front Side Member, Rear Rh
[04.2013 -] KGB10 |
57043-0H011 |
— | ||
|
57044A
|
57044A
57044-0H010
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[02.2005 - 02.2007] KGB10,WNB10 |
57044-0H010 |
— | ||
|
57044A
|
57044A
57044-0H011
Reinforcement Sub-Assy, Front Side Member, Rear Lh
[04.2013 -] KGB10 |
57044-0H011 |
— | ||
|
57408C
|
57408C
57408-0H010
Member Sub-Assy, Front Floor Cross
[02.2005 - 08.2006] KGB10,WNB10 |
57408-0H010 |
— | ||
| replacement | |||||
|
57408C
|
57408C
57408-0H011
Member Sub-Assy, Front Floor Cross
[02.2005 - 08.2006] KGB10,WNB10 |
57408-0H011 |
— | ||
|
57408C
|
57408C
57408-0H011
Member Sub-Assy, Front Floor Cross
[09.2006 - 02.2007] KGB10,WNB10 |
57408-0H011 |
— | ||
|
57505A
|
57505A
57505-0H010
Reinforcement Sub-Assy, Front Floor Under
[02.2005 - 12.2008] KGB10,WNB10 RH |
57505-0H010 |
— | ||
|
57505A
|
57505A
57506-0H010
Reinforcement Sub-Assy, Front Floor Under
[02.2005 - 12.2008] KGB10,WNB10 LH |
57506-0H010 |
— | ||
|
58027C
|
58027C
58027-0H010
Panel Sub-Assy, Center Floor Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
58027-0H010 |
— | ||
|
58028C
|
58028C
58028-0H010
Panel Sub-Assy, Center Floor Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
58028-0H010 |
— | ||
|
58111A
|
58111A
58111-0H010
Pan, Front Floor, Rh
[02.2005 - 02.2007] KGB10,WNB10 |
58111-0H010 |
— | ||
|
58112C
|
58112C
58112-0H901
Pan, Front Floor, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
58112-0H901 |
— | ||
|
58113A
|
58113A
58113-0H901
Panel, Front Floor, Center
[02.2005 - 12.2008] KGB10,WNB10..5F |
58113-0H901 |
— | ||
| replacement | |||||
|
58113A
|
58113A
58113-0H903
Panel, Front Floor, Center
[02.2005 - 12.2008] KGB10,WNB10..5F |
58113-0H903 |
— | ||
|
58114A
|
58114A
58114-0H010
Reinforcement, Front Floor Panel
[02.2005 - 12.2008] KGB10,WNB10 |
58114-0H010 |
— | ||
|
58161B
|
58161B
58161-0H010
Reinforcement, Belt Anchor To Floor Pan
[02.2005 - 12.2008] KGB10,WNB10 |
58161-0H010 |
— | ||
| replacement | |||||
|
58161B
|
58161B
58161-0H011
Reinforcement, Belt Anchor To Floor Pan
[02.2005 - 12.2008] KGB10,WNB10 |
58161-0H011 |
— | ||
|
58161B
|
58161B
58161-0H011
Reinforcement, Belt Anchor To Floor Pan
[04.2014 - 05.2014] KGB10 |
58161-0H011 |
— | ||
|
58165B
|
58165B
58165-0H010
Cover, Front Floor Hole
[02.2005 - 12.2008] KGB10,WNB10 |
58165-0H010 |
— | ||
|
58166
|
58166
58166-0H010
Cover, Front Floor Hole
[02.2005 - 12.2008] KGB10,WNB10 |
58166-0H010 |
— | ||
|
58171
|
58171
58171-0H010
Reinforcement, Parking Brake Base
[02.2005 - 12.2008] KGB10,WNB10 |
58171-0H010 |
— | ||
| replacement | |||||
|
58171
|
58171
58171-0H011
Reinforcement, Parking Brake Base
[02.2005 - 12.2008] KGB10,WNB10 |
58171-0H011 |
— | ||
|
58172
|
58172
58172-0H010
Bracket, Computer Mounting, No.3
[02.2005 - 12.2008] KGB10,WNB10 |
58172-0H010 |
— | ||
| replacement | |||||
|
58172
|
58172
58172-0H011
Bracket, Computer Mounting, No.3
[02.2005 - 12.2008] KGB10,WNB10 |
58172-0H011 |
— | ||
|
58175A
|
58175A
58175-0H010
Reinforcement, Parking Brake Base, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
58175-0H010 |
— | ||
| replacement | |||||
|
58175A
|
58175A
58175-0H011
Reinforcement, Parking Brake Base, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
58175-0H011 |
— | ||
|
58211H
|
58211H
58211-0H010
Pan, Center Floor
[02.2005 - 12.2008] KGB10,WNB10 |
58211-0H010 |
— | ||
|
58264B
|
58264B
58264-0H020
Bracket, Parking Brake Cable Guide
[02.2005 - 12.2008] KGB10,WNB10 |
58264-0H020 |
— | ||
|
58305F
|
58305F
58305-0H010
Panel Sub-Assy, Rear Floor Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
58305-0H010 |
— | ||
|
58306F
|
58306F
58306-0H010
Panel Sub-Assy, Rear Floor Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
58306-0H010 |
— | ||
|
58307
|
58307
58307-0H010
Panel Sub-Assy, Body Lower Back
[02.2005 - 12.2008] KGB10,WNB10 |
58307-0H010 |
— | ||
|
58311
|
58311
58311-0H010
Pan, Rear Floor
[02.2005 - 12.2008] KGB10,WNB10 |
58311-0H010 |
— | ||
|
58325E
|
58325E
58325-0H010
Cover, Rear Floor Service Hole
[02.2005 - 12.2008] KGB10,WNB10 |
58325-0H010 |
— | ||
|
58325E
|
58325E
58325-0H021
Cover, Rear Floor Service Hole
[06.2013 -] KGB10 |
58325-0H021 |
— | ||
|
58351A
|
58351A
58351-0H010
Bracket, Spare Wheel Carrier
[02.2005 - 12.2008] KGB10,WNB10 |
58351-0H010 |
— | ||
|
58369J
|
58369J
58369-0H010
Bracket, Rear Floor Brace
[02.2005 - 12.2008] KGB10,WNB10 |
58369-0H010 |
— | ||
|
90115W0008
|
90115W0008
90115-W0008 Bolt, Weld(For Front Floor Pan, Lh)WELD(FOR FRONT FLOOR PAN, LH) |
90115-W0008 |
US $0.73 |
||
|
90115W0017
|
90115W0017
90115-W0017
New Genuine Part
|
90115-W0017 |
— | ||
|
90174W0013
|
90174W0013
90174-W0013
New Genuine Part
|
90174-W0013 |
— | ||
|
90174W0022
|
90174W0022
90174-W0022
New Genuine Part
|
90174-W0022 |
— | ||
|
7270270010
|
7270270010
72702-70010
Bracket Sub-assy, Rear Seat Back Striker
|
72702-70010 |
— | ||
