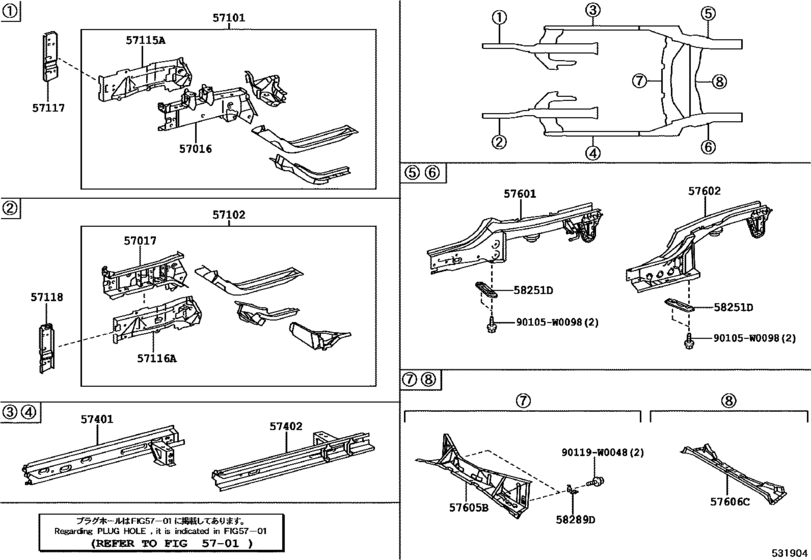

Floor Side Member ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57016
|
57016
57016-0H010
Reinforcement Sub-Assy, Front Side Member, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57016-0H010 |
— | ||
|
57017
|
57017
57017-0H010
Reinforcement Sub-Assy, Front Side Member, Lh
[02.2005 - 08.2006] KGB10,WNB10 |
57017-0H010 |
— | ||
| replacement | |||||
|
57017
|
57017
57017-0H011
Reinforcement Sub-Assy, Front Side Member, Lh
[02.2005 - 08.2006] KGB10,WNB10 |
57017-0H011 |
— | ||
|
57017
|
57017
57017-0H011
Reinforcement Sub-Assy, Front Side Member, Lh
[09.2006 - 12.2008] KGB10,WNB10 |
57017-0H011 |
— | ||
|
57101
|
57101
57101-0H010
Member Sub-Assy, Front Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57101-0H010 |
— | ||
| replacement | |||||
|
57101
|
57101
57101-0H011
Member Sub-Assy, Front Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57101-0H011 |
— | ||
|
57102
|
57102
57102-0H010
Member Sub-Assy, Front Side, Lh
[02.2005 - 08.2006] KGB10,WNB10 |
57102-0H010 |
— | ||
| replacement | |||||
|
57102
|
57102
57102-0H011
Member Sub-Assy, Front Side, Lh
[02.2005 - 08.2006] KGB10,WNB10 |
57102-0H011 |
— | ||
|
57102
|
57102
57102-0H011
Member Sub-Assy, Front Side, Lh
[09.2006 - 12.2008] KGB10,WNB10 |
57102-0H011 |
— | ||
|
57115A
|
57115A
57025-0H010
Plate, Front Side Member, Outer Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57025-0H010 |
— | ||
|
57116A
|
57116A
57026-0H010
Plate, Front Side Member, Outer Lh
[02.2005 - 08.2006] KGB10,WNB10 |
57026-0H010 |
— | ||
|
57117
|
57117
57117-0H010
Plate Sub-Assy, Front Side Member, Front Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57117-0H010 |
— | ||
|
57118
|
57118
57118-0H010
Plate Sub-Assy, Front Side Member, Front Lh
[02.2005 - 12.2008] KGB10,WNB10 |
57118-0H010 |
— | ||
|
57401
|
57401
57401-0H010
Member Sub-Assy, Main Floor Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57401-0H010 |
— | ||
| replacement | |||||
|
57401
|
57401
57401-0H011
Member Sub-Assy, Main Floor Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57401-0H011 |
— | ||
|
57401
|
57401
57401-0H011
Member Sub-Assy, Main Floor Side, Rh
[10.2011 - 02.2012] KGB10 |
57401-0H011 |
— | ||
|
57402
|
57402
57402-0H010
Member Sub-Assy, Main Floor Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
57402-0H010 |
— | ||
| replacement | |||||
|
57402
|
57402
57402-0H011
Member Sub-Assy, Main Floor Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
57402-0H011 |
— | ||
|
57402
|
57402
57402-0H011
Member Sub-Assy, Main Floor Side, Lh
[10.2011 - 02.2012] KGB10 |
57402-0H011 |
— | ||
|
57601
|
57601
57601-0H010
Member Sub-Assy, Rear Floor Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
57601-0H010 |
— | ||
|
57602
|
57602
57602-0H010
Member Sub-Assy, Rear Floor Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
57602-0H010 |
— | ||
| replacement | |||||
|
57602
|
57602
57602-0H020
Member Sub-Assy, Rear Floor Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
57602-0H020 |
— | ||
|
57602
|
57602
57602-0H020
Member Sub-Assy, Rear Floor Side, Lh
[08.2009 - 02.2012] KGB10 |
57602-0H020 |
— | ||
|
57605B
|
57605B
57605-0H010
Member Sub-Assy, Rear Floor Cross, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
57605-0H010 |
— | ||
|
57606C
|
57606C
57606-0H010
Member Sub-Assy, Rear Floor Cross, No.2
[02.2005 - 12.2008] KGB10,WNB10 |
57606-0H010 |
— | ||
|
58251D
|
58251D
58251-0H010
Brace, Floor Panel, Front
[02.2005 - 12.2008] KGB10,WNB10 |
58251-0H010 |
— | ||
|
58289D
|
58289D
58289-0H010
Bracket, Floor Brake Hose, Rear
[02.2005 - 12.2008] KGB10,WNB10 |
58289-0H010 |
— | ||
|
90105W0098
|
90105W0098
90105-W0098
New Genuine Part
|
90105-W0098 |
— | ||
|
90119W0048
|
90119W0048
90119-W0048 New Genuine Part |
90119-W0048 |
US $1.02 |
||
