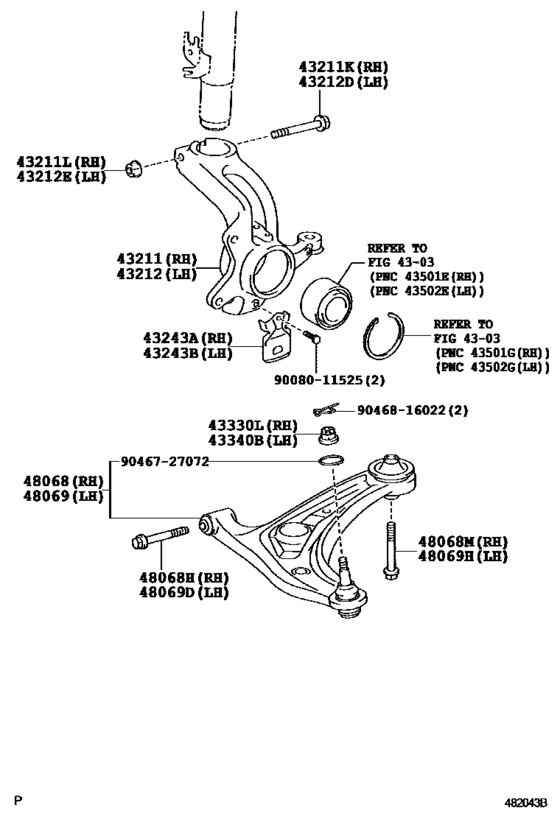

Front Axle Arm & Steering Knuckle ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-0H010
Knuckle, Steering, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
43211-0H010 |
— | ||
|
43211
|
43211
43211-0H040
Knuckle, Steering, Rh
[07.2013 -] KGB10 |
43211-0H040 |
— | ||
|
43211K
|
43211K
90105-W0091
Bolt (For Steering Knuckle Rh)
[02.2005 - 12.2008] KGB10,WNB10 OD=12 |
90105-W0091 |
— | ||
|
43211L
|
43211L
90178-W0051 Nut(For Front Stabilizer Link)[02.2005 - 12.2008] KGB10,WNB10 |
90178-W0051 |
US $1.31 |
||
|
43212
|
43212
43212-0H010
Knuckle, Steering, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
43212-0H010 |
— | ||
|
43212
|
43212
43212-0H040
Knuckle, Steering, Lh
[07.2013 -] KGB10 |
43212-0H040 |
— | ||
|
43212D
|
43212D
90105-W0091
Bolt (For Steering Knuckle Rh)
[02.2005 - 12.2008] KGB10,WNB10 OD=12 |
90105-W0091 |
— | ||
|
43212E
|
43212E
90178-W0051 Nut(For Front Stabilizer Link)[02.2005 - 12.2008] KGB10,WNB10 |
90178-W0051 |
US $1.31 |
||
|
43243A
|
43243A
43243-0H010
Insulator, Steering Knuckle Heat, Fr Rh
[02.2005 - 12.2008] KGB10,WNB10 |
43243-0H010 |
— | ||
|
43243B
|
43243B
43243-0H010
Insulator, Steering Knuckle Heat, Fr Rh
[02.2005 - 12.2008] KGB10,WNB10 |
43243-0H010 |
— | ||
|
43330L
|
43330L
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[02.2005 - 12.2008] KGB10,WNB10 |
90171-12007 |
US $1.76 |
||
|
43340B
|
43340B
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[02.2005 - 12.2008] KGB10,WNB10 |
90171-12007 |
US $1.76 |
||
|
48068
|
48068
48068-0H010
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48068-0H010 |
— | ||
|
48068H
|
48068H
90119-W0111
Bolt(For Front Suspension Lower Arm No.1 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0111 |
— | ||
| replacement | |||||
|
48068H
|
48068H
90119-W0265
Bolt(For Front Suspension Lower Arm No.1 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0265 |
— | ||
|
48068H
|
48068H
90119-W0265
Bolt(For Front Suspension Lower Arm No.1 Rh)
[04.2014 - 05.2014] KGB10 |
90119-W0265 |
— | ||
|
48068M
|
48068M
90119-W0110
Bolt(For Front Suspension Lower Arm No.2 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0110 |
— | ||
| replacement | |||||
|
48068M
|
48068M
90119-W0264
Bolt(For Front Suspension Lower Arm No.2 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0264 |
— | ||
|
48068M
|
48068M
90119-W0264
Bolt(For Front Suspension Lower Arm No.2 Rh)
[04.2014 - 05.2014] KGB10 |
90119-W0264 |
— | ||
|
48069
|
48069
48069-0H010 Arm Sub-Assy, Front Suspension, Lower No.1 LhFRONT SUSPENSION, LOWER NO.1 LH [02.2005 - 12.2008] KGB10,WNB10 |
48069-0H010 |
US $237.33 |
||
|
48069D
|
48069D
90119-W0111
Bolt(For Front Suspension Lower Arm No.1 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0111 |
— | ||
| replacement | |||||
|
48069D
|
48069D
90119-W0265
Bolt(For Front Suspension Lower Arm No.1 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0265 |
— | ||
|
48069D
|
48069D
90119-W0265
Bolt(For Front Suspension Lower Arm No.1 Rh)
[04.2014 - 05.2014] KGB10 |
90119-W0265 |
— | ||
|
48069H
|
48069H
90119-W0110
Bolt(For Front Suspension Lower Arm No.2 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0110 |
— | ||
| replacement | |||||
|
48069H
|
48069H
90119-W0264
Bolt(For Front Suspension Lower Arm No.2 Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90119-W0264 |
— | ||
|
48069H
|
48069H
90119-W0264
Bolt(For Front Suspension Lower Arm No.2 Rh)
[04.2014 - 05.2014] KGB10 |
90119-W0264 |
— | ||
|
9008011525
|
9008011525
90080-11525
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
90080-11525 |
— | ||
|
9046727072
|
9046727072
90467-27072 Ring, Set(For Tie Rod End Dust Seal) |
90467-27072 |
US $1.49 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.44 |
||
