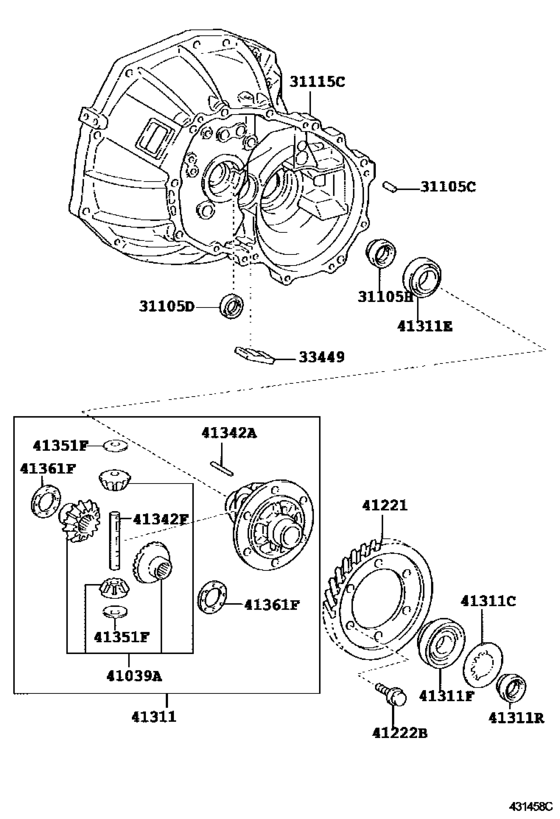

Front Axle Housing & Differential ([02.2005 - ] C551 (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105C
|
31105C
90250-W0001
Pin, Straight(For Transaxle Case)
[02.2005 - 12.2008] KGB10 |
90250-W0001 |
— | ||
|
31105D
|
31105D
90311-W0001
Seal, Oil, No.1(For Front Transaxle Case)
[02.2005 - 12.2008] KGB10,WNB10 |
90311-W0001 |
— | ||
|
31105H
|
31105H
90311-W0003
Seal, Oil, No.2(For Transaxle Case)
[02.2005 - 12.2008] KGB10,WNB10 |
90311-W0003 |
— | ||
| replacement | |||||
|
31105H
|
31105H
90311-W0015
Seal, Oil, No.2(For Transaxle Case)
[02.2005 - 12.2008] KGB10,WNB10 |
90311-W0015 |
— | ||
|
31105H
|
31105H
90311-W0015
Seal, Oil, No.2(For Transaxle Case)
[10.2011 - 02.2012] KGB10 |
90311-W0015 |
— | ||
|
31115C
|
31115C
31115-0H010
Case, Front Transaxle(Mtm)
[02.2005 - 12.2008] KGB10 |
31115-0H010 |
— | ||
|
33449
|
33449
33449-60010 Magnet, Transmission[02.2005 - 12.2008] KGB10; WNB10 |
33449-60010 |
from US $4.37 |
||
|
41039A
|
41039A
41039-0D010
Gear Kit, Differential
[02.2005 - 12.2008] KGB10 |
41039-0D010 |
— | ||
|
41221
|
41221
41221-0H010
Gear, Front Differential Ring
[02.2005 - 12.2008] KGB10 |
41221-0H010 |
— | ||
| replacement | |||||
|
41221
|
41221
41221-0H011
Gear, Front Differential Ring
[02.2005 - 12.2008] KGB10 |
41221-0H011 |
— | ||
|
41222B
|
41222B
90105-12313 Bolt (For Front Differential Ring Gear Set)[02.2005 - 12.2008] KGB10; WNB10 |
90105-12313 |
US $1.60 |
||
|
41311
|
41311
41311-0H901
Case, Front Differential
[02.2005 - 12.2008] KGB10; WNB10 |
41311-0H901 |
— | ||
| replacement | |||||
|
41311
|
41311
41311-0H902
Case, Front Differential
[02.2005 - 12.2008] KGB10; WNB10 |
41311-0H902 |
— | ||
|
41311
|
41311
41311-0H902
Case, Front Differential
[09.2009 - 02.2012] KGB10 |
41311-0H902 |
— | ||
|
41311C
|
41311C
90564-41065 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.10,MARK 01; WNB10 T=1.10,MARK 01 |
90564-41065 |
US $1.60 |
||
|
41311C
|
41311C
90564-41066 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.15,MARK 02; WNB10 T=1.15,MARK 02 |
90564-41066 |
US $1.60 |
||
|
41311C
|
41311C
90564-41067 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.20,MARK 03; WNB10 T=1.20,MARK 03 |
90564-41067 |
US $1.60 |
||
|
41311C
|
41311C
90564-41068 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.25,MARK 04; WNB10 T=1.25,MARK 04 |
90564-41068 |
US $2.48 |
||
|
41311C
|
41311C
90564-41069 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.30,MARK 05; WNB10 T=1.30,MARK 05 |
90564-41069 |
US $2.48 |
||
|
41311C
|
41311C
90564-41070 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.35,MARK 06; WNB10 T=1.35,MARK 06 |
90564-41070 |
US $2.48 |
||
|
41311C
|
41311C
90564-41071 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.40,MARK 07; WNB10 T=1.40,MARK 07 |
90564-41071 |
US $2.48 |
||
|
41311C
|
41311C
90564-41072 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.45,MARK 08; WNB10 T=1.45,MARK 08 |
90564-41072 |
US $2.48 |
||
|
41311C
|
41311C
90564-41073 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.50,MARK 09; WNB10 T=1.50,MARK 09 |
90564-41073 |
US $2.48 |
||
|
41311C
|
41311C
90564-41074 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.55,MARK 10; WNB10 T=1.55,MARK 10 |
90564-41074 |
US $2.48 |
||
|
41311C
|
41311C
90564-41075 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.60,MARK 11; WNB10 T=1.60,MARK 11 |
90564-41075 |
US $2.48 |
||
|
41311C
|
41311C
90564-41076 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.65,MARK 12; WNB10 T=1.65,MARK 12 |
90564-41076 |
US $2.48 |
||
|
41311C
|
41311C
90564-41077 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.70,MARK 13; WNB10 T=1.70,MARK 13 |
90564-41077 |
US $2.48 |
||
|
41311C
|
41311C
90564-41078 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.75,MARK 14; WNB10 T=1.75,MARK 14 |
90564-41078 |
US $3.20 |
||
|
41311C
|
41311C
90564-41079 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.80,MARK 15; WNB10 T=1.80,MARK 15 |
90564-41079 |
US $3.20 |
||
|
41311C
|
41311C
90564-41080 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.85,MARK 16; WNB10 T=1.85,MARK 16 |
90564-41080 |
US $3.20 |
||
|
41311C
|
41311C
90564-41081 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.90,MARK 17; WNB10 T=1.90,MARK 17 |
90564-41081 |
US $3.20 |
||
|
41311C
|
41311C
90564-41082 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=1.95,MARK 18; WNB10 T=1.95,MARK 18 |
90564-41082 |
US $3.20 |
||
|
41311C
|
41311C
90564-41083 Shim (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [02.2005 - 12.2008] KGB10 T=2.00,MARK 19; WNB10 T=2.00,MARK 19 |
90564-41083 |
US $3.20 |
||
|
41311E
|
41311E
90366-W0007
Bearing, Tapered Roller (For Front Differential Case Front)
[02.2005 - 12.2008] KGB10; WNB10 |
90366-W0007 |
— | ||
|
41311F
|
41311F
90080-36166
Bearing, Tapered Roller (For Front Differential Case Rear)
[02.2005 - 12.2008] KGB10; WNB10 |
90080-36166 |
— | ||
|
41311R
|
41311R
90311-W0004
Seal, Oil(For Transmission Case)
[02.2005 - 12.2008] KGB10,WNB10 |
90311-W0004 |
— | ||
| replacement | |||||
|
41311R
|
41311R
90311-W0016
Seal, Oil(For Transmission Case)
[02.2005 - 12.2008] KGB10,WNB10 |
90311-W0016 |
— | ||
|
41311R
|
41311R
90311-W0016
Seal, Oil(For Transmission Case)
[10.2011 - 02.2012] KGB10 |
90311-W0016 |
— | ||
|
41342A
|
41342A
90250-W0005
Pin, Straight (For Front Differential Pinion Shaft)
[02.2005 - 12.2008] KGB10; WNB10 |
90250-W0005 |
— | ||
|
41342F
|
41342F
41342-10041 Shaft, Front Differential Pinion, No.1[04.2014 -] KGB10 |
41342-10041 |
US $9.76 |
||
|
41342F
|
41342F
41342-70030
Shaft, Front Differential Pinion, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
41342-70030 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-10041 Shaft, Front Differential Pinion, No.1[02.2005 - 12.2008] KGB10,WNB10 |
41342-10041 |
US $9.76 |
||
|
41351F
|
41351F
41351-10030 Washer, Rear Differential Pinion Thrust[02.2005 - 12.2008] KGB10; WNB10 |
41351-10030 |
US $1.46 |
||
|
41361F
|
41361F
41361-70010
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.50; WNB10 T=0.50 |
41361-70010 |
— | ||
|
41361F
|
41361F
41361-70020
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.55; WNB10 T=0.55 |
41361-70020 |
— | ||
|
41361F
|
41361F
41361-70030
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.60; WNB10 T=0.60 |
41361-70030 |
— | ||
|
41361F
|
41361F
41361-70040
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.65; WNB10 T=0.65 |
41361-70040 |
— | ||
|
41361F
|
41361F
41361-70050
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.70; WNB10 T=0.70 |
41361-70050 |
— | ||
|
41361F
|
41361F
41361-70060
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.75; WNB10 T=0.75 |
41361-70060 |
— | ||
|
41361F
|
41361F
41361-70070
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.80; WNB10 T=0.80 |
41361-70070 |
— | ||
|
41361F
|
41361F
41361-70080
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.85; WNB10 T=0.85 |
41361-70080 |
— | ||
|
41361F
|
41361F
41361-70090
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.90; WNB10 T=0.90 |
41361-70090 |
— | ||
|
41361F
|
41361F
41361-70100
Washer, Front Differential Side Gear Thrust, No.1
[02.2005 - 12.2008] KGB10 T=0.95; WNB10 T=0.95 |
41361-70100 |
— | ||
