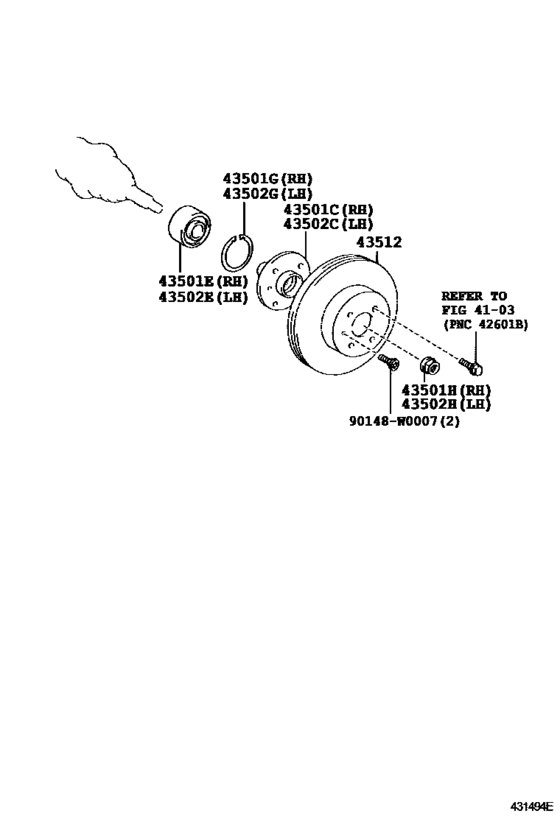

Front Axle Hub ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43511-0H010
Hub Sub-Assy, Front Axle, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
43511-0H010 |
— | ||
|
43501E
|
43501E
90369-W0001
Bearing (For Front Axle Hub Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90369-W0001 |
— | ||
|
43501G
|
43501G
90521-W0001
Ring, Hole Snap (For Front Axle Hub Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90521-W0001 |
— | ||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[12.2007 - 12.2008] KGB10,WNB10 |
90177-22001 |
from US $2.42 |
||
|
43501H
|
43501H
90177-W0001
Nut (For Front Axle Shaft Rh)
[02.2005 - 11.2006] KGB10,WNB10 |
90177-W0001 |
— | ||
| replacement | |||||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[02.2005 - 11.2006] KGB10,WNB10 |
90177-22001 |
from US $2.42 |
||
|
43501H
|
43501H
90177-W0003
Nut (For Front Axle Shaft Rh)
[12.2006 - 12.2007] KGB10,WNB10 |
90177-W0003 |
— | ||
| replacement | |||||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[12.2006 - 12.2007] KGB10,WNB10 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43511-0H010
Hub Sub-Assy, Front Axle, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
43511-0H010 |
— | ||
|
43502E
|
43502E
90369-W0001
Bearing (For Front Axle Hub Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90369-W0001 |
— | ||
|
43502G
|
43502G
90521-W0001
Ring, Hole Snap (For Front Axle Hub Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90521-W0001 |
— | ||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[12.2007 - 12.2008] KGB10,WNB10 |
90177-22001 |
from US $2.42 |
||
|
43502H
|
43502H
90177-W0001
Nut (For Front Axle Shaft Rh)
[02.2005 - 11.2006] KGB10,WNB10 |
90177-W0001 |
— | ||
| replacement | |||||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[02.2005 - 11.2006] KGB10,WNB10 |
90177-22001 |
from US $2.42 |
||
|
43502H
|
43502H
90177-W0003
Nut (For Front Axle Shaft Rh)
[12.2006 - 12.2007] KGB10,WNB10 |
90177-W0003 |
— | ||
| replacement | |||||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[12.2006 - 12.2007] KGB10,WNB10 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-0H010 Disc, FrontFRONT [02.2005 - 01.2007] KGB10,WNB10 |
43512-0H010 |
US $119.39 |
||
| replacement | |||||
|
43512
|
43512
43512-0H040
Disc, Front
[02.2005 - 01.2007] KGB10,WNB10 |
43512-0H040 |
— | ||
|
43512
|
43512
43512-0H020 Disc, FrontFRONT [01.2007 - 12.2008] KGB10,WNB10 |
43512-0H020 |
US $119.39 |
||
| replacement | |||||
|
43512
|
43512
43512-0H040
Disc, Front
[01.2007 - 12.2008] KGB10,WNB10 |
43512-0H040 |
— | ||
|
90148W0007
|
90148W0007
90148-W0007
New Genuine Part
|
90148-W0007 |
— | ||
