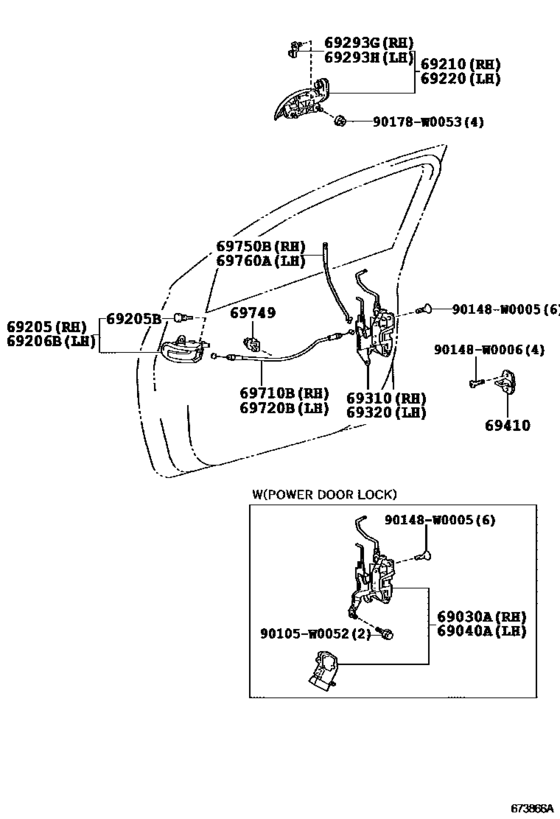

Front Door Lock & Handle ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-0H040
Lock Assy, Front Door W/motor, Rh
[02.2005 - 12.2008] KGB10,WNB10..LHD..3D..LV1; KGB10..LHD..3D..LEDIN POWER PACKAGE |
69030-0H040 |
— | ||
|
69040A
|
69040A
69040-0H040
Lock Assy, Front Door W/motor, Lh
[02.2005 - 12.2008] KGB10,WNB10..LHD..3D..LV1; KGB10..LHD..3D..LEDIN POWER PACKAGE |
69040-0H040 |
— | ||
|
69205
|
69205
69205-0D060-B2
Handle Sub-Assy, Front Door Inside, Rh
[02.2005 - 12.2008] KGB10,WNB10 MEDIUM GREY,TRIM1# |
69205-0D060-B2 |
— | ||
|
69205
|
69205
69205-0D060-B3
Handle Sub-Assy, Front Door Inside, Rh
[02.2012 - 05.2014] KGB10 DARK GREY,TRIM1# |
69205-0D060-B3 |
— | ||
|
69205B
|
69205B
90541-04027 Cushion(For Front Door Inside Handle)[02.2005 - 12.2008] KGB10,WNB10 |
90541-04027 |
from US $1.60 |
||
|
69206B
|
69206B
69206-0D060-B2
Handle Sub-Assy, Front Door Inside, Lh
[02.2005 - 12.2008] KGB10,WNB10 MEDIUM GREY,TRIM1# |
69206-0D060-B2 |
— | ||
|
69206B
|
69206B
69206-0D060-B3
Handle Sub-Assy, Front Door Inside, Lh
[02.2012 - 05.2014] KGB10 DARK GREY,TRIM1# |
69206-0D060-B3 |
— | ||
|
69210
|
69210
69210-0H010
Handle Assy, Front Door, Outside Rh
[02.2005 - 12.2008] KGB10..LEDIN BLACK |
69210-0H010 |
— | ||
|
69210
|
69210
69210-0H901
Handle Assy, Front Door, Outside Rh
[02.2012 -] KGB10..LV1; KGB10..LEDIN T IP+SP PACKAGE; KGB10..LEDIN T IP+SP+MIRROR+HANDLE PACKAGE |
69210-0H901 |
— | ||
|
69220
|
69220
69220-0H010
Handle Assy, Front Door Outside, Lh
[02.2005 - 12.2008] KGB10..LEDIN BLACK |
69220-0H010 |
— | ||
|
69220
|
69220
69220-0H901
Handle Assy, Front Door Outside, Lh
[02.2012 -] KGB10..LV1; KGB10..LEDIN T IP+SP PACKAGE; KGB10..LEDIN T IP+SP+MIRROR+HANDLE PACKAGE |
69220-0H901 |
— | ||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[02.2005 - 12.2008] KGB10,WNB10 |
69293-12030 |
from US $2.09 |
||
|
69293H
|
69293H
69293-12040 Snap, Front Door Outside Handle[02.2005 - 12.2008] KGB10,WNB10 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-0H030
Lock Assy, Front Door, Rh
[02.2005 - 12.2008] KGB10..3D..LEDIN |
69310-0H030 |
— | ||
|
69320
|
69320
69320-0H030
Lock Assy, Front Door, Lh
[02.2005 - 12.2008] KGB10..3D..LEDIN |
69320-0H030 |
— | ||
|
69410
|
69410
69410-0H010
Plate Assy, Front Door Lock Striker
[02.2005 - 12.2008] KGB10,WNB10 |
69410-0H010 |
— | ||
|
69710B
|
69710B
69710-0H020
Cable Assy, Front Door Lock Remote Control, Rh
[02.2005 - 12.2008] KGB10,WNB10..3D |
69710-0H020 |
— | ||
|
69720B
|
69720B
69710-0H020
Cable Assy, Front Door Lock Remote Control, Rh
[02.2005 - 12.2008] KGB10,WNB10..3D |
69710-0H020 |
— | ||
|
69749
|
69749
69749-52010 Clamp, Front Door Lock Link[02.2005 - 12.2008] KGB10,WNB10 |
69749-52010 |
US $0.55 |
||
|
69750B
|
69750B
69750-0H020-B0
Link Assy, Front Door Inside Locking, Rh
[02.2005 - 12.2008] KGB10,WNB10..3D MEDIUM GREY,TRIM1# |
69750-0H020-B0 |
— | ||
|
69750B
|
69750B
69750-0H020-B1
Link Assy, Front Door Inside Locking, Rh
[02.2012 - 05.2014] KGB10..3D DARK GREY,TRIM1# |
69750-0H020-B1 |
— | ||
|
69760A
|
69760A
69760-0H020-B0
Link Assy, Front Door Inside Locking, Lh
[02.2005 - 12.2008] KGB10,WNB10..3D MEDIUM GREY,TRIM1# |
69760-0H020-B0 |
— | ||
|
69760A
|
69760A
69760-0H020-B1
Link Assy, Front Door Inside Locking, Lh
[02.2012 - 05.2014] KGB10..3D DARK GREY,TRIM1# |
69760-0H020-B1 |
— | ||
|
90105W0052
|
90105W0052
90105-W0052
New Genuine Part
|
90105-W0052 |
— | ||
|
90148W0005
|
90148W0005
90148-W0005 New Genuine Part |
90148-W0005 |
US $0.73 |
||
|
90148W0006
|
90148W0006
90148-W0006
New Genuine Part
|
90148-W0006 |
— | ||
|
90178W0053
|
90178W0053
90178-W0053
New Genuine Part
|
90178-W0053 |
— |
