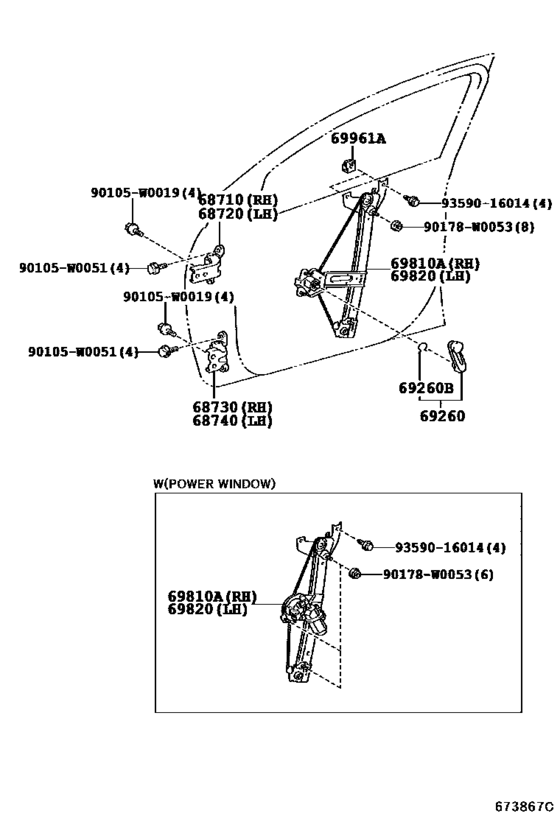

Front Door Window Regulator & Hinge ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-0H010
Hinge Assy, Front Door, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
68710-0H010 |
— | ||
|
68720
|
68720
68720-0H010
Hinge Assy, Front Door, Upper Lh
[02.2005 - 12.2008] KGB10,WNB10 |
68720-0H010 |
— | ||
|
68730
|
68730
68730-0H010
Hinge Assy, Front Door, Lower Rh
[02.2005 - 12.2008] KGB10,WNB10 |
68730-0H010 |
— | ||
|
68740
|
68740
68740-0H010
Hinge Assy, Front Door, Lower Lh
[02.2005 - 12.2008] KGB10,WNB10 |
68740-0H010 |
— | ||
|
69260
|
69260
69260-0D010-B5
Handle Assy, Front Door Window Regulator
[02.2005 - 12.2008] KGB10..LEDIN MEDIUM GREY,TRIM1#; KGB10..LHD..LEDIN POWER PACKAGE,MEDIUM GREY,TRIM1# |
69260-0D010-B5 |
— | ||
|
69260
|
69260
69260-0D010-B6
Handle Assy, Front Door Window Regulator
[02.2012 - 05.2014] KGB10..LEDIN DARK GREY,TRIM1#; KGB10..LEDIN POWER PACKAGE,DARK GREY,TRIM1# |
69260-0D010-B6 |
— | ||
|
69260B
|
69260B
90524-15005
Ring, Shaft Snap(For Front Door Window Regulator Handle)
[02.2005 - 12.2008] KGB10..LEDIN |
90524-15005 |
— | ||
|
69810A
|
69810A
69810-0H010
Regulator Assy, Front Door Window, Rh
[02.2005 - 12.2008] KGB10..LEDIN |
69810-0H010 |
— | ||
|
69810A
|
69810A
69810-0H020 Regulator Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [02.2005 - 12.2008] KGB10,WNB10..LV1; KGB10..LHD..LEDIN POWER PACKAGE |
69810-0H020 |
US $260.62 |
||
|
69820
|
69820
69820-0H010
Regulator Assy, Front Door Window, Lh
[02.2005 - 12.2008] KGB10..LEDIN |
69820-0H010 |
— | ||
|
69820
|
69820
69820-0H020
Regulator Assy, Front Door Window, Lh
[02.2005 - 12.2008] KGB10,WNB10..LV1; KGB10..LHD..LEDIN POWER PACKAGE |
69820-0H020 |
— | ||
|
69961A
|
69961A
69961-0H020
Retainer, Front Door Glass
[02.2005 - 12.2008] KGB10,WNB10 |
69961-0H020 |
— | ||
| replacement | |||||
|
69961A
|
69961A
69961-0H021
Retainer, Front Door Glass
[02.2005 - 12.2008] KGB10,WNB10 |
69961-0H021 |
— | ||
|
69961A
|
69961A
69961-0H021
Retainer, Front Door Glass
[04.2011 - 02.2012] KGB10 |
69961-0H021 |
— | ||
|
90105W0019
|
90105W0019
90105-W0019
New Genuine Part
|
90105-W0019 |
— | ||
|
90105W0051
|
90105W0051
90105-W0051
BOLT FLANGE
|
90105-W0051 |
— | ||
|
90178W0053
|
90178W0053
90178-W0053
New Genuine Part
|
90178-W0053 |
— | ||
|
9359016014
|
9359016014
93590-16014 New Genuine Part |
93590-16014 |
US $4.48 |
||
