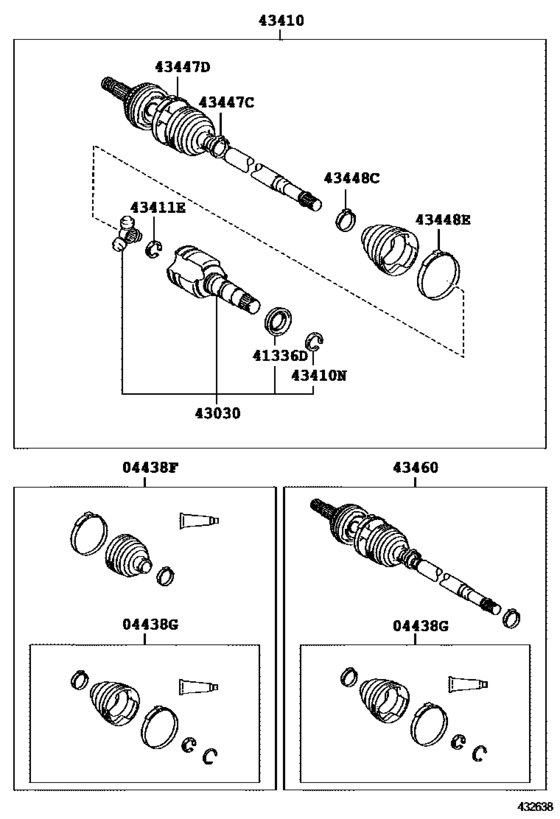

Front Drive Shaft ([02.2005 - ] RH (0502- )KGB10) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-0H010
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[02.2005 - 12.2008] KGB10 |
04427-0H010 |
— | ||
|
04438G
|
04438G
04437-0H011
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
04437-0H011 |
— | ||
|
41336D
|
41336D
41336-0H010
Cover, Front Drive Shaft Dust, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
41336-0H010 |
— | ||
|
43030
|
43030
43403-0H010
Joint Assy, Front Drive Inboard, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
43403-0H010 |
— | ||
|
43030
|
43030
43403-0H020
Joint Assy, Front Drive Inboard, Rh
[04.2013 -] KGB10 |
43403-0H020 |
— | ||
|
43410
|
43410
43410-0H010
Shaft Assy, Front Drive, Rh
[02.2005 - 12.2008] KGB10 |
43410-0H010 |
— | ||
|
43410
|
43410
43410-0H050
Shaft Assy, Front Drive, Rh
[04.2013 -] KGB10 |
43410-0H050 |
— | ||
|
43410N
|
43410N
43425-0H040
Ring, Hole Snap (For Front Drive Shaft Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
43425-0H040 |
— | ||
|
43411E
|
43411E
43425-0H010
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
43425-0H010 |
— | ||
|
43447C
|
43447C
42345-0H040
Clamp (For Front Axle Outboard Joint Boot Rh)
[02.2005 - 12.2008] KGB10 |
42345-0H040 |
— | ||
|
43447D
|
43447D
42345-0H030
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[02.2005 - 12.2008] KGB10 |
42345-0H030 |
— | ||
|
43448C
|
43448C
42345-0H020
Clamp (For Front Axle Inboard Joint Boot Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
42345-0H020 |
— | ||
|
43448E
|
43448E
42345-0H010
Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
42345-0H010 |
— | ||
|
43460
|
43460
43460-09C80
Shaft Assy, Front Drive Outboard Joint, Rh
[02.2005 - 12.2008] KGB10 |
43460-09C80 |
— | ||
|
43460
|
43460
43460-09X40
Shaft Assy, Front Drive Outboard Joint, Rh
[04.2013 -] KGB10 |
43460-09X40 |
— |
